Rada TL 195

Rada TL 195

Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Rada

Knee operated time flow control for use under basins.

Jump to:
+44 (0)844 571 1777 www.radacontrols.com
Description

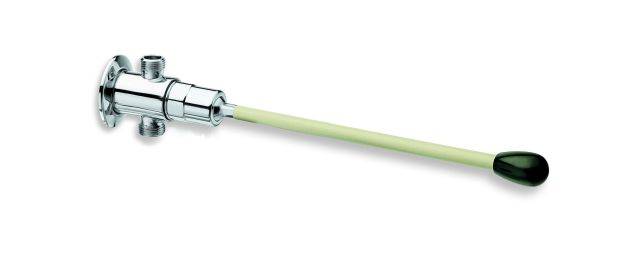

A non-concussive, timed flow knee operated tap with extruded nylon lever control and flow adjustment. The tap is designed to give approximately 12 seconds of flow duration when the button is pressed and released and the lever can be deflected in any direction to activate flow. The internal time flow cartridge provides a choice of five flow settings to give the most economical flow rate over the pressure range available.

Features:

  • Easy servicing - one piece cartridge.
  • Energy and water saving - adjustable flow.
  • Non-concussive action.
  • Robust design.

General information
Features

One piece cartridge, 5 flow settings

Finish

Chrome

Size

0.0

WarrantyDescription

Two years parts and labour as standard; Extended to five years parts and labour if commissioned by Rada. UK only

Uniclass 2015
Pr_40_20_87_99 Washbasin thermostatic water supply setsPrimary
CAWS

N13/30 Washbasins

N13/335 Washbasins

N13/341 Vanity tops with formed washbasins

N13/346 Washing troughs

Specification data - Washbasin thermostatic water supply sets
Product Reference

Rada TL 195 Knee Operated Timed Flow Tap (2.1762.094)

Standard product features

Material:

  • Body: Chrome plated brass.
  • Lever: Extruded nylon.

Connection:

Inlet/ outlet: 15 mm compression fittings.

Pressures:

  • Operational pressure (minimum/ maximum): 0.2/ 5 bar.
  • Static pressure (maximum): 10 bar.

Temperature range:

80°C maximum water temperature. For safety reasons it is recommended that the hot maximum temperature used for hand washing be pre-set at 40°C using a Rada/ Meynell Thermostatic Mixing Valve. Consult manufacturer's literature for more information.

Time flow cartridge:

Factory set in the mid-restriction position.

Digital objects
PlatformCompatibleVersionCertified to
AECOsim
- 1.0
Revit
Revit 2016 4 1.3
IFC
- 5 1.3
Download now from NBS National BIM Library
Literature
Third party certifications
  • Water Regulations Advisory Scheme (WRAS) approved
