Rada TF 31/3

Rada TF 31/3

Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Rada

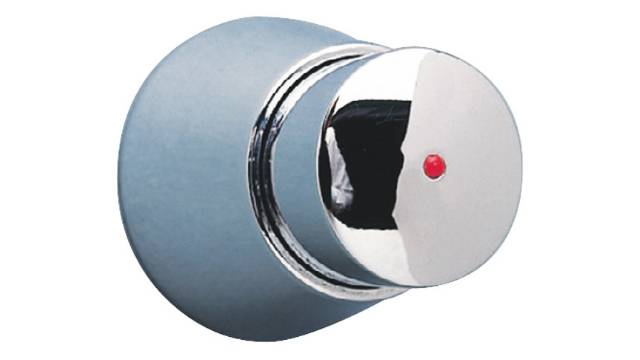

1/2" push-button flow control for duct mounting with 30 second timed flow complete with extended rod option for extra security and wall thickness 206-246mm.

Jump to:
+44 (0)844 571 1777 www.radacontrols.com
Description

½" push button flow control designed for duct mounting and available in three lengths to suit varying wall thickness.

Units have a 30 second timed flow and internal flow adjuster.

The range is specially designed for use in prison applications.

General information
Color

Chrome

Features

Water saving; Vandal resistant; Minimal maintenance; Easy to use - push-button controls; Specially designed for prison applications

Finish

Chrome

Material

Push Button: Chrome plated brass

Size

15.0

15

WarrantyDescription

Two years parts and labour as standard; Extended to five years parts and labour if commissioned by Rada. UK only

Uniclass 2015
Pr_40_20_87_81 Shower thermostatic water supply setsPrimary
CAWS

N13/375 Shower units

N13/40 Shower units

Specification data - Shower thermostatic water supply sets
Product Reference

Rada TF31/1 Timed Flow Control (1.0.095.01.1)

Rada TF31/2 Timed Flow Control (1.0.095.02.1)

Rada TF31/3 Timed Flow Control (1.0.095.03.1)

Standard product features

Models:

  • Rada 31/1: Overall length 340 mm for wall thickness 100 - 140 mm.
  • Rada 31/2: Overall length 380 mm for wall thickness 142 - 182 mm.
  • Rada 31/3: Overall length 445 mm for wall thickness 206 - 246 mm.

Connections:

  • All models have 15 mm compression fittings.
  • Alternatively a ¾" BSP male thread is available by removing the compression nuts.

Operation:

  • The flow cycle is activated by pressing the flow button.
  • The flow rate is constant and is automatically turned off after a period of approximately 30 seconds.

Pressure/ Flow rate:

Maximum static pressure: 7.0 bar.

Materials:

Body: Copper alloy.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2016 1 1.3
IFC
- 1 1.3
Download now from NBS National BIM Library
Third party certifications
  • Water Regulations Advisory Scheme (WRAS) approved
