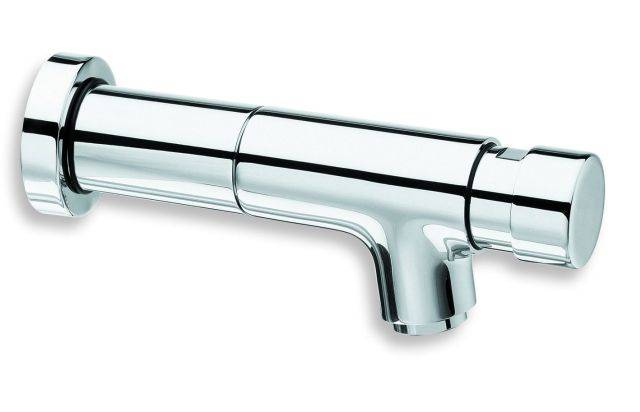

Rada T2 145 Timed BIB Tap - Extended

Third party certifications:

QA Certificate
Certificate type

A non-concussive, extended timed flow bib tap.

Jump to:

Description

A non-concussive, extended timed flow bib tap with flow adjustment. The tap is designed to give approximately 12 seconds of flow duration when the button is pressed and released. The internal time flow cartridge provides a choice of five flow settings to give the most economical flow rate over the pressure range available.

Features:

Contemporary yet robust design.

Easy servicing - one piece cartridge.

Energy and water saving - adjustable flow.

Non-concussive action.

General information

Features	Contemporary yet robust design Easy servicing - one piece cartridge Energy and water saving - adjustable flow Non-concussive action
Material	Body and push button: Chrome plated brass

Uniclass 2015	Pr_40_20_87_99 Washbasin thermostatic water supply sets Primary
CAWS	N13/30 Washbasins N13/335 Washbasins N13/341 Vanity tops with formed washbasins N13/346 Washing troughs

Specification data - Washbasin thermostatic water supply sets

Product Reference	Rada T2 145 Timed BIB Tap Cold - Extended (2.1762.069) Rada T2 145 Timed BIB Tap Hot - Extended (2.1762.068)

Standard product features	Material: Body and push button: Chrome plated brass. Connection: Inlet: ½” BSP male parallel thread (to BS 2779). Pressures: Operational pressure (minimum/ maximum): 0.2/ 5 bar. Static pressure (maximum): 10 bar. Temperature range: 80°C maximum water temperature. For safety reasons it is recommended that the hot maximum temperature used for hand washing be pre-set at 40°C using a Rada/ Meynell Thermostatic Mixing Valve. Consult manufacturer's literature for more information. Time flow cartridge: Factory set in the mid-restriction position.
