Rada T2 100 Timed Flow Pillar Tap

Third party certifications:
  • QA Certificate

    Certificate type

Rada

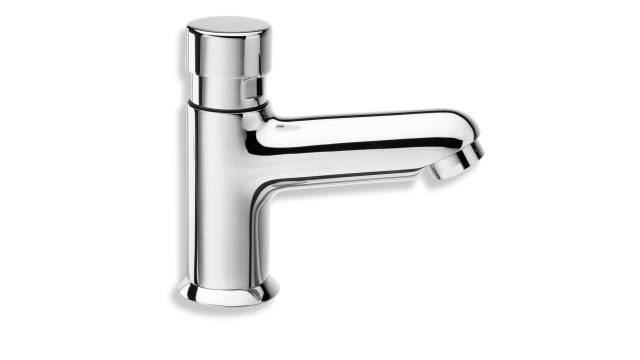

Basin mounted push button tap with 12 (±3) seconds time flow for use on basins or counter tops.

Jump to:
+44 (0)844 571 1777 www.radacontrols.com
Description

A non-concussive timed flow basin mounted tap with flow adjustment. The tap is designed to give approximately 12 seconds of flow duration when the button is pressed and released. The internal time flow cartridge provides a choice of five flow settings to give the most economical flow rate over the pressure range available.

Features:

  • Contemporary yet robust design.
  • Easy servicing - one piece cartridge.
  • Energy and water saving - adjustable flow.
  • Non-concussive action.

General information
Color

Chrome

Features

Contemporary yet robust design; Energy and water saving - adjustable flow; Easy servicing - one piece cartridge; Non-concussive action; Fits standard washbasins and tap hole

Finish

Polished

Material

Body: Chrome plated brass, Push Button: Chrome plated brass

Size

12.7

WarrantyDescription

Two years parts and labour as standard; Extended to five years parts and labour if commissioned by Rada. UK only

Uniclass 2015
Pr_40_20_87_99 Washbasin thermostatic water supply setsPrimary
Specification data - Washbasin thermostatic water supply sets
Product Reference

Rada T2 100 Timed Flow Pillar Tap Cold (2.1762.065)

Rada T2 100 Timed Flow Pillar Tap Hot (2.1762.064)

Standard product features

Material:

Body and push button: Chrome plated brass.

Connection:

Inlet: ½” BSP male parallel thread (to BS 2779), suitable for standard end feed tap connector.

Pressures:

  • Operational pressure (minimum/ maximum): 0.2/ 5 bar.
  • Static pressure (maximum): 10 bar.

Temperature range:

80°C maximum water temperature. For safety reasons it is recommended that the hot maximum temperature used for hand washing be pre-set at 40°C using a Rada/ Meynell Thermostatic Mixing Valve. Consult manufacturer's literature for more information.

Time flow cartridge:

Factory set in the mid-restriction position.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2016 1 1.3
IFC
- 1 1.3
Download now from NBS National BIM Library
Literature
Third party certifications
  • Water Regulations Advisory Scheme (WRAS) approved
