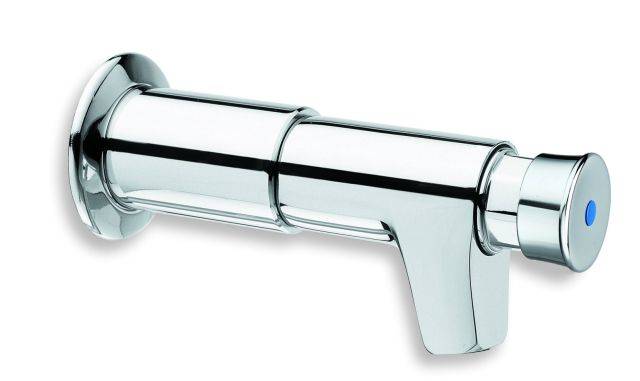

Rada T1 145 Timed Flow Bib Tap

Third party certifications:
  • QA Certificate

    Certificate type

Rada

A non-concussive, extended timed flow bib tap.

Jump to:
+44 (0)844 571 1777 www.radacontrols.com
Description

A non-concussive, extended timed flow bib tap with vandal resistant non-removable flow straightener and adjustable flow. The tap is designed to give approximately 12 seconds of flow duration when the button is pressed and released. The internal time flow cartridge provides a choice of five flow settings to give the most economical flow rate over the pressure range available.

Features:

  • Easy servicing - one piece cartridge.
  • Energy and water saving - adjustable flow.
  • Non-concussive action.
  • Robust design.
  • Vandal resistant control knob.
  • Vandal resistant non-removable flow straightener.

General information
Features

Easy servicing - one piece cartridge

Energy and water saving - adjustable flow

Non-concussive action

Robust design

Vandal resistant control knob

Vandal resistant non-removable flow straightener

Material

Body and push button: Chrome plated brass

Uniclass 2015
Pr_40_20_87_99 Washbasin thermostatic water supply setsPrimary
Specification data - Washbasin thermostatic water supply sets
Product Reference

Rada T1 145 Timed Flow Bib Tap (2.1762.058)

Standard product features

Material:

Body and push button: Chrome plated brass.

Connection:

Inlet: ½” BSP male parallel thread (to BS 2779).

Pressures:

  • Operational pressure (minimum/ maximum): 0.2/ 5 bar.
  • Static pressure (maximum): 10 bar.

Temperature range:

80°C maximum water temperature. For safety reasons it is recommended that the hot maximum temperature used for hand washing be pre-set at 40°C using a Rada/ Meynell Thermostatic Mixing Valve. Consult manufacturer's literature for more information.

Time flow cartridge:

Factory set in the mid-restriction position.

Literature
Third party certifications
  • Water Regulations Advisory Scheme (WRAS) approved
