Rada Sense - Shower T3

Verified by manufacturer 2 months ago

Rada Shower T3: 1.1503.682

Rada Variant:
Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

  • BSI Kitemark

    BSI Kitemark

    Certificate type

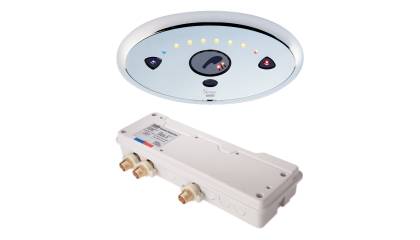

Concealed digital mixing valve for showers.

Jump to:
+44 (0)344 571 1777 www.radacontrols.com

Description

A digital mixing valve offering programmable, maximum, minimum and default temperatures, duty flush and thermal disinfection with data logging capabilities.


Features and benefits:

  • No-touch on/off and temperature control.
  • Programmable flow times and temperatures.
  • Programmable ‘duty flushing’.
  • Thermal disinfection with data logging.
  • Valve information and usage data.
  • Incorporates T-logic digital intelligence.


General information

Color

Silver

Finish

Chrome

Material

Brass

Integral component DZR brass.

Stainless steel

Integral component.

Plastic

PC/ ABS (mixing unit enclosure), engineering plastic (integral components) and chrome plated ABS (control panel cover).

Length

19 mm

WarrantyDescription

Two years parts and labour as standard; extended to five years parts and labour if commissioned by Rada. UK only.


-

Uniclass

Pr_40_20_87_81 Shower thermostatic water supply setsPrimary

CAWS

N13/375 Shower units

N13/40 Shower units

Product range

Sports and Leisure
Healthcare
Education
Secure
Student Accommodation
Washrooms

Specification data - Shower thermostatic water supply sets

Approvals

Water Regulations Advisory Scheme (WRAS) approved.

Standards

To BS 7942, BS EN 1111 and BS EN 1287.

Form

Thermostatic mixing valve.

Materials

-

Body

Brass.

  • Mixing unit enclosure: PC/ABS.
  • Integral components: DZR brass, stainless steel and engineering plastic.


Finish and colour

Chrome plated.

Flow rate (maximum)

8 L/min at 5 bar.

>5 bar: maintained pressure 8 litres/minute.

Type

Concealed digital mixing valve, with a wall mounted control panel.

A concealed digital mixing valve for showers, supplied complete with programmable software, power supply, check valves and strainers.

The system incorporates a wall mounted control panel offering infra-red 'no-touch' controls for flow and temperature adjustment and programmable timed flow control.

Rating

Ingress protection rating.

IP24, IP45 and IP47.

  • Control panel: IP47,
  • Overall valve enclosure: IP24.

Flowrate

6 L/min at 5 bar.

Minimum flow rate: <5 bar: maintained pressure 6 litres/minute.

NominalStaticPressure

10 bar.

Maximum.

Pressure

3:1.

Hot and cold pressure should be nominally equal. (Maximum differential either way 3:1).

Operation

Flow control.

  • Temperature selector: Full 'no-touch' temperature control.
  • Flow control: No-touch on/off.


A Pocket PC is required to adjust factory settings, retrieve data, configure duty flush and disinfection cycles. The programmer software supplied is designed to run on Microsoft Pocket PC 2002 and Microsoft Windows Mobile (for pocket PC's).

NominalPressureDrop

0.2 bar.

Minimum pressure loss.

NominalSupplyVoltage

100–40V RMS 50–60Hz.

Load (maximum)

20W at 12 V d.c.

TemperatureRange

Optimum thermostatic control range.

30–50°C.

  • Factory pre-set minimum temperature: 30ºC.
  • Factory pre-set maximum temperature: 41ºC.
  • Default temperature: 38ºC.
  • Minimum blend temperature differential from hot supply: 2ºC.
  • Optimum thermostatic control range: 30ºC to 50ºC.
  • Cold water range: 1ºC to 20ºC.
  • Hot water range: 50ºC to 65ºC (85ºC during disinfection).


Programmable Temperature Range:

  • Minimum temperature: 30ºC to 47ºC.
  • Maximum temperature:35ºC to 50ºC.
  • Default temperature: 30ºC to 50ºC.


Ambient temperature

1–40°C.

RelativeHumidity

Maximum.

95%.

Non-condensing.

Environmental information

Country of product manufacture

United Kingdom

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2016

1

1.3
AECOsim
-

1.0

1.0

IFC
-

1

1.3
Download now from NBS National BIM Library

Literature

Rada Healthcare Product Selector

Rada Healthcare Product Selector

Rada Product Selector - Commercial Washroom Controls

Rada Product Selector - Commercial Washroom Controls

Third party certifications

  • BEAB approved
  • BS 7942 : For high and low pressure washbasins
  • BS EN 1111
  • BS EN 1287
  • Buildcert: Certificate - BC 100/0205 : Buildcert TMV3 Thermostatic Mixing Valve Scheme approved
  • Buildcert: Certificate - BC 101/0205 : Buildcert TMV2 Thermostatic Mixing Valve Scheme approved
  • Designed to IEC 61508
  • Water Regulations Advisory Scheme (WRAS) approved
