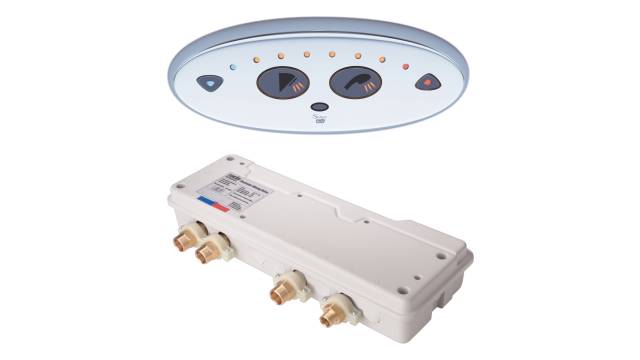

Rada Sense Dual Shower T3

Verified by manufacturer 7 months ago

Rada Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Concealed digital mixing valve

Jump to:
BIM object icon
+44 (0)344 571 1777 Website

Application

For dual shower.

Description

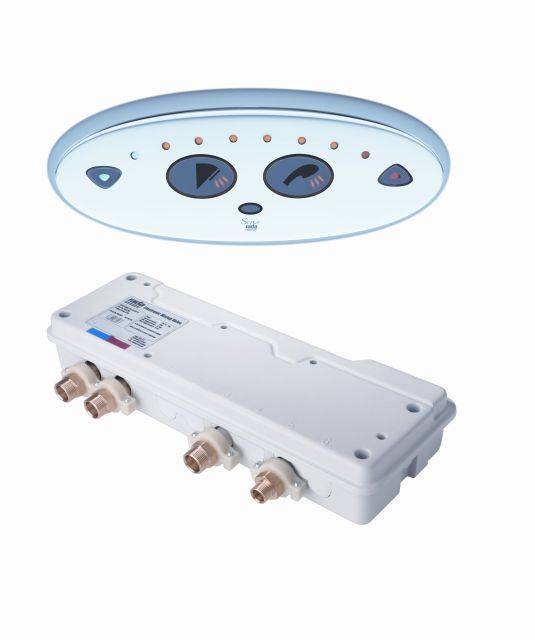

Concealed digital mixing valve.


Features and benefits:

  • Programmable maximum, minimum and default temperatures, duty flush and thermal disinfection with data logging capabilities.
  • Supplied complete with programmable software, power supply, check valves and strainers.
  • Wall-mounted, oval-shaped control panel offers infra-red no-touch controls for flow and temperature adjustment and programmable timed flow control.
  • Incorporates T-logic™ digital intelligence, allowing the user to operate, communicate and exchange information with the mixing valve to achieve safety, hygiene and control.
  • WRAS approved.
  • BEAB approved.

General information

Color

Silver

Shape

Oval

WarrantyDescription

Two year

warranty on parts and labour as standard.

Five year

Extended to five-year warranty on parts and labour if commissioned by Rada. UK only

Uniclass

Pr_40_20_87_81 Shower thermostatic water supply setsPrimary

CAWS

N13/375 Shower units

N13/40 Shower units

Product range

Sports and Leisure
Healthcare
Education

Specification data - Shower thermostatic water supply sets

Approvals

Water Regulations Advisory Scheme (WRAS) approved, BEAB and Buildcert TMV3 Thermostatic Mixing Valve Scheme approved.

Product Reference

Rada Sense Dual Shower T3

Connection

Inlet: 0.75" BSP male; Outlet: 0.5" BSP male.

Nominal voltage

100–240 V.

Frequency

50–60 Hz.

Ingress protection

IP24.

  • Control panel: IP47.
  • Electronics compartment: IP45.
  • PSU: IP45.

Control panel

304 x 120 x 26 mm.

Mixer valve

511 x 188 x 86 mm.

Environmental information

Country of product manufacture

United Kingdom

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit

Revit 2016

1

Literature

Rada Healthcare Product Selector

Rada Healthcare Product Selector

Rada Product Selector - Commercial Washroom Controls

Rada Product Selector - Commercial Washroom Controls

Third party certifications

  • BEAB
  • Buildcert TMV3 Thermostatic Mixing Valve Scheme approved: BC 100/0205
  • WRAS (Water Regulations Advisory Scheme)
