Rada Sense - Bath Kit T3

Rada Sense - Bath Kit T3

Rada Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

  • BSI Kitemark

    BSI Kitemark

    Certificate type

Concealed digital mixing valve for baths.

Jump to:
+44 (0)844 571 1777 www.radacontrols.com

Description

A digital mixing valve offering programmable, maximum, minimum and default temperatures, duty flush and thermal disinfection with data logging capabilities.

General information

Finish

Chrome

Size

0.0

Features

ƒNo-touch on/off and temperature control, programmable flow times and temperatures, programmable ‘duty flushing’, ƒƒthermal disinfection with data logging, ƒƒvalve information and usage data, ƒƒIncorporates T-logic™ digital intelligence

Material

Chrome plated ABS control panel cover, PC/ABS mixing unit enclosure, DZR brass integral components

Uniclass 2015

Pr_65_54_95_88 Thermostatic mixing valvesPrimary

CAWS

N13/35 Baths

N13/355 Baths

Specification data - Thermostatic mixing valves

Product Reference

Rada Bath T3 (1.1503.698)

Rada Bath Kit T3 (1.1503.722)

Standard product features

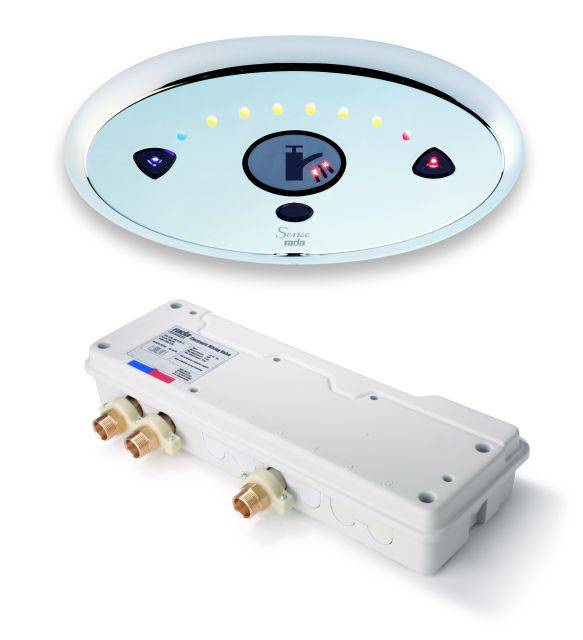

Bath T3:

A concealed digital mixing valve for baths, supplied complete with programmable software, power supply, check valves and strainers.

The system incorporates a wall mounted control panel offering infra-red 'no-touch' controls for flow and temperature adjustment and programmable timed flow control.

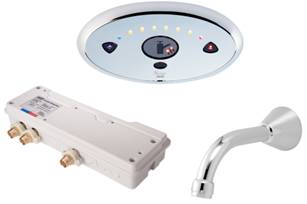

Bath Kit T3:

Specification as above but with wall mounted bath spout with 150 mm throw.

Operation:

  • Temperature selector: Full 'no-touch' temperature control.
  • Flow control: No-touch on/off.

A Pocket PC is required to adjust factory settings, retrieve data, configure duty flush and disinfection cycles. The programmer software supplied is designed to run on Microsoft Pocket PC 2002 and Microsoft Windows Mobile (for pocket PC's).

Materials:

  • Control panel cover: Chrome plated ABS.
  • Mixing unit enclosure: PC/ABS.
  • Integral components: DZR brass, stainless steel and engineering plastic.

Temperature range:

  • Factory pre-set Minimum temperature: 30°C.
  • Factory pre-set maximum temperature: 44°C.
  • Default temperature: 40°C.
  • Minimum blend temperature differential from hot supply: 2°C.
  • Optimum thermostatic control range: 30°C to 50°C.
  • Cold water range: 1°C to 20°C.
  • Hot water range: 50°C to 65°C (85°C during disinfection).

Programmable temperature range:

  • Minimum temperature: 30°C to 47°C.
  • Maximum temperature: 33°C to 50°C.
  • Default temperature: 30°C to 50°C.

Pressure:

  • Minimum static pressure: 10 bar.
  • Minimum pressure loss: 0.2 bar.
  • Hot and cold pressure should be nominally equal. (Maximum differential either way 3:1).

Flow rate:

  • Minimum flow rate: 9 litres/minute.

Environment:

  • Ambient temperature: 1°C to 40°C.
  • Maximum relative humidity: 95% non-condensing.

IP rating:

  • Control panel: IP47.
  • Overall valve enclosure: IP24.
  • Electronics compartment: IP45.
  • PSU: IP45.

Electrical:

  • Supply voltage: 100-240V RMS 50-60Hz.
  • Maximum load: 20W at 12V DC.

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

3

1.3
Revit

Revit 2015

3

1.3
AECOsim
-

1.0

1.0

Download now from NBS National BIM Library

Literature

Rada Healthcare Product Selector

Rada Healthcare Product Selector

Rada Product Selector - Commercial Washroom Controls

Rada Product Selector - Commercial Washroom Controls

Third party certifications

  • BEAB approved
  • BS 7942 : For high and low pressure washbasins
  • BS EN 1111
  • BS EN 1287
  • Buildcert: Certificate - BC 100/0205 : Buildcert TMV3 Thermostatic Mixing Valve Scheme approved
  • Buildcert: Certificate - BC 101/0205 : Buildcert TMV2 Thermostatic Mixing Valve Scheme approved
  • Designed to IEC 61508
  • Water Regulations Advisory Scheme (WRAS) approved
