Rada Pulse 129 Operating System

Verified by manufacturer 6 days ago

Rada Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Operating system.

Jump to:
BIM object icon
+44 (0)344 571 1777 Website

Application

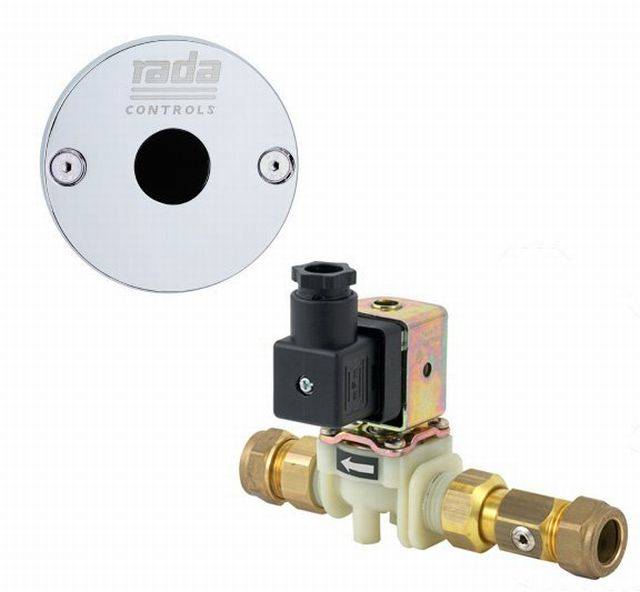

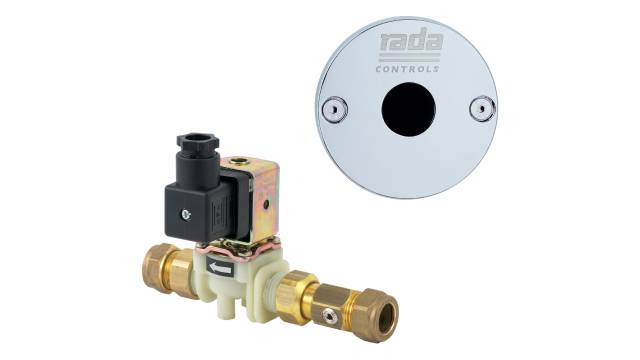

For the control of water to a single shower or hand washbasin. Use with Rada Pulse Control Box System.

Description

Water-control operating system.


Features and benefits:

  • Hygienic 'no-touch' infra red sensor.
  • Incorporates a solenoid valve.

General information

Color

Silver

Finish

Chrome

Material

Metal

With shatterproof plastic sensing window.

Polyamide

Length

22 mm

Width

84 mm

Height

84 mm

WarrantyDescription

Two-year warranty on parts and labour as standard; Extended to five-year warranty on parts and labour if commissioned by Rada. UK only.

-

Uniclass

Pr_40_20_87_81 Shower thermostatic water supply setsPrimary

Product range

Sports and Leisure
Education
Secure
Student Accommodation
Washrooms

Specification data - Shower thermostatic water supply sets

Materials

-

Body

Metal; fbreglass polyamide.

Finish and colour

Chrome.

Accessories

Not required.

Rada Pulse control box.

Rada Pulse hand held programmer.

Ingress protection (IP) rating

IP65.

Operation

Occupancy sensor.

  • When the sensor is activated, a signal is sent to the Rada Pulse control box, which in turn energises the solenoid valve, allowing water to flow to the outlet.
  • The duration of the flow for each outlet can be individually pre-set, via the control box and programmer.
  • The sensor can also be used to switch off the water supply before the pre-set time.
  • The solenoid valve is supplied complete with an integral isolator and filter.


Controller

Surface mounted.

Bar

0.20–10 bar.

Solenoid valve.

NominalSupplyVoltage

2 V a.c. + 10% 50/60Hz, via Rada Pulse control box.

Environmental information

Country of product manufacture

United Kingdom

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit

Revit 2016

1

Third party certifications

  • CE approved
  • Water Regulations Advisory Scheme (WRAS) approved
