Rada Pulse 126 Operating System

Verified by manufacturer 3 months ago

Rada

Water-control operating system.

Jump to:
BIM object icon
+44 (0)344 571 1777 Website

Application

For group urinal flushing. Used with Rada Pulse Control Box System.

Description

Water-control operating system.


Features and benefits:

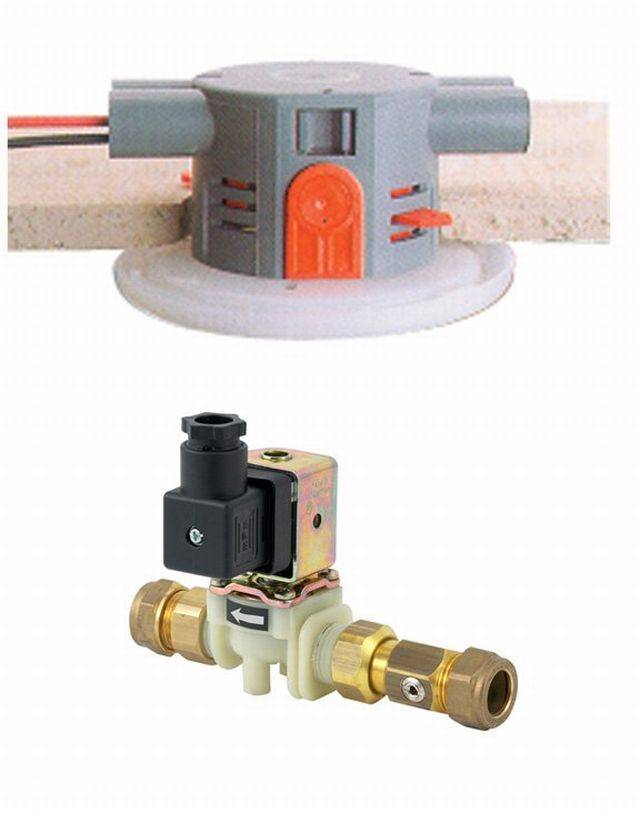

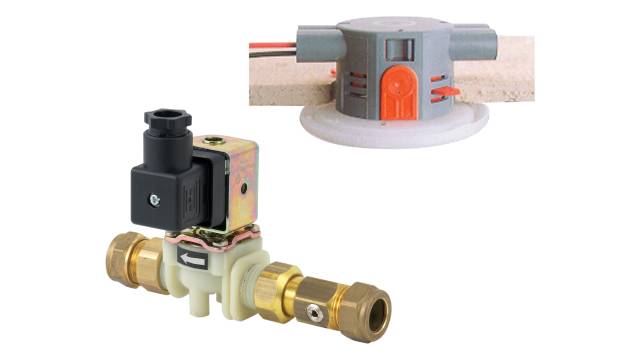

  • Hygienic 'no-touch' infra red sensor.
  • Incorporates a solenoid valve.
  • The duration of the flow for each outlet can be individually pre-set, via the control box and programmer.
  • The solenoid valve is supplied complete with an integral isolator and filter.

General information

Color

White

Material

Acrylonitrile butadiene styrene (ABS)

Ceiling mounted sensor cover

Polycarbonate

Ceiling mounted sensor

Polyamide

Length

55 mm

Width

128 mm

Height

128 mm

Warranty description

Two-year warranty on parts and labour as standard; Extended to five-year warranty on parts and labour if commissioned by Rada. UK only.

-

Uniclass

Pr_75_50_46_31 Flush control devicesPrimary

Product range

Sports and Leisure
Education
Secure
Student Accommodation
Washrooms

Specification data - Flush control devices

Operation

Occupancy sensor.

  • When the sensor is activated the Rada Pulse control box waits for a period of inactivity before energising the solenoid valve, allowing water to flow to the outlet.
  • The duration of the flow for each outlet can be pre-set, via the control box and programmer.
  • The solenoid valve is supplied complete with an integral isolator and filter.


Controller

Surface mounted.

Accessories

Not required.

Rada Pulse control box.

Rada Pulse hand held programmer.

Ambient temperature

0–40°C.

Maximum humidity 80%.


Ingress protection (IP) rating

IP55.

Bar

0.20–10 bar.

NominalSupplyVoltage

12 V a.c. + 10% 50/60Hz, via Rada Pulse control box.

Sustainability data

Country of product manufacture

United Kingdom

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit

Revit 2016
