Rada Pulse 125 Operating System

Rada Pulse 125 Operating System

Rada Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Operating system for individual urinal flushing for use with Rada Pulse Control Box System, featuring ceiling mounted non-touch sensor and solenoid valve.

Jump to:
+44 (0)844 571 1777 www.radacontrols.com

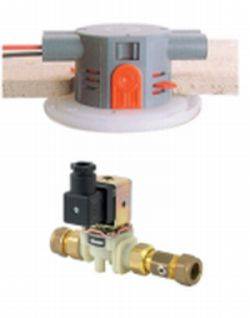

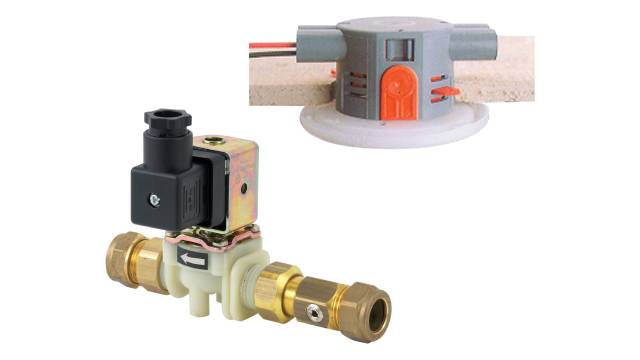

Pulse 125 is an operating system for the control of water to a single urinal bowl, incorporating a ceiling mounted 'no-touch' sensor and a solenoid valve.

The system is designed for use with the Pulse control box and hand held programmer.

General information




Hygienic ceiling mounted infra-red sensor suitable for a single urinal control


Base: ABS, Cover: Polycarbonate


128 x 128 x 55 mm


Two years parts and labour as standard; Extended to five years parts and labour if commissioned by Rada. UK only

Uniclass 2015

Pr_75_50_46_31 Flush control devicesPrimary


N13/15 Urinals and cisterns

N13/315 Urinals and auto-flushing cisterns

N13/316 Urinals and flushing valves

S90/690 Flush control devices

S90/690 Flush control devices

Specification data - Flush control devices

Product Reference

Rada Pulse 125 Operating System (1.1495.066)


Rada Pulse control box

Rada Pulse hand held programmer

Standard product features


  • When the sensor is activated, a signal is sent to the Rada Pulse control box, which may provide a pre-flush (where required).
  • The control box then waits for a period of inactivity before operating the solenoid valve, allowing water to flow to the outlet.
  • The duration of the flow for each outlet can be individually pre-set, via the control box and programmer.
  • The solenoid valve is supplied complete with an integral isolator and filter.

Sensor range:

  • Minimum: 0.50 m.
  • Maximum: 2.5 m.


  • Ceiling mounted sensor: ABS cover - polycarbonate.
  • Solenoid valve: Fibreglass polyamide body.


Solenoid valve: 0.20 - 10 bar.


  • Sensor protection class: IP55.
  • Supply voltage: 12V AC + 10% 50/60Hz, via Rada Pulse control box.

Temperature range:

  • Operating ambient temperature range: 0–40°C.
  • Maximum humidity 80%.


  • Rada Pulse control box.
  • Rada Pulse hand held programmer.

Digital objects

Platform Compatible Version Certified to

Revit 2016


Download now from NBS National BIM Library

Third party certifications

  • CE approved
  • Water Regulations Advisory Scheme (WRAS) approved
