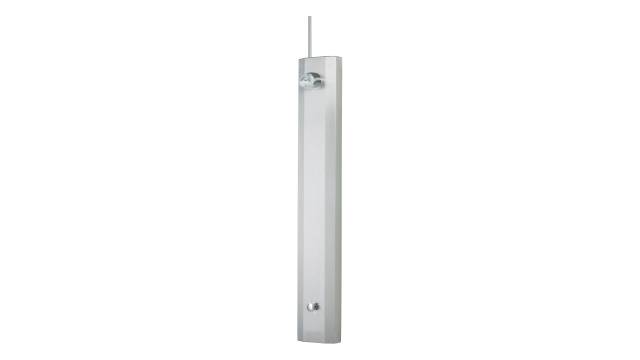

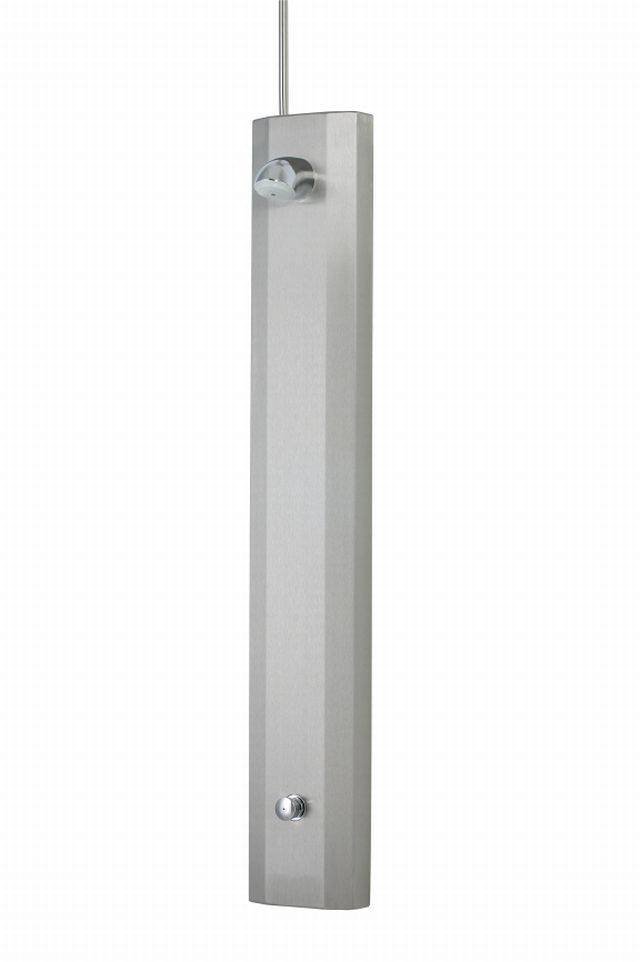

Rada PA - TF Shower Panel Assembly
Verified by manufacturer 3 months ago

Third party certifications:

QA Certificate
Certificate type

Ready to install pre-plumbed shower panel with satin stainless finish.

Jump to:

Description

A pre-plumbed shower panel with single pipe entry, for connection to pre-blended water supply. Units incorporate a Rada TF503 push button timed flow control and Rada VR105 vandal resistant chrome plated shower head with integral strainer and flow regulator. Options include an adjustable spray angle.

Features and benefits:

Concealed pipe-work which protects users from high surface temperatures.
Long, sleek design – suitable for all ages and abilities.
Robust and durable materials used throughout.
Easy to install and maintain - Integral isolator and flexible connection provided.
Satin stainless steel finish.
Product designed to reduce water consumption.

Operation:

The flow cycle is activated by pressing the flow button.
The flow rate is constant and is automatically turned off after approximately 30 seconds.
Further economy of water usage can be achieved by means of an internal flow rate adjuster.

General information

Finish	Satin
Material	Stainless steel
Shape	Rectangle
Size	(h x w x d)
Length	156 mm
Width	192 mm
Height	1217 mm
WarrantyDescription	Two year Two years parts and labour as standard. Five year Extended to five years parts and labour if commissioned by Rada. UK only.

Uniclass	Pr_40_20_87_75 Shower fittings packagePrimary
CAWS	N13/375 Shower units N13/40 Shower units

Product range	Sports and Leisure Education Secure Student Accommodation Washrooms

Specification data - Shower fittings package

Form	Pre-plumbed shower panel, thermostatic mixing valve, Rada TF503 push button timed flow control and Rada VR105 shower head.
Materials	-
Body	Stainless steel panel case, copper alloy shower head and timed flow control, engineering plastic spray plate.
Finish and colour	Satin panel, chrome plated shower head.
Integral accessories	Integral isolator and flexible braided stainless steel connection hoses. Shower head with integral strainer and flow regulator. EPDM liner throughout the flexible hoses.

Options	None. Adjustable spray angle.
Connections	15 mm compression to blended water inlet pipe.
Water pressure	Minimum maintained pressure with 9 litres/ minute flow regulator fitted in the shower head: 0.5 bar; Minimum maintained pressure with flow regulators removed: 0.2 bar; Maximum static pressure: 7.0 bar.
