Rada PA - TF Shower Panel Assembly

Rada PA - TF Shower Panel Assembly

Verified by manufacturer 18 days ago

Rada Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

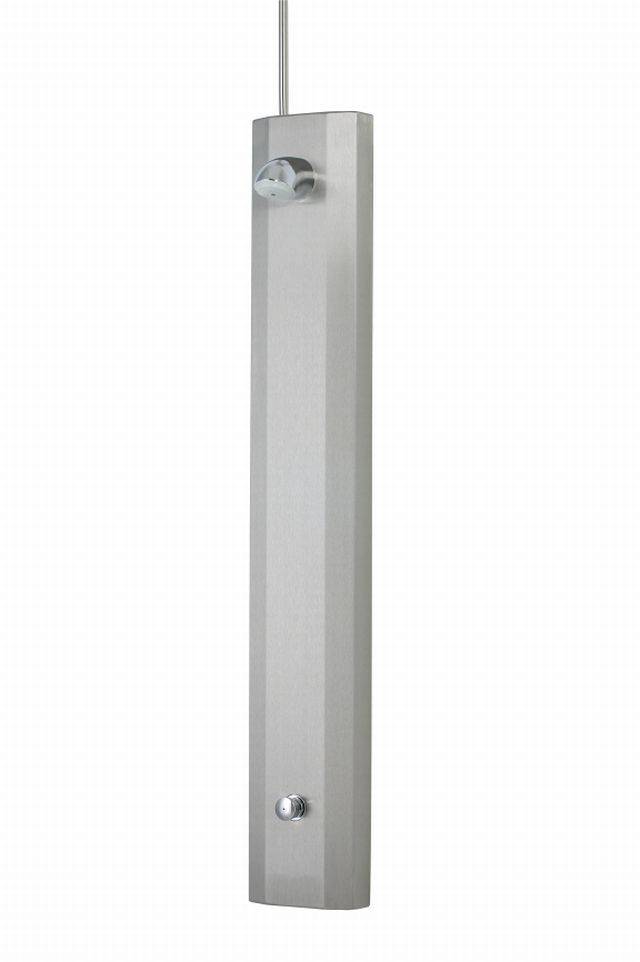

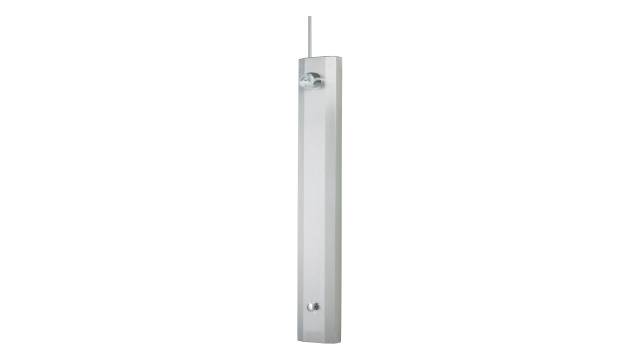

Ready to install pre-plumbed shower panel with satin stainless finish.

Jump to:
+44 (0)344 571 1777 www.radacontrols.com

Description

A pre-plumbed shower panel with single pipe entry, for connection to pre-blended water supply. Units incorporate a Rada TF503 push button timed flow control and Rada VR105 vandal resistant chrome plated shower head with integral strainer and flow regulator. Options include an adjustable spray angle.


Features and benefits:

  • Concealed pipe-work which protects users from high surface temperatures.
  • Long, sleek design – suitable for all ages and abilities.
  • Robust and durable materials used throughout.
  • Easy to install and maintain - Integral isolator and flexible connection provided.
  • Satin stainless steel finish.
  • Product designed to reduce water consumption.

Operation:

  • The flow cycle is activated by pressing the flow button.
  • The flow rate is constant and is automatically turned off after approximately 30 seconds.
  • Further economy of water usage can be achieved by means of an internal flow rate adjuster.

General information

Finish

Satin

Material

Stainless steel

Shape

Rectangle

Size

(h x w x d)

Length

156 mm

Width

192 mm

Height

1217 mm

WarrantyDescription

Two year

Two years parts and labour as standard.

Five year

Extended to five years parts and labour if commissioned by Rada. UK only.

Uniclass

Pr_40_20_87_75 Shower fittings packagePrimary

CAWS

N13/375 Shower units

N13/40 Shower units

Product range

Sports and Leisure
Education
Secure
Student Accommodation
Washrooms

Specification data - Shower fittings package

Form

Pre-plumbed shower panel, thermostatic mixing valve, Rada TF503 push button timed flow control and Rada VR105 shower head.

Materials

-

Body

Stainless steel panel case, copper alloy shower head and timed flow control, engineering plastic spray plate.

Finish and colour

Satin panel, chrome plated shower head.

Integral accessories

Integral isolator and flexible braided stainless steel connection hoses. Shower head with integral strainer and flow regulator.

EPDM liner throughout the flexible hoses.

Options

None.

Adjustable spray angle.

Connections

15 mm compression to blended water inlet pipe.

Water pressure

Minimum maintained pressure with 9 litres/ minute flow regulator fitted in the shower head: 0.5 bar; Minimum maintained pressure with flow regulators removed: 0.2 bar; Maximum static pressure: 7.0 bar.

Environmental information

Country of product manufacture

United Kingdom

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2016

1

1.3
IFC
-

1

1.3
Download now from NBS National BIM Library

Third party certifications

  • Water Regulations Advisory Scheme (WRAS) approved
