Rada PA - 215TFW Shower Panel Assembly

Rada PA - 215TFW Shower Panel Assembly

Verified by manufacturer 12 days ago

Rada Third party certifications:
  • BSI Kitemark

    BSI Kitemark

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

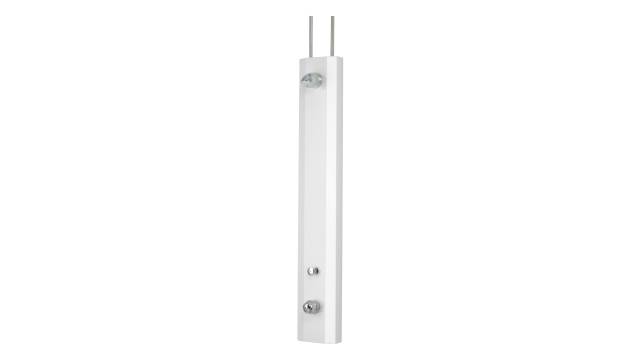

Ready to install pre-plumbed shower panel with white powder coated stainless steel finish.

Jump to:
+44 (0)344 571 1777 www.radacontrols.com

Description

A ready to install, white powder coated, stainless steel panel with hot and cold water pipe entry connecting to a concealed Rada 215-t3, TMV3 approved, thermostatic mixing valve, Rada TF503 push button timed flow control, and a Rada VR105 vandal resistant chrome plated showerhead. Units are available with an adjustable spray angle option.


Features and benefits:

  • User temperature selection.
  • Concealed pipe-work which protects users from high surface temperatures.
  • Long, sleek design – suitable for all ages and abilities.
  • Robust and durable materials used throughout.
  • Easy to install and maintain - integral isolators and flexible connections provided.
  • For connection to hot and cold supplies
  • Showerhead with integral strainer and flow regulator.

Operation:

  • The flow cycle is activated by pressing the flow button.
  • The flow rate is constant and is automatically turned off after approximately 30 seconds.
  • Further economy of water usage can be achieved by means of an internal flow rate adjuster.
  • Showering temperatures can be selected (up to a pre-set maximum temperature) via a rotary control knob.

General information

Color

White

Finish

Powder-coated

Material

Stainless steel

Shape

Rectangle

Size

(h x w x d)

Length

156 mm

Width

192 mm

Height

1217 mm

WarrantyDescription

Two year

Two years parts and labour as standard.

Five year

Extended to five years parts and labour if commissioned by Rada. UK only.

Uniclass

Pr_40_20_87_75 Shower fittings packagePrimary

CAWS

N13/375 Shower units

N13/40 Shower units

Product range

Sports and Leisure
Education
Secure
Student Accommodation

Specification data - Shower fittings package

Form

Pre-plumbed shower panel, concealed Rada 215-t3 thermostatic mixing valve, TF503 push button timed flow control, Rada VR105 shower head.

Materials

-

Body

Stainless steel panel, DZR brass thermostatic mixing valve, copper alloy timed flow control and shower head, engineering plastic spray plate.

Finish and colour

White powder coated panel, chrome plated shower head and TMV knob.

Water supply temperature (maximum)

85°C.

Integral accessories

Integral isolators and stainless steel braided flexible connection hoses. Shower head with integral strainer and flow regulator.

Connection hoses with EPDM liner throughout.

Adjustable spray angle

Not required.

Required.

Connections

15 mm compression to both hot and cold feeds.

Operating temperature range

Optimum thermostatic control range: 35°C to 45°C; Recommended hot water: 55°C to 65°C; Recommended cold water temperature: 5°C to 20°C.

Water pressure

Minimum maintained pressure with 9 litres/ minute flow regulator fitted in the shower head: 0.5 bar; Minimum maintained pressure with flow regulators removed: 0.2 bar; Maximum static pressure: 7.0 bar.

Environmental information

Country of product manufacture

United Kingdom

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2016

1

1.3
IFC
-

1

1.3
Download now from NBS National BIM Library

Third party certifications

  • BS 7942 : LP-S Low pressure shower - HP-S High pressure shower
  • Sanitary tapware - BS EN 1111 : Thermostatic mixing valves (PN10) General technical specification
  • Sanitary tapware - BS EN 1287 : Low pressure thermostatic mixing valves. General technical specification
  • Buildcert: Certificate - ETC 179/0602 : Buildcert TMV3 Thermostatic Mixing Valve Scheme approved.
  • Water Regulations Advisory Scheme (WRAS) approved
