Rada Outlook Piezo Hand Sensor

Verified by manufacturer 11 days ago

Rada

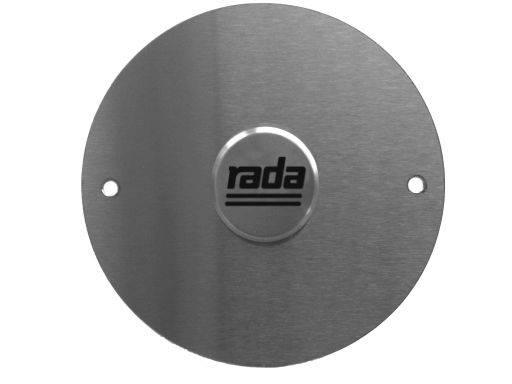

Wall mounted Piezo 'touch' flow control sensor.

Jump to:
BIM object icon
+44 (0)344 571 1777 Website

Application

Suitable for indoor use only.

Description

Rada Outlook is a six outlet digital thermostatic mixing valve, with programmable timed flow for hand washing and showering applications, operated by a choice of touch sensors, non-touch sensors, or non-touch spout.


Features and benefits:

  • Cost effective and flexible, whilst complying with legislative requirements.
  • Automatically performs duty flush at intervals.
  • Integrate auxiliary products such as a fan, pump or Passive Infra Red (PIR) occupancy sensor to the outlook system and program specifically to application.
  • Records automatic duty flush and supervised thermal disinfection data for legislation compliance.
  • Easily programmable using Windows-based menus from a desktop computer, laptop or equivalent for easy access, download and interrogation of data.
  • Connect multiple units to an IT Network or Building Management System, by making Mobus data available for systems integrators to link into. Up to 31 Rada Outlook units on each Mobus network.
  • Incorporating T-Logic Digital Intelligence used in Rada Sense allowing the user to operate, communicate and exchange information with the mixing valve to deliver the ultimate in safety, hygiene and control.

General information

Color

Silver

Material

Brass

Integral component DZR brass.

Stainless steel

Integral component.

Plastic

PC/ ABS (mixing unit enclosure) and engineering plastic (integral components).

Shape

Circle

Length

3.00 mm

Width

100 mm

Height

100.00 mm

WarrantyDescription

Two years parts and labour as standard; extended to five years parts and labour if commissioned by Rada. UK only.


-

Uniclass

Pr_65_54_95_88 Thermostatic mixing valvesPrimary

CAWS

N13/30 Washbasins

N13/335 Washbasins

N13/35 Baths

N13/355 Baths

N13/375 Shower units

N13/40 Shower units

Product range

Sports and Leisure
Education
Secure
Student Accommodation
Washrooms

Specification data - Thermostatic mixing valves

Connections

Flat faced union connections.

NominalPressureDrop

1.5 bar.

  • Minimum.


Note: The pressure loss of a system (valve and outlet fitting) is the average of the two inlet pressures minus the back pressure, where the back pressure is determined by the flow resistance of any outlet fitting.

Pressure

3:1.

  • Hot and cold pressure should be nominally equal.
  • Maximum differential 3 : 1 either way.

Ingress protection (IP) rating

IP24, IP20 and IP45.

  • Mixer valve: IP24.
  • Sensor box: IP20.
  • PSU: IP45.

Required items (select all)

IR Sensor (1.1621.112).

RS485 Converter and Software (1.1621.117).

Piezo Hand Sensor (1.1621.085).

Required non-touch infra-red sensor mounted spout (select one)

150 mm IR Spout: 1.1621.136.

190 mm IR Spout: 1.1621.132.

225 mm IR Spout: 1.1621.137.

Accessories

None.

Rada Isolating Key Switch (2.1495.080).

For temporary disablement of the Rada Outlook sensor box during cleaning or maintenance of showering.

Rada Outlook Outlet By-Pass Adaptor (1.1621.115).

To channel an unused outlet to an open outlet. Useful when there are less than six outlets utilised. Eliminates water 'dead spots' where bacteria can spread.

Rada Outlook RS485 Socket (1.1621.116).

RS485 cable to connect the RS485 converter to a sensor box within a network. The network is then accessible via laptop/ PC at that point.

Rada Relay Box (2.1495.044).

For use with the Rada Outlook sensor box to provide three switched relays for operation of pumps, lights and fans.

Dimensions

  • Outlook mixer valve (h x w x d): 233 x 541 x 84 mm.
  • Sensor box: (h x w x d): 134 x 255 x 37 mm.

-

Approvals

WRAS approved (Water Regulations Advisory Scheme) and BEAB approved.

Operation

Sensor flow control.

  • Non-touch ON/ OFF.
  • Touch ON/ OFF.
  • Non-touch ON/ OFF spout.

RelativeHumidity

95%.

  • Non-condensing.
  • Maximum.

NominalStaticPressure

8 bar.

Flow rate (maximum)

8 L/min at 5 bar.

Minimum flow rate per outlet: < 5 bar maintained pressure 6 L/min.

Cable length

1.5 mm.

  • Valve to sensor box cable length: 1.5 m.
  • Sensor box to sensor cable length: IR - 6 m, Piezo - 3 m.

FlushRate

Programmable range.

1–59 minutes.

Factory setting: Duty flush cycle: 2 minutes.

(Duty flush waiting period: 1 hour - 983 hours).

FlowRateRange

Programmable range.

5 seconds–60 minutes.

Factory setting: Flow time: 30 seconds.

Load (maximum)

40 W at 12 V d.c.

Ambient temperature

1°C–40°C.

TemperatureRange

Programmable range.

30–50°C.

  • Factory pre-set: Default 38°C.
  • Programmable range: Minimum 38°C–47°C, maximum 33°C–50°C and default 30°C–50°C at start up, or full cold only can be selected.
  • Minimum blend temperature differential from hot supply: 2°C.
  • Optimum thermostatic control range: 30°C–50°C.
  • Cold water range (recommended): 1°C–20°C.
  • Hot water range (recommended): 50°C–65°C (85°C maximum - during disinfection).
  • Temperature stability: ± 1°C for recommended supply conditions.

NominalSupplyVoltage

100–240 V RMS 50–60 Hz. 1.5 A.

Materials

  • Mixing unit enclosure: PC/ ABS.
  • Integral components: DZR brass, stainless steel, engineering plastic.


-

Environmental information

Country of product manufacture

United Kingdom

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
IFC
-

3

Revit

Revit 2016

3

Literature

Rada Outlook - Ultimate Washroom Control Technology

Rada Outlook - Ultimate Washroom Control Technology

Rada Product Selector - Commercial Washroom Controls

Rada Product Selector - Commercial Washroom Controls
