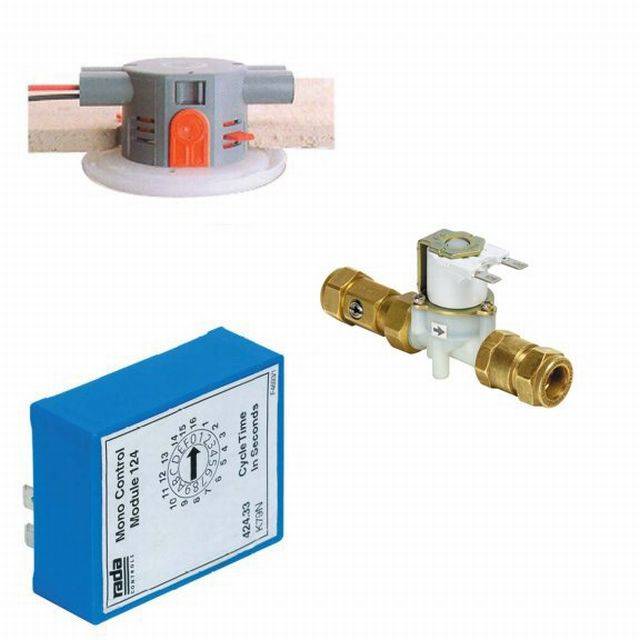

Rada Mono Control MC124 Operating System

Operation:

• When the sensor is activated, a signal is sent to the Rada mono-control module, which in turn energises the solenoid valve, allowing water to flow to the outlet.

• The duration of the flow can be pre-selected during installation by the adjustment of an integral timing dial, via the mono-control module.

• The solenoid valve is supplied complete with an integral isolator and filter.

Materials:

• Ceiling sensor: ABS cover - polycarbonate.

• Solenoid valve: Fibreglass polyamide body.

Pressure:

• Solenoid valve: 0.20 - 10 bar.

Electrical:

• Control module protection class: IP55.

• Sensor protection class: IP00.

• Supply voltage: 12V AC + 10% 50/60Hz, via Rada Universal 12V AC transformer (not included).

• Power consumption: 6 VA.

Operating temperatures:

• Ambient temperature range: 5–40°C.

• Maximum humidity: 80%.

Sensor range:

• Minimum 0.5 m.

• Maximum 2.5 m.

Accessories:

• Rada Universal 12V AC Transformer.
