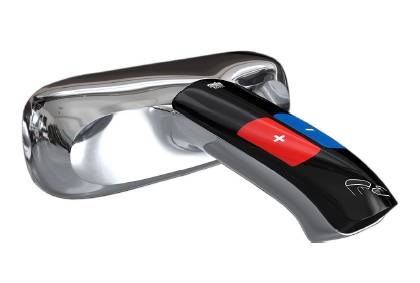

Non-touch, panel mounted, intelligent thermostatic mixer tap.
Suitable for use where intelligent non-touch mixers are needed.
Intelligent thermostatic panel mount tap with non-touch flow (IR) and temperature (capacitive) controls.
Features and benefits:
Programming via Rada App using iOS tablet over Bluetooth.
Blend Duty Flushing:
Cold Only Flushing:
N11/350 Sinks, taps, traps and wastes
N11/30 Sinks, taps, traps and wastes
To EN 61558-2-16 (Power Supply).
Water Regulations Advisory Scheme (WRAS)-approved and TMV3.
Automatic action thermostatic mixer taps.
Flow rate (maximum)
Flow regulator unit supplied.
Water supply temperature (maximum)
User-controlled with a programmable range of 33–45°C.
Rada ACI 2 (72981-NA) - Network Box.
Rada ACI 9 (76705-NA) - Extension Cable 2.5 m.
Rada ACI 11 (76715-NA) - Network End of Line Kit.
Flow: Infra red non-touch activation.
Temperature adjustment: Capacitive sensor, allowing either non-touch adjustment by either holding or waving hand up to 35 mm above temperature graphic, or touch control, using the temperature graphic pads.
Hot and cold supply pressures should be nominally equal.
Maximum static pressure, 10 bar; dynamic pressure range, 1.0-5.0 bar.
15 mm Compression or 1/2″ BSP Checkvalve / filter / flow regulator assembly with integral isolation: 1/2″ BSP / 15 mm compression.
Rated voltage: 100 Vac - 240 Vac, rated current: 1.0 A
Rated voltage: 12 Vdc, rated current: 2.5 A.
50/ 60 Hz.
Ingress protection (IP) rating
The MX1 Taps are networkable using modbus RTU over an RS485 connection.
This enables the MX1 Taps to be linked to a Building Management System (Refer to separate IC Networking Datasheet - P6480).
Water supply fittings
Water supply fitting programming options.
Cold only flushing.
Valve size (size of the connection to the valve).
15 mm compression to and from inlet unit; 1/2" BSP to tap inlet.
Country of product manufacture
NBS BIM object standard
This BIM object has been authored to meet the requirements of the NBS BIM object standard.
