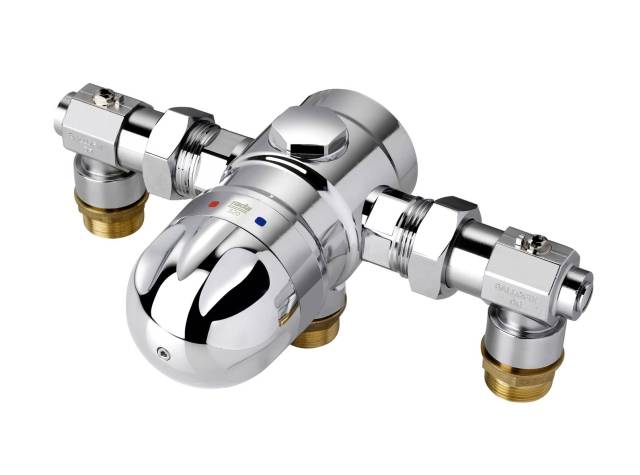

Rada 320 IC Thermostatic Mixing Valve

Name: Rada 320 IC Thermostatic Mixing Valve
Brand: Rada
SKU: kSo5G1XX4w7nww5qQHEuHu

NBS BIM object standard

Verified by manufacturer 4 months ago

Rada

Thermostatic mixing valve, incorporating Radatherm cartridge

Jump to:

+44 (0)344 571 1777 Website

Application

Suitable for surface-mounted, medium to large group showering installations.

Description

A group thermostatic mixing valve incorporating the patented Radatherm temperature sensor, isolating ball valves, check-valves, integral isolators, test points and fitters.

Features and benefits:

Enhanced thermostatic performance.
Service friendly - supplied with integral isolators, check valves and strainers.
Easy to install - features adjustable elbows and 28 mm compression fittings.
The temperature control knob allows the authorised user to select the required temperature within the range available.
An integral temperature stop limits the maximum temperature to a present level and can only be reset by an authorised person.

General information

Color	Silver
Finish	Chrome
Material	Brass Body: European 4MS Scheme Compliant Brass meeting DZR and Low Lead requirements.
WarrantyDescription Two-year warranty on parts and labour as standard; Extended to five-year warranty on parts and labour if commissioned by Rada. UK only.	-

Uniclass	Pr_40_20_87_81 Shower thermostatic water supply setsPrimary
CAWS	S90/680 Thermostatic mixing valves S90/680 Thermostatic mixing valves

Product range	Sports and Leisure Education

Specification data - Shower thermostatic water supply sets

Approvals	Water Regulations Advisory Scheme (WRAS) approved.
Materials	-
Body	Brass.
Finish and colour	Chrome plated.
Flow rate (maximum)	120 L/ min at 5.6 bar.
Water supply temperature (maximum)	85°C.
