QXDE

Description

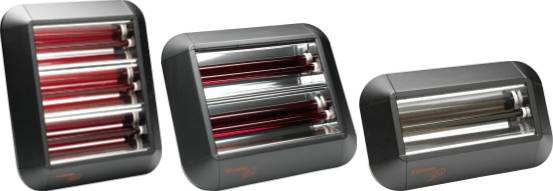

QXDE Quartzray heater features an electronic thermostat for temperature based lamp power-on. It also features a built-in seven-day timer which can be setup and activated via Bluetooth remote.

Features and benefits:

  • Seven-day timer and temperature control (programmed via Bluetooth remote).
  • Accurate electronic thermostat.
  • Same size and fixings as older Dimplex QXD heaters.
  • Available in three different sizes.
  • Complies with Lot 20 of ERP Directive.
  • CE marked and BEAB approved.

Two-year warranty.

General information

Uniclass 2015

Pr_70_60_36_74 Room heatersPrimary

CAWS

V90/590 Equipment

Specification data - Room heaters

Product Reference

QXD1500E

1.5 kW heat output. Size (w x h x d): 440 x 256 x 70 mm. Weight 3.7kg.

QXD3000E

3 kW heat output. Size (w x h x d): 440 x 380 x 70 mm. Weight 4.3kg.

QXD4500E

4.5 kW heat output. Size (w x h x d): 440 x 506 x 70 mm. Weight 5.8kg.

Standard product features

Colour/ Finish:

Powder coated steel, finished in Matte Black.

Controls:

  • Digitally controlled, accurate electronic thermostat.
  • Timer modes: Seven day programmable user timer.
  • Continuous heat modes: Manual, runback, off.

Controller UI:

Off-board control only. Requires pairing with Bluetooth remote or Remo Smartphone App.

Controller Functions:

  • Heat Selection: High/ low for 3/4.5 kW models.
  • Bluetooth for control and software updates.
  • Open window detection.

Construction:

Durable epoxy-polyester powder coated steel casing.

Element:

Ruby halogen element.

Installation:

Supplied with wall mounting bracket.

Safety:

No cut-out on-board. Protection via RCD.

Supply:

1/ 1.5/ 2.5 mm x 3 core for fused spur installation, 1/N/PE ~230-240V, 50 Hz Class I, with earth wire.
