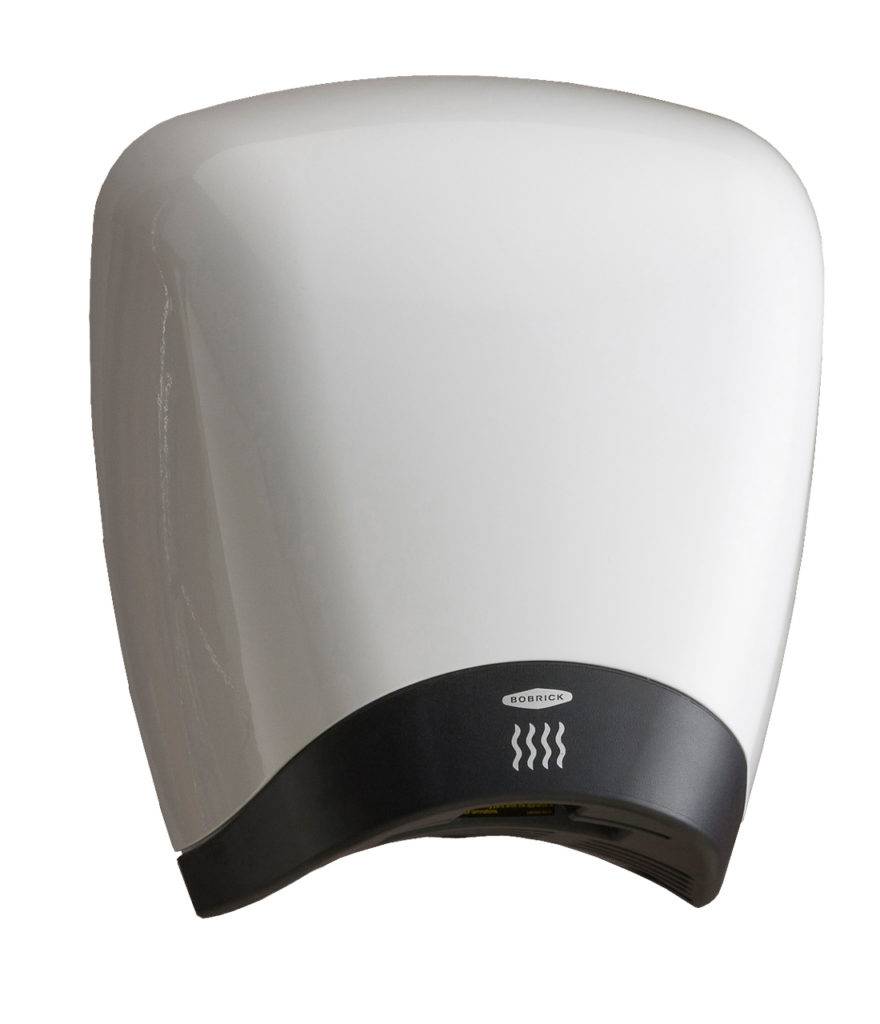

QuietDry™ Series, DuraDry™ Surface-Mounted High Speed Hand Dryer B-770

Application

Surface/ wall mounted.

Description

High speed, surface mounted hand dryer with a white high-gloss epoxy finish electrostatically applied. The product is designed to have a sound pressure level of 72 dB(A) measured at 39″ (1 m) from source. CE marked, CU Listed, and VDE approved.


Features and benefits:

  • 115 V a.c:, 12 Amp, 50/60 Hz, 1380 Watts, Single phase, CU listed.
  • 208-240 V a.c: 5.5-6.3 Amp, 50/60 Hz, 1380 Watts, Single phase, CU listed and CE marked.

General information

Color

White

Finish

Gloss

Material

Aluminium

Length

3007 mm

Width

367 mm

Height

188 mm

WarrantyDescription

One year

In addition to Bobrick’s one-year guarantee, Bobrick extends a limited 10 year warranty from the date of purchase for Model B-770 and B-778 hand dryers on all parts, except motor brushes, to the original owner of the installed unit against defects in factory workmanship or material under normal use and service. This warranty is limited to the repair or exchange of defective parts at the option of Bobrick.

Motor brushes are warranted for 3 years from date of purchase. This warranty is limited to the repair or exchange of defective parts at the option of Bobrick.

Uniclass

Pr_40_70_62_37 Hand dryersPrimary

CAWS

N13/725 Installing hand dryers

N13/472 Hand dryers

N13/64 Hand dryers

Specification data - Hand dryers

Form

High-velocity air.

Operation

Automatic.

Timer

Fixed.

Electrical supply

-

Power rating

1.38 kW.

Rated operational voltage (Ue)

110 V a.c.

230 V a.c.

Frequency

50/60 Hz.

Body

-

Material

Aluminium.

Finish

Gloss Epoxy.

Colour

White.

Dimensions

307 x 267 x 188 mm

Noise level at 1 m (maximum)

72 dB(A).

Features

Hands only.

Digital objects

Platform Compatible Version Certified to
Revit
-

1

1

Download now from NBS National BIM Library

Literature

Washroom Accessories

Washroom Accessories

QuietDry™ Series DuraDry™ Surface-Mounted Hand Dryer - B-770 & B-778

QuietDry™ Series DuraDry™ Surface-Mounted Hand Dryer - B-770 & B-778

DuraDry B-770, B-778 Dryer Troubleshooting and Information Guide

DuraDry B-770, B-778 Dryer Troubleshooting and Information Guide
