QuickVic Grooved Fittings - Mechanical Coupling Fittings
Verified by manufacturer 5 months ago
Grooved end fittings for steel pipes using Mechanical Couplings
Application
Suitable for heating and cooling (LTHW, CHW, CON) piping systems. Connects pipes and provides changes in direction.
Exclusively for use with Victaulic couplings, valves, accessories and pipes which feature ends formed with the OGS groove profile.
Description
A range of grooved end fittings for carbon steel grooved piping systems.
Features and benefits:
- Sizes from 2–12 inches, DN50–DN300.
- All fittings supplied with Victaulic Original Groove System (OGS) grooved ends.

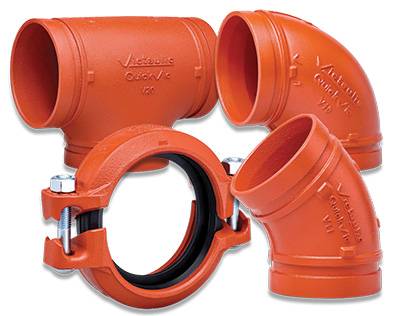

The range includes:
- No. V10 90° Elbow.
- No. V11 45° Elbow.
- No. V20 Straight Tee.
- No. V15F ANSI Class 150 Flanged Elbow (Flat Face).
- No. V15R ANSI Class 150 Flanged Elbow (Raised Face).
- No. V16F ANSI Class 300 Flanged Elbow (Flat Face).
- No. V16R ANSI Class 300 Flanged Elbow (Raised Face).
General information
Color | Orange Black |
Finish | Enamelled Galvanized |
Material | Iron Guidance for specification option: Ductile iron. |
Shape | Other |
Length | Manufacturer guidanceDependent on component. |
Width | Manufacturer guidanceDependent on component. |
Uniclass |
SKU Code | V10, V11, V20, V15F, V15R, V16F, V16R |
Specification data - Steel pipe fittings
Third-party certification | LPCB-certified. |
Grade | Ductile iron to ASTM A536, Grade 65-45-12. |
MaximumWorkingPressure | 400 psi/ 2758 kPa. |
NominalSize | DN50. DN65. DN80. DN100. DN125. Manufacturer guidanceConsult manufacturer's literature and insert requirements. |
External finish | Standard. Guidance for specification option: Orange coating: No. V10, V11, V20. Orange and Black coating: No. V15F/R and V16F/R. Hot dipped galvanized. Guidance for specification option: Optional. ASTM A123. |
Sustainability data
Material | Iron Guidance for specification option: Ductile iron. |
Recyclability | Recyclable |
Literature
Victaulic QuickVic Grooved Fittings
