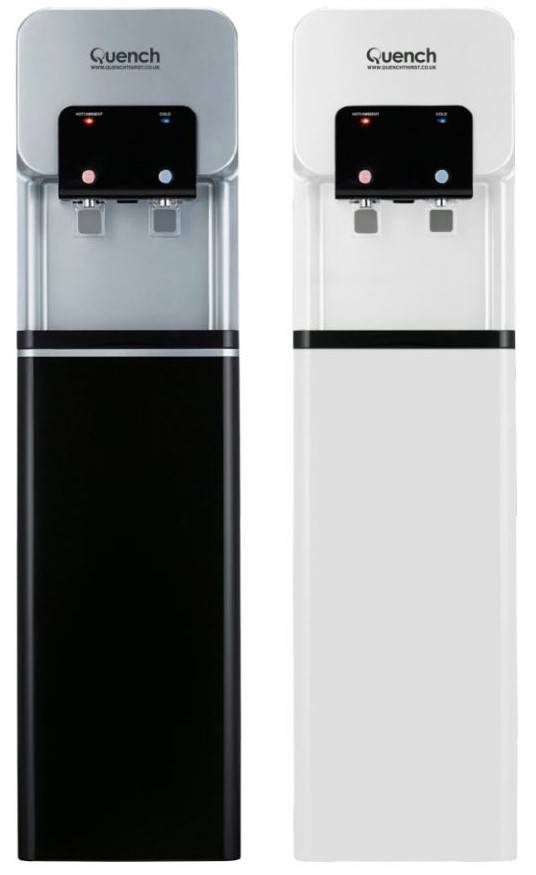

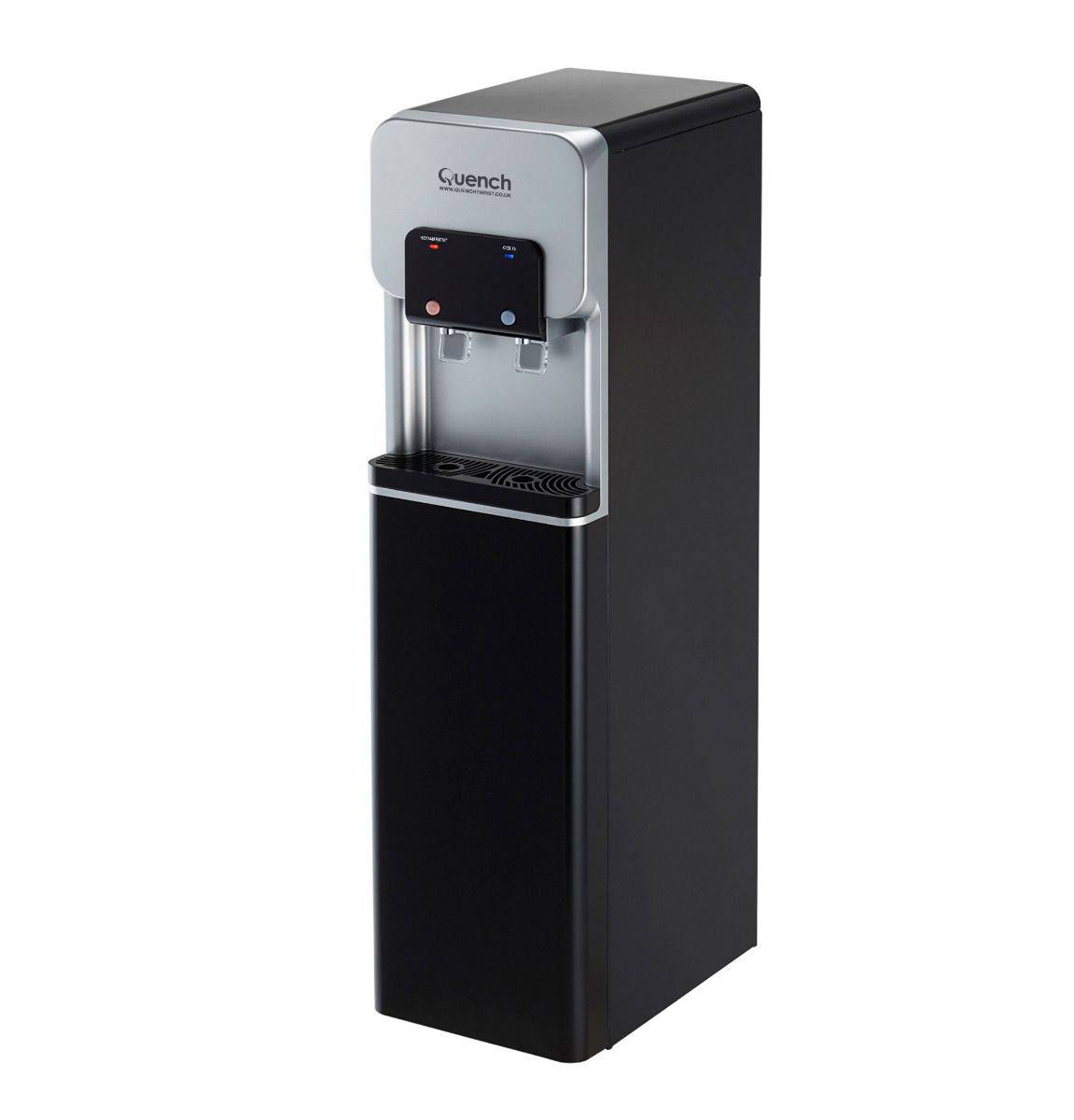

Quench Free Standing Water Cooler/Heater Dispenser
Verified by manufacturer 2 months ago
Black, with installation kit
Black, with installation kit
Quench free-standing mains fed, hot and cold water fountain dispenser.
Application
Free standing water cooler, suitable for a variety of applications.
Suitable for use in offices, schools, universities, gyms, waiting rooms, hospitals, leisure & commercial settings, and more.
Description
A free-standing mains-fed water dispenser from Quench which provides the choice of hot, ambient, and chilled water.
Features and benefits:
- Sleek and compact: perfect size for office spaces, or similar areas, due to compact design.
- Mains powered.
- Customisable: dispenses any 2 of the following - hot, ambient, or cold water.
- Modern design: perfect for any setting, available in black or white.
- Hygienic: fitted with a carbon water filter for clean water dispensing.
- Robust: robust and durable construction.
- Easy to use: simple to use and maintain. Generous filling space for large bottles and mugs.
- Energy efficient: energy efficient water cooler, with low power consumption.
- Power consumption: Hot = 500W, Cold = 125W
- Smart: fitted with front LED lamp indicator.
- Available with or without installation kit.
Cooling temperature: 4°C ~ 10°C
Heating temperature: 75°C ~ 90°C
General information
Color | White Black |
Finish | Smooth |
Material | Stainless steel Acrylonitrile butadiene styrene (ABS) Manufacturer guidanceStainless steel body and internal tank, with a plastic lid and front panels. |
Shape | Rectangle |
Length | 400 mm |
Width | 290 mm |
Height | 1100 mm |
Warranty description | One year |
Uniclass | |
CAWS | S90/695 Water coolers N11/360 Appliances N12/340 Appliances N13/379 Drinking fountains N12/340 Appliances N11/40 Appliances |
Product range |
Specification data - Refreshment dispensers
Description | Free-standing mains fed, hot and cold water dispenser. |
Manufacturer | Quench. |
Functions | Water dispenser. |
Style | Floor-mounted. |
Casing | |
Material and finish | Stainless steel body and internal tank, with a plastic lid and front panels. |
Colour | Black. |
Operation | Electrical. |
Power consumption | 500 W. Guidance for specification option: Power consumption for hot water dispensing. Cold water dispensing power: 125 W. |
Dimensions | 400 x 1100 x 290 mm. Guidance for specification option: Length x height x width. |
Spout height | 170 mm. |
Operating temperature | Cold water temperature: 4℃ to 10℃. |
Weight | 32.5 kg. |
Accessories | Installation kit. Guidance for specification option: Kit includes:
|
Sustainability data
Country of material origin | China |
Country of product manufacture | China |
Material | Stainless steel Acrylonitrile butadiene styrene (ABS) Manufacturer guidanceStainless steel body and internal tank, with a plastic lid and front panels. |
Recyclability | Yes - plastic and metal can be recycled. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature

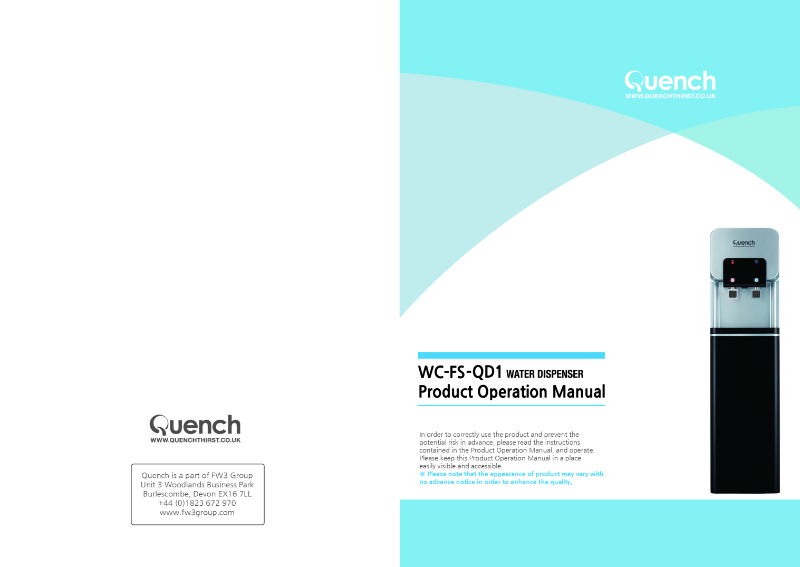

Quench Free Standing Water Cooler User Manual

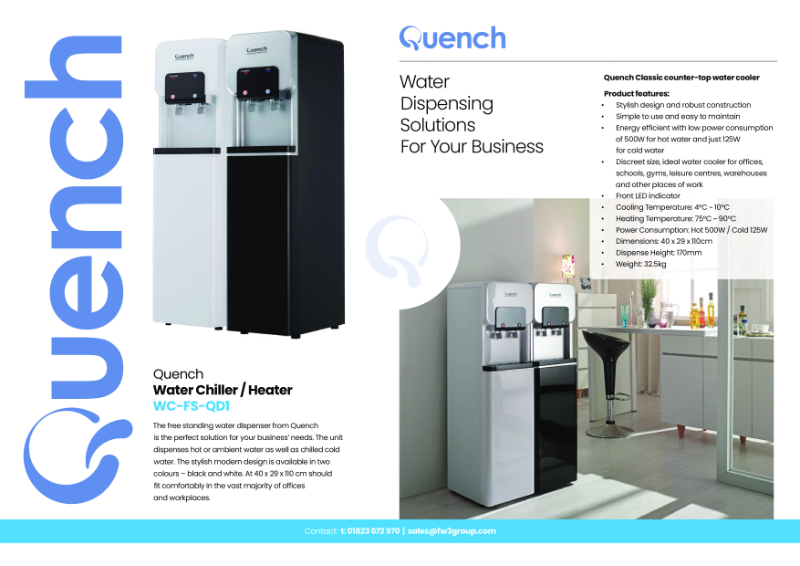

Quench Free Standing Water Dispenser Leaflet
