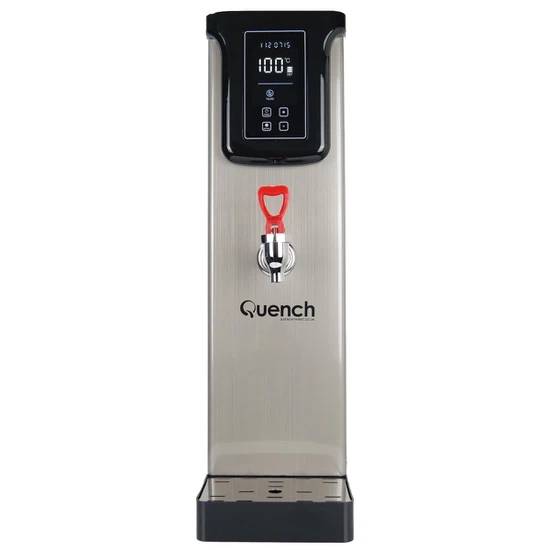

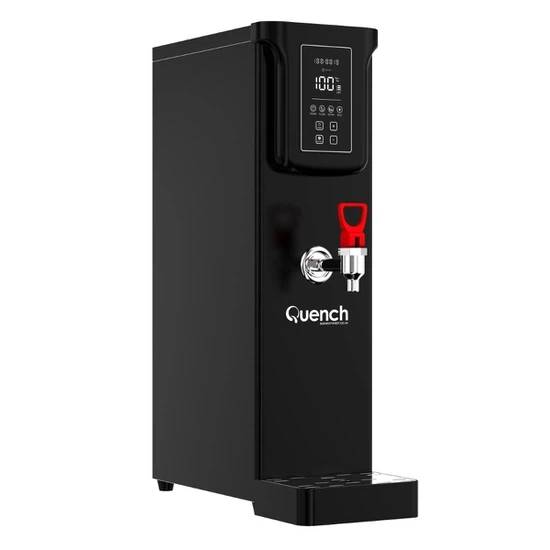

Quench Counter Top Water Boiler - Boiling Water Dispenser

Verified by manufacturer 2 days ago

10 L Black

FW3 Variant:

Mains-fed boiling water dispenser constructed from food-grade 304 stainless steel, available in 10 or 20 L sizes. Featuring IPX4 rating, overheat protection, and digital temperature display.

Jump to:
Request BIM
+44 (0)1823 672 970 Website

Application

Suitable for staff rooms, office kitchens, cafes, workshops and retail spaces. Delivers up to 260 cups per hour.

Description

Mains-fed, compact, boiling water dispenser delivering up to 260 cups per hour, available in four variations.

Features and benefits:

  • Instant Boiling Water – boost productivity, no waiting for kettles to boil.
  • Cups per Hour: 150-200 (10L), 220-260 (20L)
  • Free Installation & Servicing*
  • Reduce energy costs by up to 50%!
  • Eco-friendly Mode – when not in use, the boiler keeps water at a constant temperature to enhance energy savings.
  • Autofill Filtered Water – plumbed directly into the mains, this boiler automatically fills to ensure that water is available at all times.
  • Precise Temperature Control – intelligent staged boiling procedure ensures that water delivered to your cup is always at the perfect temperature.
  • Reduce Wastage – control when your hot water boiler is on/off using the simple digital programmer. Set opening/closing hours to ensure hot water is always available during opening hours, and switched off for energy savings when closed.
  • Space-saving Design – a slimline profile ensures this water boiler can fit on any countertop, taking up minimal space with its non-intrusive, compact footprint.
  • Anti-fingerprint Coating to reduce finger marks on the boiler.
  • Ultra-safe – packed with safety features, this boiler boasts a smooth and safe water dispensing process. Including, but not limited to –
    1. Rubber feet to grip the counter
    2. Lockable tap
    3. Intelligent tap design to avoid scalds/burns
    4. Digital screen to show water temperature
    5. Construction from food-grade grade 304 stainless steel
    6. Fitted with overheat and anti-overflow protection.
  • Two sizes available (10 and 20 L), and two finishes to choose from (glossy black and brushed steel).
  • IPX4 Rating.

*when opting for a lease and/or maintenance plan for a water boiler.

General information

Color

Black

Silver

Finish

Brushed

Other

Gloss

Material

Stainless steel

Guidance for specification option:

Grade 304

Manufacturer guidance

Food-Grade

Shape

Rectangle

Length

350 mm

Guidance for specification option:

No drip tray, no tap.

455 mm

Guidance for specification option:

With tap.

480 mm

Guidance for specification option:

With drip tray.

Manufacturer guidance

Depth.

Width

200 mm

Height

710 mm

Guidance for specification option:

20 L model.

550 mm

Guidance for specification option:

10 L model.

Warranty description

Two year

Guidance for specification option:

Standard one year. Register warranty, as per the manual, for two year.

Uniclass

Pr_40_70_23_42 Instant boiling and cold water tapsPrimary

SKU Code

WB-Q-DT-10L-B

GTIN/EAN

5056066543680

Specification data - Instant boiling and cold water taps

Classification data

Water

Boiling.

Duty

-

Tank capacity

10 L.

Hot cups

200–220 cups per hour.

Dimensions

550 x 200 x 480 mm.

Guidance for specification option:

With tap and drip tray.

Manufacturer guidance

Height x width x depth.

Electrical connection

-

Power

2 kW.

Guidance for specification option:

3kW Plug type: UK standard 3-pin.

Fitted cable length: 1.5m.

Voltage

220 V.

Water inlet

Manufacturer's standard.

Safety features

Rubber feet to grip the counter, tap designed to avoid scalds/ burns, digital screen to show water temperature, construction from food-grade 304 stainless steel.

Components

Drip tray.

Ingress protection

IPX4.

Body

Black.

Manufacturer guidance

Colour/ finish.

Mounting

Counter-mounted.

Weight

9.5 kg.

Water pressure

1–4 BAR.

Overflow

15 mm (1/2”) piped vent/ overflow required.

Sustainability data

Contains Red List materials

No

Country of material origin

China

Country of product manufacture

China

Material

Stainless steel

Guidance for specification option:

Grade 304

Manufacturer guidance

Food-Grade

Recyclability

Yes

Literature

Quench Water Boiler Leaflet (WB-Q-DT)

Quench Water Boiler Leaflet (WB-Q-DT)

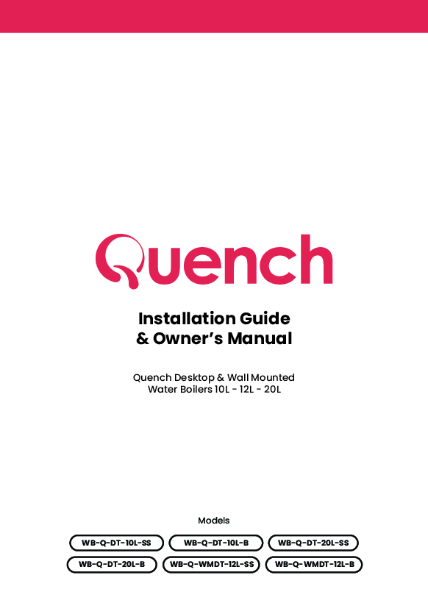

Quench Water Boiler Installation Guide & Owner’s Manual

Quench Water Boiler Installation Guide & Owner’s Manual
