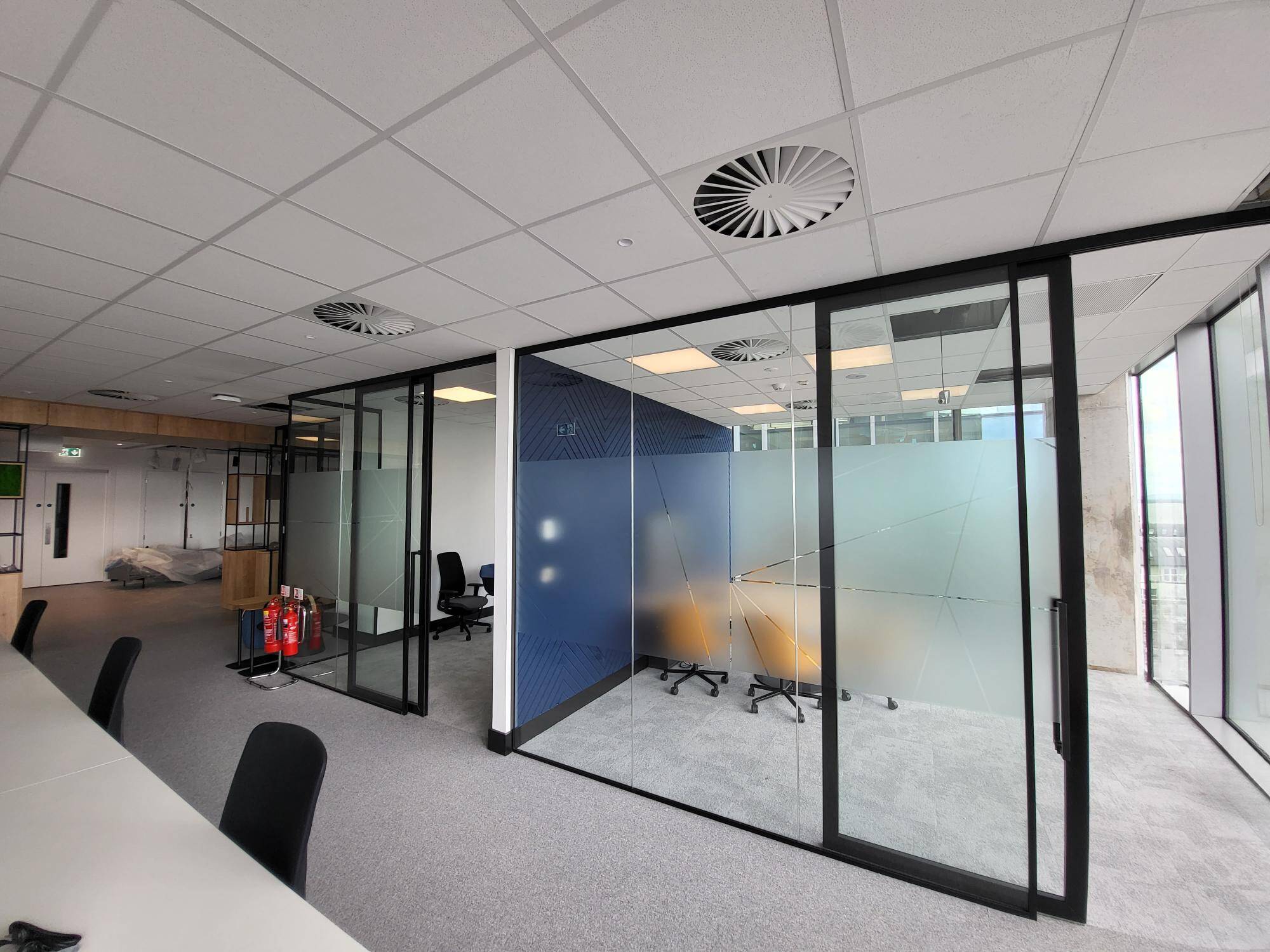

Quartzglide 2 - Glass Sliding Door - Glass Sliding Door, Single Glazed Door
Verified by manufacturer 18 hours ago
Single glazed sliding glass door with concealed runners for unimpeded glass from floor to ceiling partitioning solution.
Application
Open-plan commercial offices and workplace environments.
Description
Quartzglide 2 is the Apton solution for those areas where concealed runners are the preferred requirement, providing a visual impact of unimpeded glass from floor to ceiling.
Features and benefits:
- The uncluttered appearance of Quartzglide 2 makes it a suitable choice for the modern office environment.
General information
Color | Clear Silver Other |
Finish | Powder-coated Anodized Satin |
Material | Aluminium Glass |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year |
Uniclass | |
CAWS | L20/65 Sliding pocket doors L20/525 Sliding pocket doors L20/520 Sliding doors |
Specification data - Sliding door and partition sets
Classification data | |
Performance | Internal. Guidance for specification option: Concealed runners - unimpeded glass from floor to ceiling. |
Arrangement | As schedule. As drawing. Guidance for specification option: Insert drawing reference number. |
Track system | Aluminium, top-hung. |
Door leaves | |
Construction | 34 x 43 mm aluminium profiles. |
Finish and colour | Polyester powder coat. Guidance for specification option: Insert requirements; contact manufacturer for more details. Satin anodized. Special anodized finish. Guidance for specification option: Inquire with manufacturer for special anodized finish options. |
Operation | Manual. |
Hardware | Manufacturer guidanceA wide range of ironmongery can be supplied with QuartzGlide 2. Insert requirements; consult with manufacturer for details. |
Standards | To BS 5234, BS 6180 and BS 6399. Guidance for specification option: Structural stability. |
Height | Guidance for specification option: Available height up to 3000 mm; insert requirements or drawing reference number. |
Glass thickness | Glass leaf 10–12.8 mm; Door 6–10.8 mm. Guidance for specification option: Insert requirements or drawing reference number. |
Glass type | Toughened. Laminated. Manufacturer guidanceAvailable ‘Switch Glass’ option; contact manufacturer. |
Manifestation | Not required. Required. Guidance for specification option: Insert requirements; contact manufacturer for details on optional manifestations and graphics. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Aluminium Glass |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

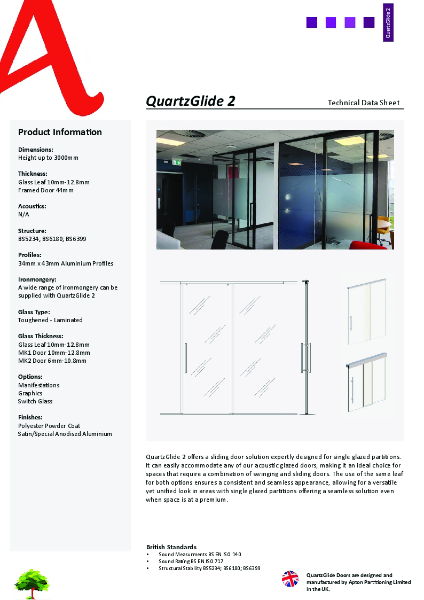

QuartzGlide 2 Data Sheet
