Quartz Blue Smart Divert Concealed Shower Adjustable with Wall Fixed Head

QZSB.A1.BV.DVFW.20

Aqualisa Products Ltd Variant:
Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

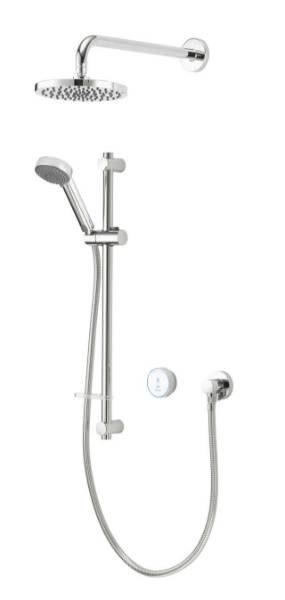

Built-in dual outlet smart shower with wall outlet for adjustable handset and wall fixed drencher head.

Jump to:
+44 (0)1959 560000 Website

Application

Permissible Aqualisa SmartValve™ siting location: Loft, airing cupboard, under bath. Water system requirements: HP, combi and boosted gravity.

Description

Fixed wall and adjustable showerheads. It must be sited no higher than the base level of the cold water system (for gravity systems).


Features and benefits:

  • 90 mm showerhead diameter (200 mm fixed head).
  • Harmony handset with 4 spray patterns including eco spray.
  • Adjustable up to maximum centres of 657 mm.
  • LED display shows when the desired shower temperature has been reached.
  • Wifi, Mobile App, Google Home & Amazon Alexa enabled to allow you to control your shower remotely.
  • Mutliple showers can be controlled from one app.
  • Easy to use button, one touch divert control.
  • Glide temperature control for safe thermostatic showering with adjustable maximum temperature.
  • Timer feature allows you to set your shower duration.
  • Optional eco mode on the Smart valve which can be selected for water saving up to 33%.
  • Aqualisa SmartValve™ inlet and outlet fitting connections: 15 mm push fit.
  • Valve inlet centres: 48 mm.


General information

Shape

Circle

Color

Silver

Finish

Chrome

Material

Metal

Plastic

WarrantyDescription

Five year

For shower unit; two year for shower head and kit.

Size

Controller size.

ø Diameter x thickness.

72 x 72 x 36 mm

Uniclass

Pr_40_20_87_75 Shower fittings packagePrimary

CAWS

N13/375 Shower units

N13/40 Shower units

Product range

Smart Digital Showers

Specification data - Shower fittings package

Approval

CE marking, BEAB.

Form

Dual outlet concealed shower head.

Materials

-

Body

Metal and plastic.

Finish and colour

Chrome plated.

Flow rate (maximum)

10–16 L/min.

Water supply temperature (maximum)

65°C.

Supply temperature: Cold inlet temperature 1˚C (minimum) and 15˚C (maximum). Hot inlet temperature 65˚C (maximum).

Pressure

0.1—7 bar.

Shower head

90 mm (diameter).

Controller

72 x 72 x 36 mm.

InletConnectionSize

15 mm push fit.

OutletConnectionSize

15 mm push fit.

Centres

Valve inlet centres.

48 mm.

Position

Hot right, cold left.

System

HP, combi system.

Environmental information

Country of material origin

Malaysia

Also United Kingdom.

Country of product manufacture

Malaysia

Also United Kingdom.

Digital objects

Platform Compatible Version Certified to
Revit
-

1

2.1
IFC
-

1

2.1
Download now from NBS National BIM Library

Third party certifications

  • BEAB Approval Mark
