Quartz Blue Smart divert concealed adjustable with bath - HP

Quartz Blue Smart divert concealed adjustable with bath - HP

Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Aqualisa Products Ltd

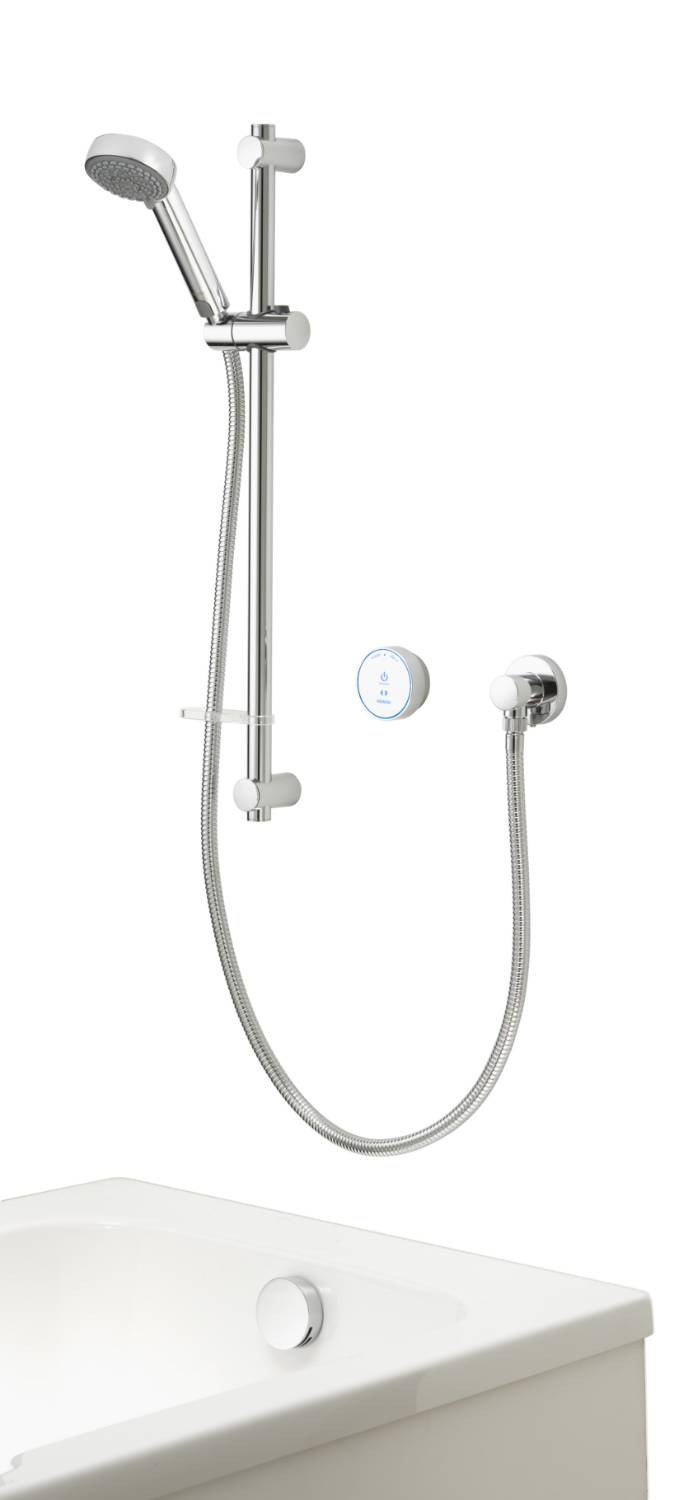

Built-in dual outlet smart shower with wall outlet for adjustable handset and bath fill.

Jump to:
+44 (0)1959 560000 www.aqualisa.co.uk
Description

Adjustable showerhead with bath overflow. Adjustable up to maximum centres of 675 mm.

Features and benefits:

  • One touch start/ stop control.
  • LED display indicates when pre-selected temperature has been reached.
  • Digital diverter technology.
  • Aqualisa SmartValve™.
  • 90 mm, four spray patterns (adjustable head) including eco-spray option.
  • Wi-Fi and app compatible – control the product with a smart phone or smart home device e.g. Alexa or Google home.
  • App functions include start/ stop, shower timer, user dashboard, usage tracker and help/ support.
  • CE marked.
  • Five-year guarantee.

General information

Finish

Chrome

Size

36 x 72 mm

Color

Chrome

Features

One touch stop, start control, LED display, WiFi and app compatible

Material

Metal, plastic, chrome plated

Shape

Circular

WarrantyDescription

5-year guarantee – shower unit, 2-year guarantee – shower head and kit

Uniclass 2015

Pr_40_20_87_75 Shower fittings packagePrimary

CAWS

N13/375 Shower units

N13/40 Shower units

Specification data - Shower fittings package

Product Reference

Quartz Blue™ Smart Divert With Concealed Adjustable With Bath Overflow - HP

QZSB.A1.BV.DVBTX.20.

Standard product features

Size:

  • Adjustable head (h x w): 700 x 315 mm.
  • Showerhead diameter: 90 mm.
  • Controller: 36 x 72 mm.
  • Aqualisa SmartValve™: 72 x 165 mm.
  • Diverter: 70 x 110 x 196 mm.
  • Bath overflow: 25 x 70 mm.

Technical characteristics:

  • Pressure: 1 bar (minimum) and 7 bar (maximum).
  • Aqualisa SmartValve™ inlet and outlet fitting connections: 15 mm push fit.
  • Valve inlet centres: 48 mm.
  • Inlet supply positions: Hot right, cold left.
  • Permissible Aqualisa SmartValve™ siting location: Loft, airing cupboard, under bath.
  • Supply temperature: Cold inlet temperature 1˚C (minimum) and 15˚C (maximum). Hot inlet temperature 65˚C (maximum).
  • Water system: HP, combi and boosted gravity.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
- 1 2.1
Download now from NBS National BIM Library
Third party certifications
  • BEAB Approval Mark
