Quantum RF Range - Storage Heater
Verified by manufacturer 9 months ago
QM050RF
QM050RF
A range of slimline electric storage heaters with built-in RF module as standard.
Application
Suitable for domestic applications.
Description
Quantum RF is an advanced high heat retention electric storage heater with a clean look and reliable performance. Quantum RF provides low cost, low carbon, electric heating and temperature control.
Features and benefits:
- Built-in RF module as standard.
- Complies with Lot 20 of ERP Directive.
- Meets criteria for SAP high heat retention storage heater.
- Customisable heating with four time and temperature settings per day.
- Dynamic, intelligent charge calculation stores only the energy you need.
- Adaptive start pre-heating and open window detection auto-shutdown.
- Smartphone app controllable via the Dimplex Control system.
- Requires energy cell packs to function. Item: 047243 (included with purchase).
General information
Color | White |
Shape | Rectangle |
Width | 580 mm 703 mm 865 mm 1069 mm |
Height | 752 mm |
Warranty description | Two year Ten year Manufacturer guidanceTwo years standard. Ten years extended available with registration. |
Uniclass | |
CAWS | T90/465 Radiators T90/465 Radiators |
Specification data - Thermal storage heaters
Third party certification | CE and BEAB certified. |
Output | 500 W. |
Finish | White (RAL 9016) Traffic White. |
Accessories | Not required.080479 - Quantum Tall Feet Kit.Guidance for specification option: The Quantum Tall Foot Kit replaces the standard feet supplied in the carton, raising the product further off the floor to clear taller skirting boards. 203 x 225 x 132 mm (H x W x D). 065698 - Dimplex Hub device.Guidance for specification option: A Dimplex Hub device is required for this product to connect to the Dimplex Control system and be controlled via the Dimplex Control smartphone app. |
Controls | Digitally controlled, electronic thermostat. Guidance for specification option: Accurate to (±0.2°C). Setpoint range (7-30°C). Timer modes: 7 Day Programmable User Timer, Out All Day, Home All Day. Continuous heat modes: Frost Protect. Additional Modes: Away, Boost, Setback. |
EnergySource | 4 Energy cell packs required. |
Safety features | Electronic overheat protection. Guidance for specification option: Additional electromechanical overheat protection. LVD and EMC compliance. |
StorageType | High-density bonded magnetite energy cells. Manufacturer guidance(Storage core). |
Battery back-up | CR2032 Lithium manganese dioxide 3V coin cell battery. Guidance for specification option: To backup real time clock. Battery life >5 years. |
Supply | 1/N/1/N/PE ~230–240 V (Twin Supply) 230–240 V/ 50 Hz Class I; |
Width | 580 mm. |
Input | 1020 W. |
Storage | 7140 Wh. Guidance for specification option: With 340 W boost mode rating. Manufacturer guidanceCapacity (maximum). |
Ingress protection | IPX4. |
Sustainability data
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature

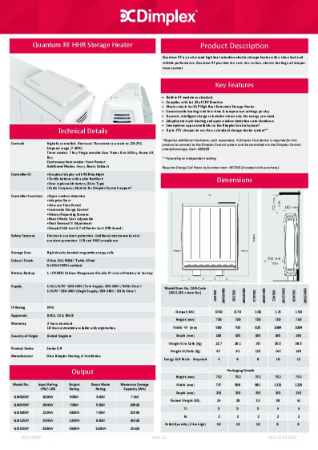

Quantum RF Series Spec Sheet
