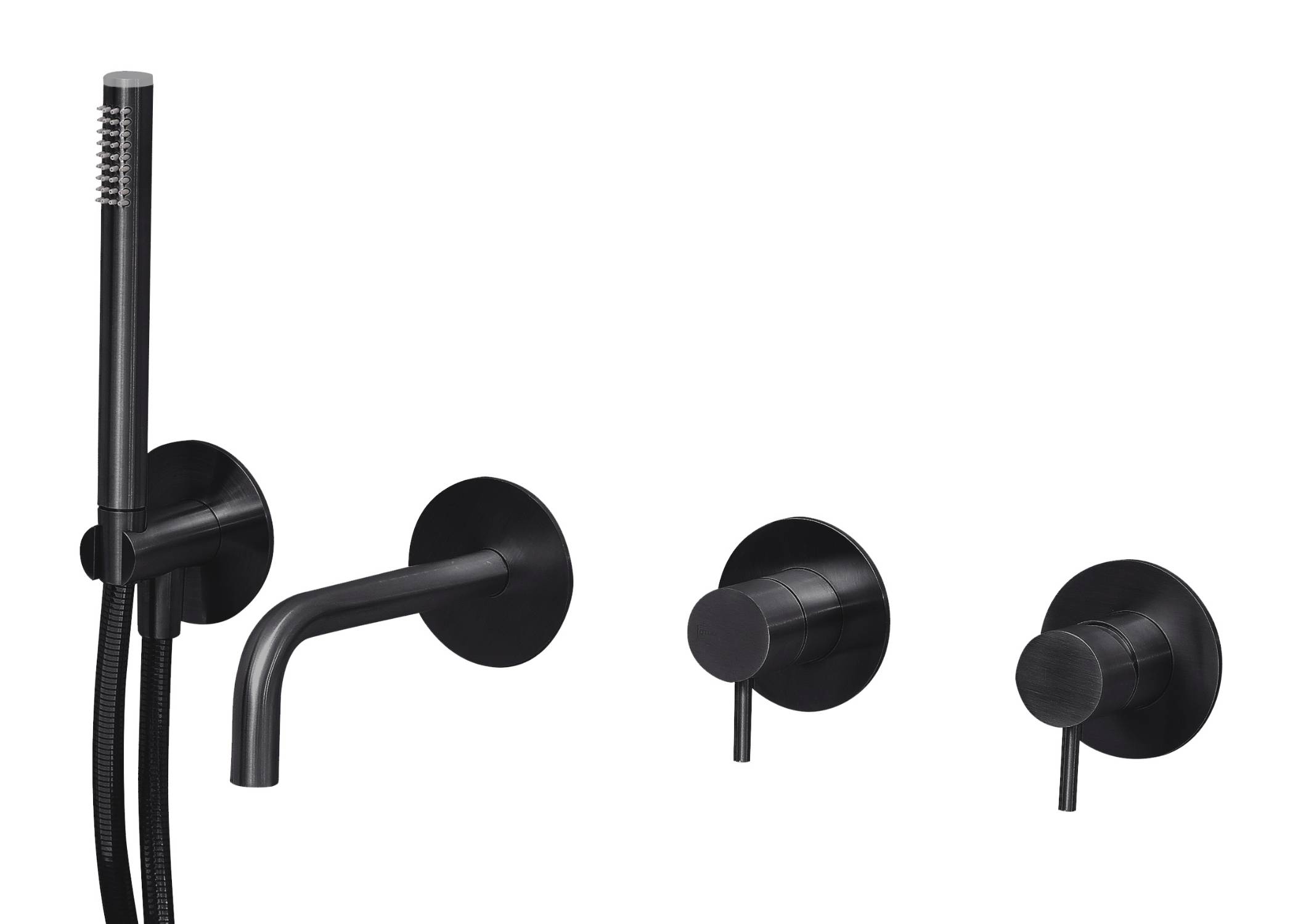

Qtoo collection: Two-way bathtub set w/o thermostat

Name: Qtoo collection: Two-way bathtub set w/o thermostat
Brand: dline
SKU: 3Ky285HLB9JDqg51DWWDgW

Verified by manufacturer 2 months ago

QS3200-190SP

dline

Third party certifications:

WRAS
Certificate type
KIWA BDA
Certificate type
EPD
Certificate type

Built-in two-way bathtub set in stainless steel.

Jump to:

+44 (0)121 3734488 Website

Application

Stainless steel two-way bathtub set. Single lever for wall mounting.

Description

Built-in two-way bathtub set with control units in marine grade stainless steel and body in solid stainless steel to secure low heavy metal content. Single lever for wall mounting. Supplied with ceramic discs and built-in flow-limiting system (5 l/minute). Spout must suit the individual wash basin.

All external parts of the fixture must be manufactured from at least class AISI 316 / EN 1.4404 stainless steel, and all built-in components must be at least class AISI 304 / EN 1.4301 stainless steel. This is to ensure long service life and, due to reduced heavy metal content, ensures cleaner

Features and benefits:

Built-in depth 2 3/4”, 69 mm.
Rose diameter 3 1/2”, 90 mm.
Spout projection 7 15/32”, 190 mm.
Flow rate limited to max. 1.3 gpm, 5.0 L/min.
Spare free flow regulator included.
Lead free compliant.
Conforms to CSA, with minimum 500 000 operation cycles securing long life span.
Easy to install with multi-adjustable installation units.
No factory made connections for extra anti-leakage safety.

General information

Color	Black Copper Gold Silver
Finish	Brushed Polished
Material	Stainless steel
Shape	Other
Length	190 mm Guidance for specification option: Projection.
Warranty description	20 year

Uniclass	Pr_40_20_87_09 Bath tapsPrimary
CAWS	N13/358 Assisted access baths N13/361 Whirlpool baths N13/355 Baths N13/35 Baths

Specification data - Bath taps

Form	Bath mixer tap with shower hose and handspray.
Materials	-
Body	Stainless steel.
Finish and colour	Polished, silver.
Flow rate (maximum)	5 L/min.

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	Europe
Material	Stainless steel
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	76.81 kg CO₂ eq/kg Manufacturer guidance We have fully declared our product and by doing so have now an option to Re-handle at the end of life. All our EPD information is contained within the certificate. By Re-handling at the end of life you will extend the product warranty up to 100 years. Also, the embodied carbon used to produce the product will be reduced by 81%.
Recyclability	100%
