Qtoo collection: Built-in tap 190mm

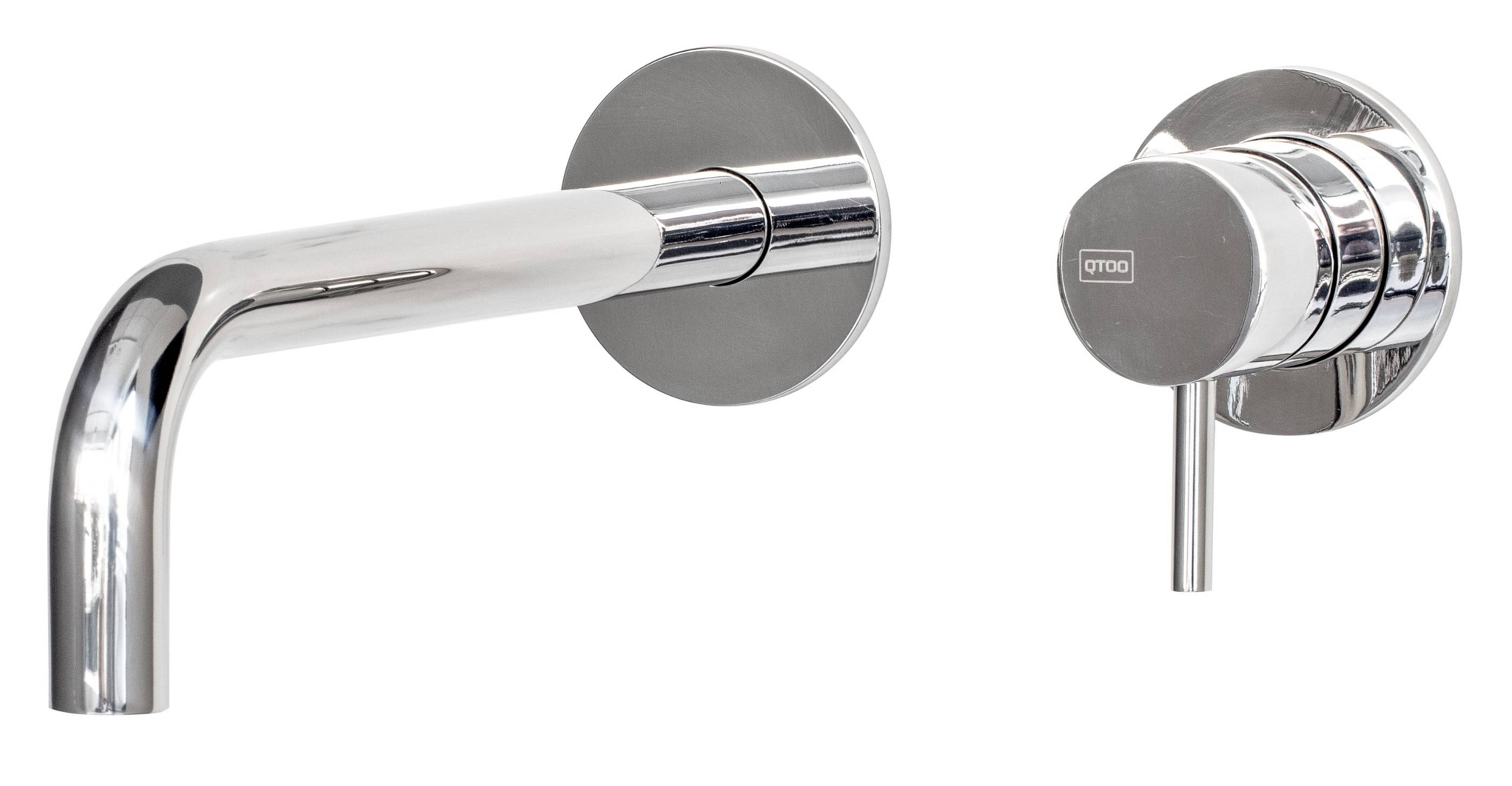

Name: Qtoo collection: Built-in tap 190mm
Brand: dline
SKU: bWY5PvBNPdTefroDUiCnER

Verified by manufacturer 2 months ago

QT3100-190SP

dline

Third party certifications:

KIWA BDA
Certificate type
EPD
Certificate type

Built-in tap in stainless steel.

Jump to:

+44 (0)121 3734488 Website

Application

Stainless steel built-in mixer tap. Single lever for wall mounting.

Description

Built-in tap with control unit in marine grade stainless steel and body in solid stainless steel to secure low heavy metal content. Single lever for wall mounting. Supplied with ceramic discs and built-in flow-limiting system (5 L/min). Spout length must suit the individual wash basin.

All external parts of the fixture must be manufactured from at least class AISI 316 / EN 1.4404 stainless steel, and all built-in components must be at least class AISI 304 / EN 1.4301 stainless steel. This is to ensure long service life and, due to reduced heavy metal content, ensures cleaner.

Features and benefits:

Built-in depth 2 3/4”, 69 mm.
7 15/32”, 190 mm projection.
Fixed spout.
Spout diameter 7/8”, 22 mm.
Build in aerator.
Rose diameter 3 5/32”, 80 mm.
Water flow rate limited to max. 1.3 gpm, 5.0 L/min.
Spare free flow aerator included.
Lead free compliant.
Conforms to CSA, with minimum 500 000 operation cycles securing long life span.
Easy to install with multi-adjustable installation units.
No factory made connections for extra anti-leakage safety.

General information

Color	Black Copper Gold Silver
Finish	Brushed Polished PVD Satin
Material	Stainless steel
Shape	Other
Length	190 mm Guidance for specification option: Projection.
Warranty description	20 year

Uniclass	Pr_40_20_87_98 Washbasin tapsPrimary
CAWS	N13/30 Washbasins N13/335 Washbasins

Specification data - Washbasin taps

Form	Wall-mounted tap.
Materials	-
Body	Stainless steel.
Finish and colour	Polished, silver. Guidance for specification option: Satin, stainless steel.
Flow rate (maximum)	5 L/min.

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	Europe
Material	Stainless steel
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	31.82 kg CO₂ eq/kg Manufacturer guidance We have fully declared our product and by doing so have now an option to Re-handle at the end of life. All our EPD information is contained within the certificate. By Re-handling at the end of life you will extend the product warranty up to 100 years. Also, the embodied carbon used to produce the product will be reduced by 81%.
Recyclability	100%
