Qtoo collection: Built-in sensor tap, 250mm - Built-in sensor tap

Verified by manufacturer 2 months ago

QST3290M

dline Variant:
Third party certifications:
  • EPD

    EPD

    Certificate type

  • WRAS

    WRAS

    Certificate type

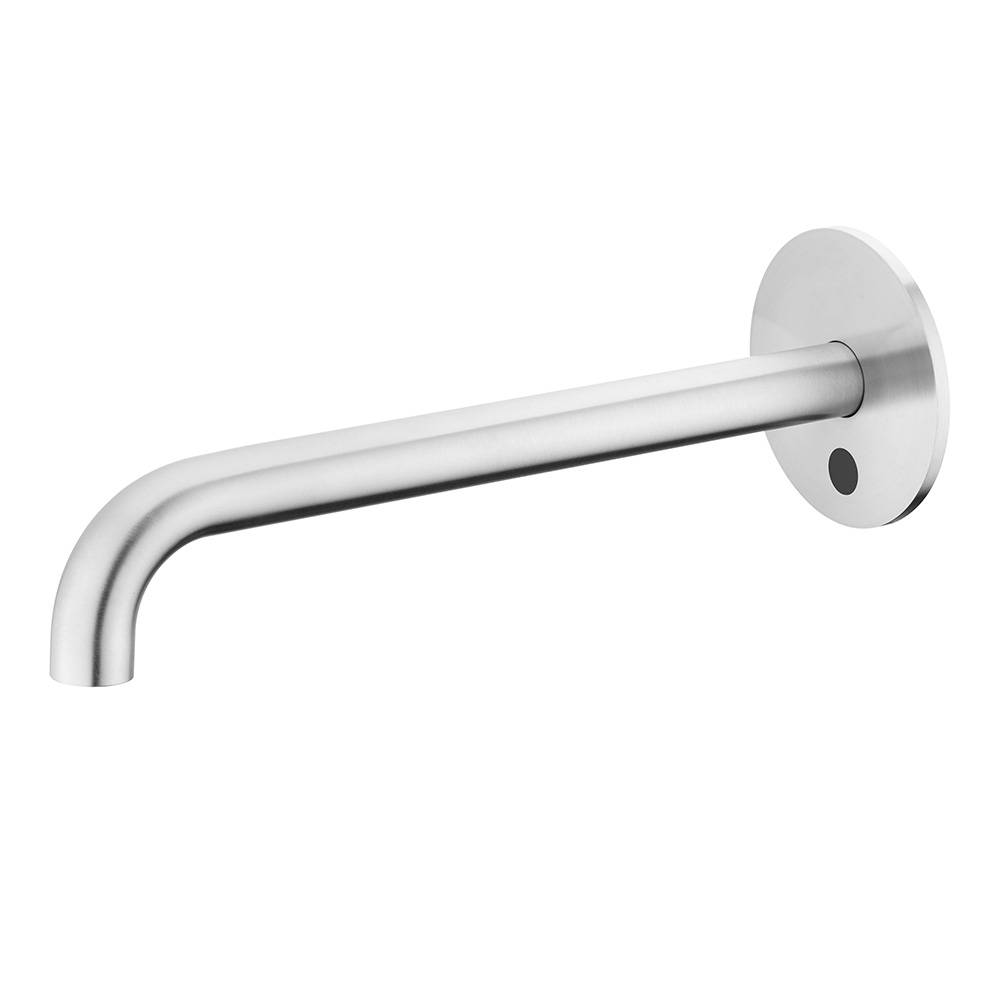

250 mm infrared sensor tap for wall installation.

Jump to:
+44 (0)121 3734488 Website

Application

Stainless steel built-in sensor tap, 250 mm. For commercial bathrooms. Suitable for high traffic areas.

Description

QTOO collection, sensor tap for wall. Manufactured in the highest quality marine grade, AISI 316 stainless steel, protecting against high levels of corrosion and securing cleaner drinking and utility water.


With a battery lifetime of 4.6 – 8.4 years depending on usage and an optional cleaning mode of 60 seconds for the maintenance team, these sensor taps are fully optimised in their innovation, all while embracing the latest advances in motion-activation technology with adjustable sensor parameters. Each piece comes with a Flexbox that is easily installed, accessed and protects the electronic parts.


These taps are a highly sustainable water saver, issuing better control over the water consumption to the building owner.


Features and benefits:

  • Built in aerator.
  • Lead free compliant.
  • Sensor operating detection distance: 50 to 250 mm.
  • Comfort time: 2 seconds (+/- 20%).
  • Security time-out: 30 seconds (+/- 20%).
  • Flow rate 5 L/min (others available upon request).
  • Low battery: 1 blink every 5 seconds (10 days).
  • Empty battery: 1 blink every 5 seconds (until completely empty - and then no water supply).
  • Cleaning mode 60 seconds.
  • Hygiene Flush disabled.
  • Special set parameters on request.
  • 100% recyclable.
  • 20 year guarantee.

General information

Color

Silver

Copper

Grey

Gold

Finish

Satin

Polished

Material

Stainless steel

Guidance for specification option:

AISI 316

Shape

Other

Length

250 mm

Width

90 mm

Guidance for specification option:

Diameter.

Warranty description

20 year

Uniclass

Pr_40_20_87_98 Washbasin tapsPrimary

CAWS

N13/341 Vanity tops with formed washbasins

N13/335 Washbasins

N13/30 Washbasins

Specification data - Washbasin taps

Approval

Water Regulations Advisory Scheme (WRAS)-approved.

Form

Automatic action thermostatic mixer taps.

Materials

-

Body

AISI 316 stainless steel.

Finish and colour

Silver, satin.

Flow rate (maximum)

5 L/minute at 3 bar.

Projection

250 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Material

Stainless steel

Guidance for specification option:

AISI 316

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

18.6 kg CO₂ eq/kg

Manufacturer guidance

We have fully declared our product and by doing so have now an option to Re-handle at the end of life. All our EPD information is contained within the certificate. By Re-handling at the end of life you will extend the product warranty up to 100 years. Also, the embodied carbon used to produce the product will be reduced by 91%.

Recyclability

100

Third party certifications

BIM objects

Platform Compatible Version
IFC
-

1

Revit
-

1

Third party certifications

EPD

EPD

EPD - taps, external fixtures and wastes

WRAS

WRAS

QST3190XXX & QST3290XXX (WRAS)

EPD

EPD

EPD - built-in taps, showers & bathtub sets

EPD

EPD

QST3290 built in sensor tap, 250 mm
