Q-railing Easy Glass Max F - Top Mount

Q-railing Easy Glass Max F - Top Mount

Q-railing

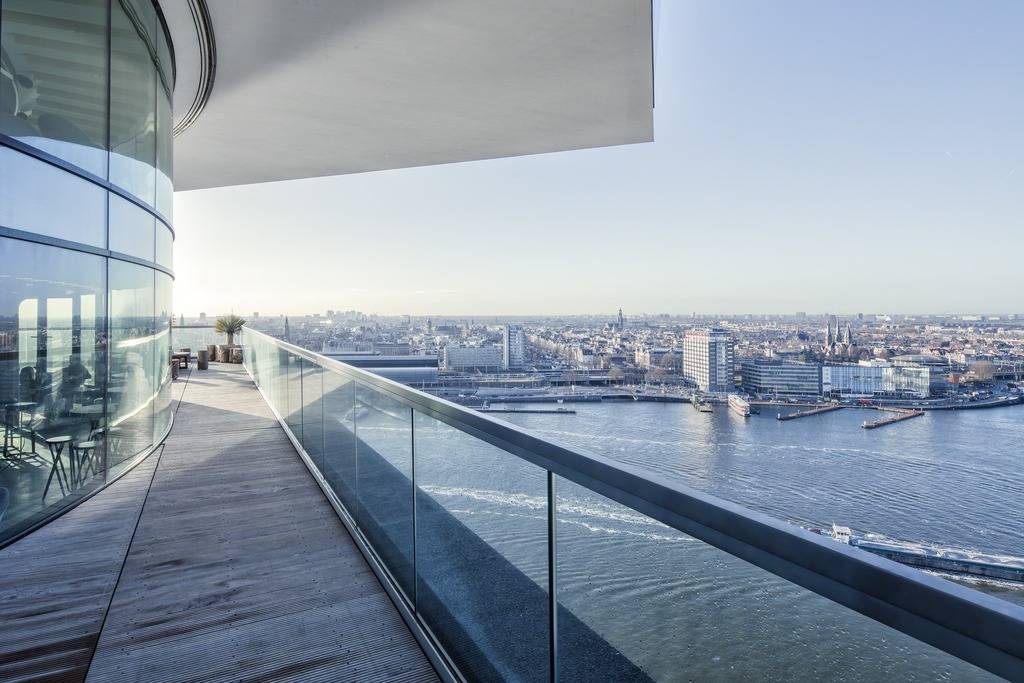

Top fixed, frameless aluminium balustrade system with off-set fixing position capable of achieving UDL loads up to 3KN. Variants in glass specification are required to achieve varying loads.

Jump to:
+44 (0)1782 711676 www.q-railing.com
Application

Suitable for extremely heavy indoor or outdoor use for stairs and balustrades. For large public spaces with demanding safety requirements, such as airports, stadiums and shopping centres.

Description

Balustrade system capable of using varying glass thicknesses from 19–31.52 mm toughened and laminated glass. Top-fixed, in either standard top-mounted or 'F' profile options. Fascia-mounted in either standard fascia-mounted profile or 'Y' Channel. (Hole centres dependent on structure and required loading performance).

Handrails are available in related stainless steel or wood which can sit directly on the top of the glass panels using our rubber insert. A number of diameters and profiles are available in different grades. The system is also available with off-set handrails which are fixed through holes in the glass.

The system has been designed to complement the existing range of Q-railing's high-quality architectural fittings.

Features and benefits:

  • Able to cope with line loads in excess of 5 kN.
  • Complies with worldwide safety and Building Regulations.
  • Aluminium cladding with a stainless steel effect.
  • Uses the Safety Wedge system for easy glass installation.
  • Integrated water drainage.
  • Four different base shoes (two for top-mount and two for fascia-mount) available, which are installed directly onto concrete, without the need for a steel construction.
  • Aluminium base channel for fixing glass (2500 mm long), with various rubber glazing seal options for fixed or adjustable applications.
  • Choice of handrails, including wooden (Beech, Oak lacquered, Beech, P11 stained and lacquered), square, rectangular, circular or elliptical in stainless steel grades 1.4301 (304) or 1.4401 (316), with options for satin or mirror polished surface finish.
  • Glass infill available in different thicknesses, varying from 19–31.52 mm. All glass is bespoke to each specific project.
  • Design criteria 1.5 to 3 kN/m, based on specific test situations.

Applications:

Suitable for extremely heavy indoor or outdoor use for stairs and balustrades. For large public spaces with demanding safety requirements, such as airports, stadiums and shopping centres.

General information

Uniclass 2015

Ss_25_60_05_05 Balustrade and guarding systemsPrimary

CAWS

L30/55 Proprietary balustrades

L30/560 Proprietary balustrades

Specification data - Balustrade and guarding systems

Product Reference

Easy Glass Max

Base channel

-

Top-mount channel

16.6926.000.18 (2500 mm long) Stainless steel effect

16.6926.500.09 (2500 mm long) Stainless steel effect IX

Fascia-mounted channel

16.6935.000.18 (2500 mm long) Stainless steel effect

Accessories

24.6915.030.36 ABS blind bungs

For covering fixing holes.

16.6920.515.18 Aluminium stainless steel effect cladding

F Channel

16.6929.000.18 (2500 mm long) Stainless steel effect

Y Channel

16.6916.000.18 (2500 mm long) Stainless steel effect

16.6920.520.18

Profile available with cladding to the front side.

Glazing infill

Suitable glazing thickness: 19–31.52 mm. Consult manufacturer for details.

Rubber seals

19.6907.919.00 for 19 mm toughened glass

19.6907.922.00 for 21.52 mm toughened laminated glass

19.6907.925.00 for 25 mm toughened glass

19.6907.926.00 for 25.52 mm toughened laminated glass

19.6907.932.00 for 31.52 mm toughened glass

Capping rail

See 'Options' below and insert requirements.

Handrail

-

Internal

13.0117.000.12 – handrail bracket for square rail fixing, 77 mm offset to C/L of handrail, 1.4301 (304) satin

13.0117.042.12 – handrail bracket for 42.4 mm diameter, 77 mm offset to C/L of handrail, 1.4301 (304) satin

13.0117.048.12 – handrail bracket for 48.3 mm diameter, 77 mm offset to C/L of handrail, 1.4301 (304) satin

13.0148.000.12 – handrail bracket for square rail fixing,77 mm offset to C/L of handrail, 1.4301 (304) satin

13.0148.044.12 – Handrail bracket for either 42.4 or 48.3 mm, 77 mm offset to C/L of handrail, 1.4301 (304) satin

13.0900.242.12 – 42.4 mm diameter, wall thickness 1.5 mm, 1.4301 (304) satin 320 grit

13.0900.248.12 – 48.3 mm diameter, wall thickness 1.5 mm, 1.4301 (304) satin 320 grit

13.4900.040.12 – 40 x 40 mm Square, wall thickness 1.5 mm, 1.4301 (304) satin 320 grit

13.4900.041.12 – 40 x 10 mm rectangular, wall thickness 1.5 mm, 1.4301 (304) satin 320 grit

13.9350.042.12 – handrail bracket for 42.4 mm diameter, 107 mm offset to C/L of handrail, 1.4301 (304) satin

13.9350.048.12 – handrail bracket for 48.3 mm diameter, 107 mm offset to C/L of handrail, 1.4301 (304) satin

External

14.0117.000.12 – handrail bracket for square rail fixing, 77 mm offset to C/L of handrail, 1.4401 (316) satin

14.0117.042.12 – handrail bracket for 42.4 mm diameter, 77 mm offset to C/L of handrail, 1.4401 (316) satin

14.0117.048.12 – handrail bracket for 48.3 mm diameter, 77 mm offset to C/L of handrail, 1.4401 (316) satin

14.0148.000.12 – handrail bracket for square rail fixing, 77 mm offset to C/L of handrail, 1.4401 (316) satin

14.0148.044.12 – handrail bracket for either 42.4 or 48.3 mm, 77 mm offset to C/L of handrail, 1.4401 (316) satin

14.0900.242.12 – 42.4 mm diameter, wall thickness 1.5 mm, 1.4401 (316) satin 320 grit

14.0900.248.12 – 48.3 mm diameter, wall thickness 1.5 mm, 1.4401 (316) satin 320 grit

14.4900.040.12 – 40 x 40 mm Square, wall thickness 1.5 mm, 1.4401 (316) satin 320 grit

14.4900.041.12 – 40 x 10 mm rectangular, wall thickness 1.5 mm, 1.4401 (316) satin 320 grit

14.9350.042.12 – handrail bracket for 42.4 mm diameter, 107 mm offset to C/L of handrail, 1.4401 (316) satin

14.9350.048.12 – handrail bracket for 48.3 mm diameter, 107 mm offset to C/L of handrail, 1.4401 (316) satin

Product Options

Fascia mounted channel:

- Accessories:

Profile available with either ABS bungs or aluminium cladding.

Rubber seals:

  • Fixed wedge set (no adjustment).
  • Consult Q-railing test data for glass specification in relation to specific loading criteria required for various building types.

Capping rail:

- Internal specification:

  • 13.6920.042.12 – 42.4 mm diameter, wall thickness 1.5 mm, 1.4301 (304) satin 320 grit.
  • 13.6920.048.12 – 48.3 mm diameter, wall thickness 1.5 mm, 1.4301 (304) satin 320 grit.
  • 13.6920.060.12 – 60.3 mm diameter, wall thickness 1.5 mm, 1.4301 (304) satin 320 grit.
  • 13.6920.040.12 – 40 x 40 mm square, wall thickness 1.5 mm, 1.4301 (304) satin 320 grit.
  • 13.6925.640.12 – 60 x 40 mm rectangular, wall thickness 1.5 mm, 1.4301 (304) satin 320 grit.
  • 13.6920.080.12 – elliptical – breadth: 80 mm, wall thickness 1.5 mm, 1.4301 (304) satin 320 grit.
  • 13.6920.110.12 – elliptical – breadth: 110 mm, wall thickness 1.5 mm, 1.4301 (304) satin 320 grit.
  • 13.6920.042.10 – 42.4 mm diameter, wall thickness 1.5 mm, 1.4301 (304) mirror polished.
  • 13.6920.048.10 – 48.3 mm diameter, wall thickness 1.5 mm, 1.4301 (304) mirror polished.
  • 20.6925.042.40 – 42.4 mm diameter, beech, lacquered.
  • 20.6925.042.43 – 42.4 mm diameter, oak, lacquered.
  • 20.6925.042.41 – 42.4 mm diameter, beech, P11 stained and lacquered.
  • 20.6945.118.40 – edge protection, 18.5 mm internal width, beech lacquered.
  • 20.6945.122.40 – edge protection, 22.5 mm internal width, beech lacquered.
  • 20.6945.118.43 – edge protection, 18.5 mm internal width, oak lacquered.
  • 20.6945.122.43 – edge protection, 22.5 mm internal width, oak lacquered.

- External specification:

  • 14.6920.042.12 – 42.4 mm diameter, wall thickness 1.5 mm, 1.4401 (316) satin 320 grit.
  • 14.6920.048.12 – 48.3 mm diameter, wall thickness 1.5 mm, 1.4401 (316) satin 320 grit.
  • 14.6920.060.12 – 60.3 mm diameter, wall thickness 1.5 mm, 1.4401 (316) satin 320 grit.
  • 14.6920.040.12 – 40 x 40 mm square, wall thickness 1.5 mm, 1.4401 (316) satin 320 grit.
  • 14.6925.640.12 – 60 x 40 mm rectangular, wall thickness 1.5 mm, 1.4401 (316) satin 320 grit.
  • 14.6920.042.10 – 42.4 mm diameter, wall thickness 1.5 mm, 1.4301 (304) mirror polished.
  • 14.6920.048.10 – 48.3 mm diameter, wall thickness 1.5 mm, 1.4301 (304) mirror polished.
  • 20.6945.118.44 – edge protection, 18.5 mm internal width, oak glazed.
  • 20.6945.122.44 – edge protection, 22.5 mm internal width, oak glazed.
  • 14.6940.114.12 – edge protection, 14.4 mm internal width, 1.4401 (316) satin 320 grit.
  • 14.6940.118.12 – edge protection, 18.5 mm internal width, 1.4401 (316) satin 320 grit.
  • 14.6940.122.12 – edge protection, 22.6 mm internal width, 1.4401 (316) satin 320 grit.
  • 14.6940.126.12 – edge protection, 26.5 mm internal width, 1.4401 (316) satin 320 grit.
  • 16.6940.118.18 – edge protection, 18.5 mm internal width, aluminium stainless steel effect.
  • 16.6940.122.18 – edge protection, 22.5 mm internal width, aluminium stainless steel effect.
  • 14.6940.030.12 – U-profile, internal width 24 mm, 1.4401 (316) satin 320 grit.
  • 14.6340.040.12 – U-profile, internal width 34 mm, 1.4401 (316) satin 320 grit.
  • 16.6945.013.18 – U-profile, internal width 13.25 mm, aluminium stainless steel effect.
  • 16.6945.018.18 – U-profile, internal width 18 mm, aluminium stainless steel effect.
  • 16.6940.022.18 – U-profile, internal width 22 mm, aluminium stainless steel effect.
  • 16.6920.040.18 – 40 x 40 mm Square, 24 mm internal width, aluminium stainless steel effect.
  • 16.6920.040.09 – 40 x 40 mm Square, 24 mm internal width, aluminium stainless steel effect IX.
  • 16.6920.654.08 – 65 x 40 mm rectangular profile, aluminium matt Silver effect.
  • 16.6920.654.09 – 65 x 40 mm rectangular profile, aluminium stainless steel effect IX.
  • 16.6920.654.00 – 65 x 40 mm rectangular profile, aluminium raw finish.
  • 16.6920.042.18 – 42.4 mm diameter, aluminium stainless steel effect.
  • 16.6920.042.09 – 42.4 mm diameter, aluminium stainless steel effect IX.

All cap rails have rubber gaskets to suit extrusion width, which varies in accordance with the thickness of the glass. All cap rails have pre-made accessories, including 90 degree corner, adjustable angles and in-line connectors, which are compatible with Q-railing fittings.

Handrails:

All handrails have pre-made accessories including 90 degree corner, adjustable angles and in-line connectors, which are compatible with Q-railing fittings.
