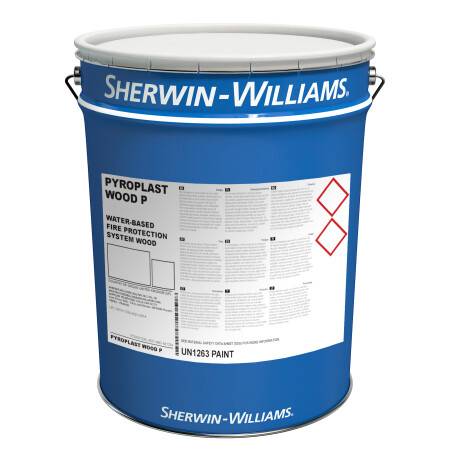

Pyroplast® Wood P - Water-Based Fire Protection Coating

Verified by manufacturer 14 days ago

Sherwin-Williams

Water-based fire protection coating system for wood. A one-pack, ecological water-based fire protection coating for interior use which forms a carbon char under the effect of heat.

Jump to:
+44 (0)1204 521771 Website

Application

  • Used as reduction of ignitability of softwood and hardwood ≥10 mm thickness and other timber derivatives, e.g. plywood, chipboard, fibre insulation board, hardboard and also on veneering ≥13 mm thickness.
  • Insulates against heat, checks fire, prevents propagation of fire and spread of flame and diminishes flue gas temperatures.

It should not be used in areas of high humidity, heat sources or on surfaces where significant physical impact is likely such as floors, stairs, etc.

Description

Water-based fire protection coating system for wood.

A one-pack, ecological water-based fire protection coating for interior use which forms a carbon char under the effect of heat.

Free of halogens and aromatic solvents.

General information

Color

White

Finish

Silk

Material

Water-based

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_35_31_68_29 Flame-retardant coatingsPrimary

CAWS

M60/16 Decorative wood stain/ varnish/ preservative

M60/18 Special coating

M60/195 Special coating

M60/175 Protective coating

M60/160 Decorative woodstain/ varnish/ preservative

Specification data - Flame-retardant coatings

Classification data

Reaction to fire rating (indicative)

Tested to BS EN 13501-1.

Solvent

Water-based, one-pack.

Guidance for specification option:

  • Cleaner/ thinner: Water (for cleaning).
  • Thoroughly clean tools and equipment immediately after use.
  • Do not thin Pyroplast® Wood P Primer and Pyroplast® Wood P.

VOC content (maximum)

0 g/L determined practically in accordance with Protective Coatings Directive of German Paint Industry Association (VdL-RL 04).
0 g/L calculated from formulation to satisfy EC Solvent Emissions Directive.
0 g/kg calculated from formulation to satisfy EC Solvent Emissions Directive (UK).

Colour

White.

Finish

Manufacturer's standard.

Primer

Pyroplast® Wood P Primer.

Testing

Independently fire tested and approved to European classification EN 13501-1 (ref: K-3067/776/14-2).

Application method

Airless spray, brush or roller.

Application temperature

10–40°C.

Guidance for specification option:

Substrate temperature requirements.

  • Should be at least 3°C above the dew point.
  • Material temperature shall be above + 15°C.
  • Relative air humidity shall be below 80%.
  • During application and drying of total Pyroplast® intumescent coating system including Pyroplast® Top WB as well as transportation special protection measures must be taken against weathering.

Manufacturer guidance

If higher temperatures occur, consult manufacturer for further assistance.

Drying time

Pyroplast® Wood P Primer, to touch: 3–8 hours; to recoat: 6–8 hours.
Pyroplast® Wood P, to touch: 6 hours; to recoat: 24 hours (with itself) or 48 hours (with top coat).

Manufacturer guidance

At 20°C and 60% relative humidity.

Flash point

>101°C.

Density

1.3 kg/L.

Guidance for specification option:

Pyroplast® Wood P Primer and Pyroplast® Wood P.

Sustainability data

Material

Water-based

Literature

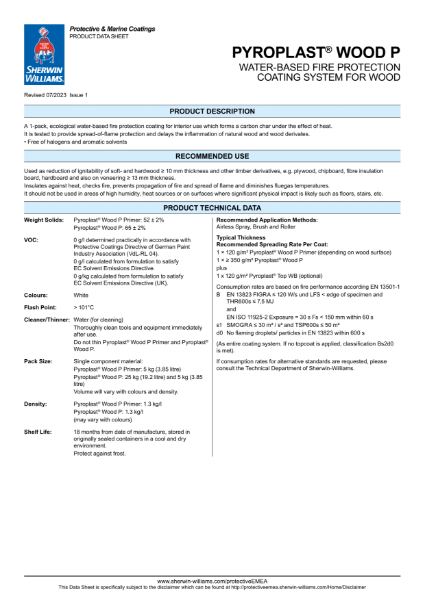

Pyroplast® Wood P Product Data Sheet

Pyroplast® Wood P Product Data Sheet
