Pyroguard Advance - Fire Safety Glass

Verified by manufacturer 4 months ago

2-EI30/16-3

Pyroguard UK Ltd Variant:

High-performance cuttable fire safety glass with gel interlayer technology.

Jump to:
+44 (0) 1942 710 720 Website

Application

  • Can be used in an IGU for additional performance requirements.
  • Certified for use in timber, GDC, composite and in steel profiles.
  • Approved for use according to national and European approvals in a single frame, glazed screens and doors.

Description

Pyroguard Advance is a range of stockable and cuttable fire safety glass. Providing EW classification with a fire resistance of 30 or 60 minutes, Pyroguard Advance can also deliver exceptional fire protection at larger certified pane sizes, with a high tolerance to variations in glazing media – all helping customers to meet the demands of increasingly challenging fire safety applications.


Features and benefits:

  • High-performance cuttable fire safety glass with a new gel interlayer technology.
  • 7, 8 and 11 mm products available.
  • Tailor-made solutions for composite door applications.
  • Tested and certified with a market-wide range of economical solutions for timber and fire door applications.
  • Offers superior levels of UV stability than other market leading cuttables.
  • Optimal light transmission properties.
  • Manufactured in the UK and stocked nationwide.
  • The 7 and 8 mm products are extremely easy to process and can be cut by hand – no saws required.
  • Provides a complete range of cuttable products from one single source.
  • Compatible with the widest range of timber glazing and fire door systems and approved with many cost-effective glazing systems.
  • Meets architectural demands for larger glazed spans in modern designs and provides an additional safety margin with regular applications.
  • Suitable for both internal and external applications.
  • Provides optimal levels of natural daylight for wellbeing and energy reduction.


General information

Color

Clear

Finish

Glazed

Material

Glass

Shape

Rectangle

Square

Other

Circle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_25_71_33_46 Laminated glass sheetsPrimary

CAWS

L10/10 Wood windows

L10/15 Wood windows

L10/20 Steel windows

L10/25 Aluminium windows

L10/33 Proprietary windows

L10/400 Composite windows

L10/350 PVC-U windows

L10/330 Aluminium windows

L10/310 Steel windows

L10/210 Wood windows

L20/420 Wood doorsets

L20/30 Wood doors

L20/480 Doorsets

L20/530 Sliding folding external doors

L20/525 Sliding pocket doors

L20/520 Sliding doors

L20/410 Wood doorsets

L20/250 Wood panelled doors

L20/460 Frameless glass doors

L20/280 Doors

L20/270 Wood doors

L20/430 Wood doorsets

L20/55 Doorsets

L20/230 Wood flush doors

Specification data - Laminated glass sheets

General requirements

Glass generally.

Third-party certification

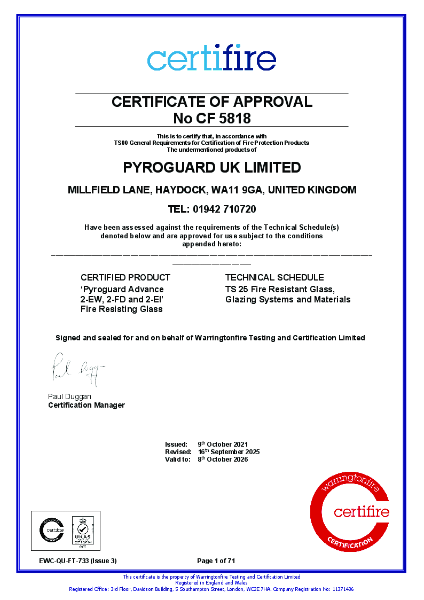

CE/UKCA certificate of conformity: 0336-CPR-9134; 8511-CPR-ABC 1026.

Laminate glass type

Fire and safety.

Thickness

16 mm (-1/+1.4).

Outer leaf

Annealed glass.

Mid-leaf

Annealed glass.

Inner leaf

Annealed glass.

Interlayer to glass leaves

Manufacturer's standard.

Sealing

At perimeter to prevent deterioration due to water or glass joint sealant.

Body colour

Clear.

Coating

-

Colour or effect

Clear.

Performance requirements

-

Fire resistance

-

Integrity

To EN 13501-2, E 60 minutes.

Insulation

To EN 13501-2, I 30 minutes.

Radiation

To EN 13501-2, W 60 minutes.

Light

Transmittance 81%.

Manufacturer guidance

To EN 410.

Solar control

To EN 410, 0.67.

Manufacturer guidance

g Value.

Impact resistance

To BS EN 12600, 1B1.

Weight

38 kg/m².

Sound reduction

To EN 140-3, 40 (-1;-5) Rw (C;Ctr).

U-value

To EN 673, 5.4 W/m²K.

Manufacturer guidance

Ug value.

Operating temperature range

-50/+50℃.

Reaction to fire

Not applicable.

Sustainability data

Country of material origin

Europe

Country of product manufacture

Europe

Material

Glass

Similar products from Pyroguard UK Ltd

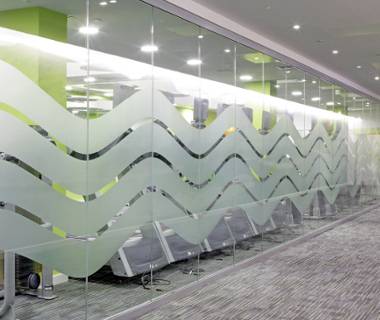

Pyroguard Infinity - seamless glass butt-joint applications - Glass to Glass Partitioning

Pyroguard Infinity - seamless glass butt-joint applications - Glass to Glass Partitioning

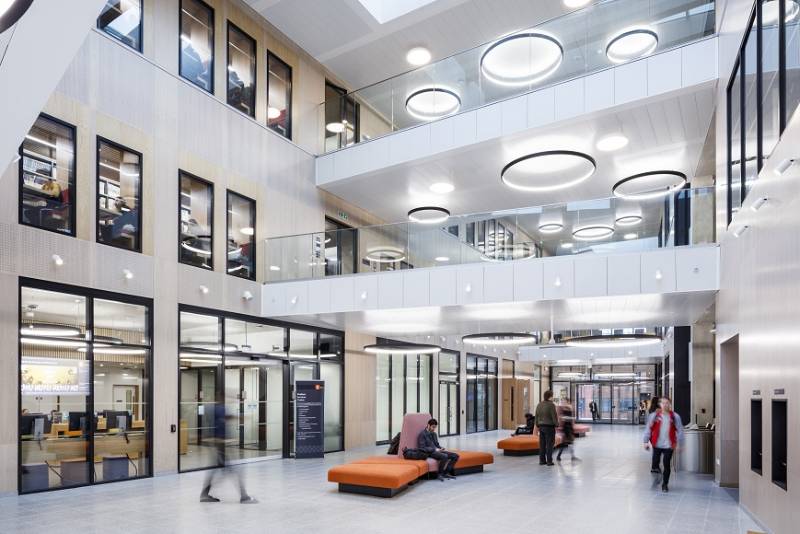

Pyroguard Protect EI - Glass with Gel Filled Interlayers

Pyroguard Protect EI - Glass with Gel Filled Interlayers

Pyroguard Rapide EW - Laminated Glass with Resin Interlayers

Pyroguard Rapide EW - Laminated Glass with Resin Interlayers

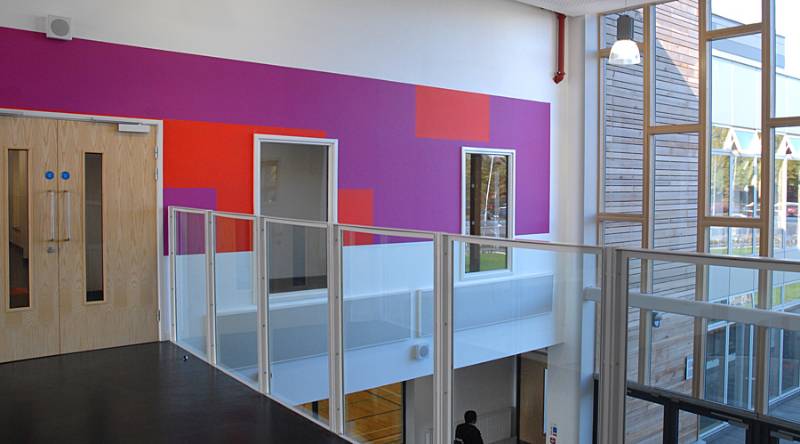

Pyroguard Rapide Plus EI - Laminated Glass, Silicate Interlayers
