PX11 - Electronic proximity access control

Verified by manufacturer 5 months ago

IP Door Entry Ltd Third party certifications:
  • Secured By Design

    Secured By Design

    Certificate type

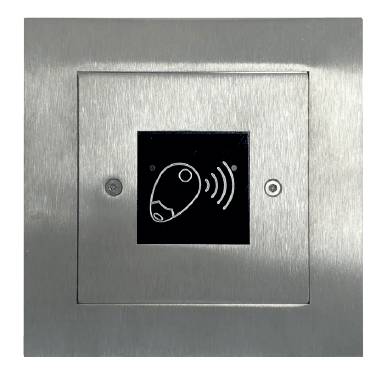

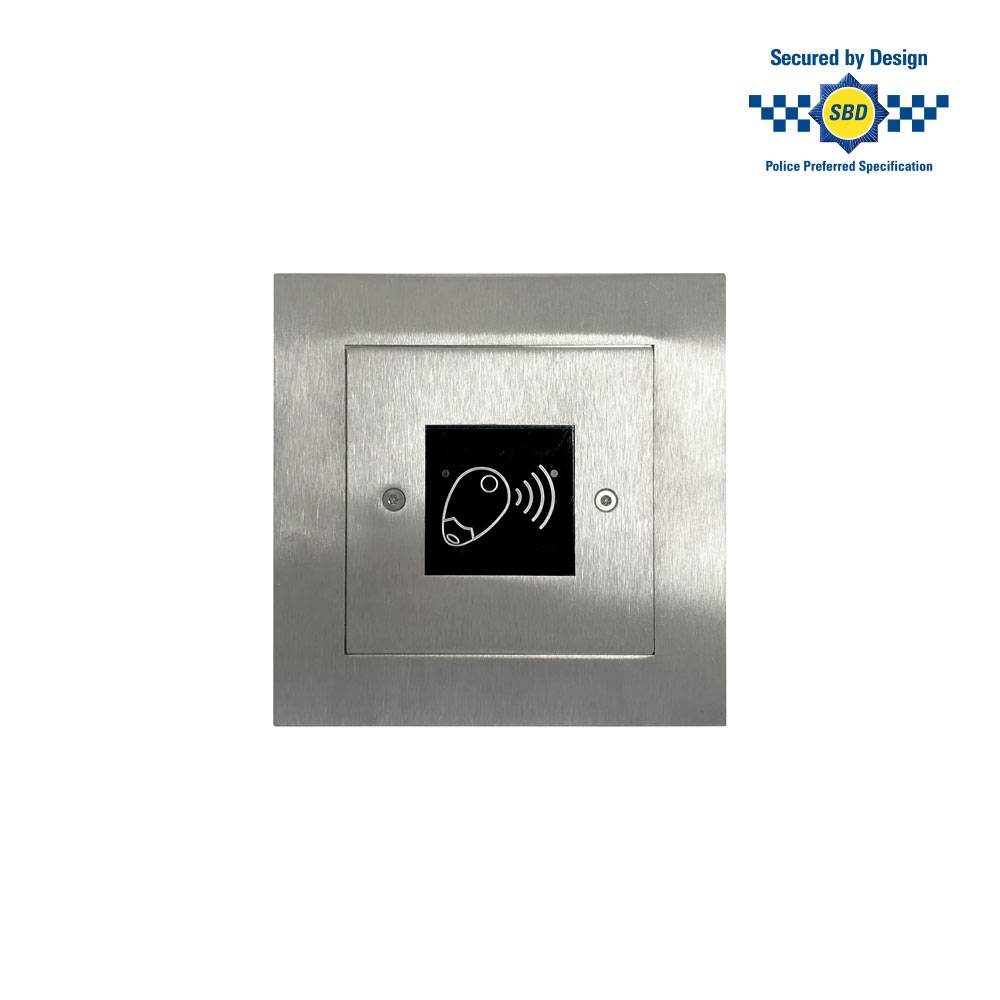

Anti-vandal MIFARE Proximity Readers. Proximity reader for external application where toughness is required. Programmable via BATICONNECT CLOUD.

Jump to:
+44 08000 156 496 Website

Application

Suitable for all locations where toughness is required, for example; car parks, bin and bike stores, and all external applications.

Description

External, anti-vandal proximity readers replace the old-fashioned mechanical keys or low-security fob readers with vandal-proof, robust and innovative proximity readers. Control building access and manage fobs remotely, easily and from anywhere.

General information

Color

Silver

Finish

Brushed

Material

Stainless steel

Steel

Shape

Square

Length

85 mm

72 mm

Width

72 mm

85 mm

Height

2 mm

35 mm

Warranty description

Two year

Uniclass

Pr_75_30_30_57 Multiple-technology readersPrimary
Pr_75_30_30_67 Proximity card readers
Pr_75_30_30_03 Access control units
Ss_75_40_02_11 Card access control systems

CAWS

W90/130 Electronic access control system

W90/130 Electronic access control system

W90/363 Access control units

W90/365 Intercom entrance panels

W90/365 Intercom entrance panels

Specification data - Multiple-technology readers

Security grading

To BS EN 60839-11-1, Grade 1.

Environmental classification

To BS EN 60839-11-1, Class IV.

Material and finish

Brushed stainless steel.

Colour

Silver.

Impact protection (minimum)

IK09.

Communication interface

RS-485.

Operating frequency

13.56 MHz.

Integral keypad

Not required.

Mounting position

Flush.

PX11-1GF.

Surface.

PX11-MK1GS.

Visual indication

Illuminated LED.

Audio status indication

Audio que.

Ingress protection

IP55.

Third party certifications

Secured By Design

Secured By Design

SBD Member Cert Y1 - IP Door Entry Ltd

Literature

IPDE BATICONNECT CLOUD Remote Management

IPDE BATICONNECT CLOUD Remote Management

Proximity Reader Range

Proximity Reader Range
