PVC Vinyl To Tile
Verified by manufacturer 6 months ago
EFU080
EFU080

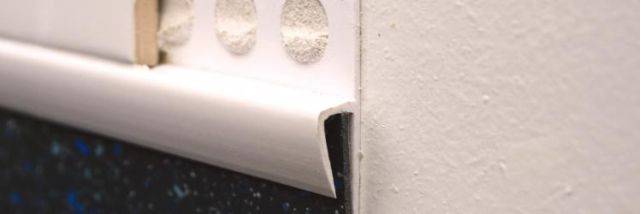

PVC vinyl to tile skirting.
Application
For neat transition between soft skirting and ceramic tiles.
Description
PVC profiles offer a neat transition between soft skirting and ceramic tiles. The cavity on the EVT profile allows for the protection of the floor covering and the ceramic tile.
To suit the growth in larger format tiles the EVT profile is available in 8 and 12 mm. The EVC is a similar more economical profile only available in 8 mm.
The EFU is a co-extruded profile with a flexible face allowing vinyl as this has 2 mm to be used. The EVU is the same as the EFU except the profile is unpunched and therefore designed to sit on top of the tile.
General information
Color | White Grey Black |
Material | PVC |
Length | 2500 mm |
Width | 15 mm |
Height | 12 mm |
Uniclass | |
CAWS | M40/10 Natural stone covering to M40/110 Tiling to M40/115 Natural stone covering to M40/12 Mosaic to M40/120 Mosaic to M40/5 Tiling to M41/110 Terrazzo tiling M41/120 In situ terrazzo M41/130 Precast terrazzo M41/140 Marble tiling M50/770 Skirtings M50/80 Skirtings P20/170 Proprietary P20/30 Proprietary |
Product range |
Specification data - Edge trims
Material | PVC. |
Colour or pattern | White 01. |
Profile | EFU. |
Size | 2500 x 15 x 12 mm.Guidance for specification option: (L x W x D). |
Sustainability data
Recyclability | Non Recyclable Plastic |
Literature

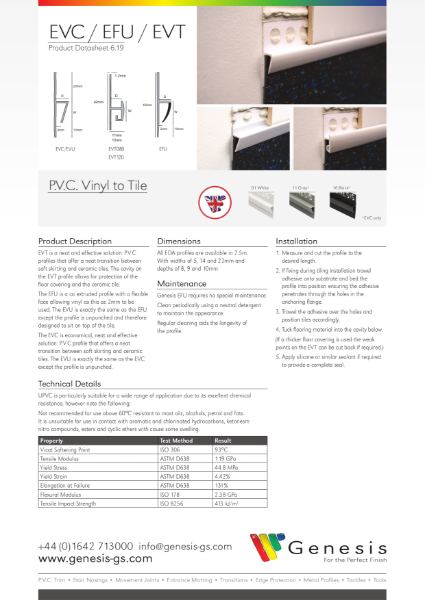

EVC/EFU/EVT Datasheet
