PVC-U Clad Beading
Verified by manufacturer 5 months ago

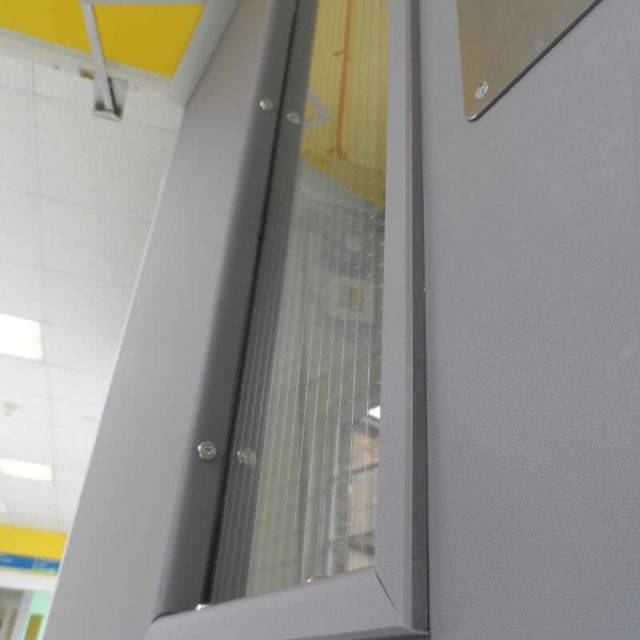

PVC-01-BD PVC-u Clad Beading
PVC-01-BD PVC-u Clad Beading
Replaces existing damage-prone timber beading.
Application
For replacing damage-prone timber beading that stands proud of the door face. Any door that requires face protection may also require beading protection.
Description
Clad beading formed from the PVC-U Impact Protection Sheet over a Sapele hardwood core for added durability.
Features and benefits:
- Fire rated to 30 and 60 minutes.
- Anti-bacterial properties including Hygienilac®.
- Easy to fit and maintenance free.
- Available in a wide range of colours.
- Ensures staff and patient safety in the event of a fire by maintaining fire integrity of the door allowing safe evacuation.
- Gives bespoke beading protection reducing ongoing maintenance costs.
- Pin or screw fix giving instant protection from damage.
- Aesthetically pleasing, match with existing décor and Impact Protection Sheet.
- Timber can be supplied by Intastop (PVC-01-BD) or customer supplied (PVC-02-BD).
General information
Color | White Cream Grey Blue Green |
Finish | Smooth Textured |
Material | PVC-U |
Shape | Rectangle |
Length | 600 mm 1200 mm |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/410 Wood doorsets L20/420 Wood doorsets L20/430 Wood doorsets L20/480 Doorsets L20/55 Doorsets |
SKU Code | PVC-01-BD, PVC-02-BD |
Product range |
Specification data - Unplasticized polyvinyl chloride (PVC-U) finishing trims
Fire performance | |
Fire resistance | FD30. FD60. Guidance for specification option: Only on certain door cores using Intastop own evidence. |
Colour and finish | Polar White/ Textured. Guidance for specification option: LRV: 84.02. Ivory/ Textured. Guidance for specification option: LRV: 73.85. Pale Grey/ Textured. Guidance for specification option: LRV: 51.38. Snow White/ Textured. Guidance for specification option: LRV: 73.07. Sand/ Textured. Guidance for specification option: LRV: 60.08. Pale Green/ Textured. Guidance for specification option: LRV: 37.32. Slate Grey/ Textured. Guidance for specification option: LRV: 13.09. Poseidon Blue/ Textured. Guidance for specification option: LRV: 27.13. Olive Green/ Textured. Guidance for specification option: LRV: 18.34. Pale Blue/ Textured. Guidance for specification option: LRV: 31.03. Twilight Blue/ Textured. Guidance for specification option: LRV: 8.25. Steel Grey/ Textured. Guidance for specification option: LRV: 39.59. Storm Grey/ Textured. Guidance for specification option: LRV: 21.66. Misty Grey/ Textured. Guidance for specification option: LRV: 12.55. Light Beige/ Textured. Guidance for specification option: LRV: 44.85. Clear. White/ Smooth. Red Wine/ Smooth. Red/ Smooth. Medium Grey/ Smooth. Ocean Blue/ Smooth. Deep Pink/ Smooth. Lime Green/ Smooth. Black/ Smooth. Avocado/ Smooth. Orange/ Smooth. Light Beech/ Wood effect. Stanley Oak/ Wood effect. Walnut/ Wood effect. Brushed Aluminium/ Special finish. |
Anti-microbial coating | Hygienilac. |
Type | Intastop timber. |
Literature
Data Sheet - PVC-U Clad Beading
