Pureglaze™ - Concealed Frame Glazing Products

Name: Pureglaze™ - Concealed Frame Glazing Products
Brand: Cantifix Ltd
SKU: mdPJHMxFfVzV1LMRNzn2PS

Verified by manufacturer 2 days ago

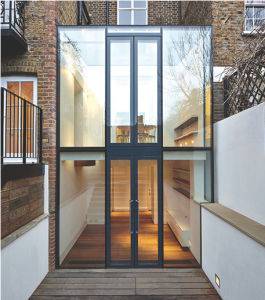

Pureglaze - pivot door

Our Pureglaze range is distinguished by one simple but elegant feature: the framework is contained within the glass itself, like a window within a window. Available in a range of designs, this is a ra

Jump to:

Request BIM

+44 (0)20 8203 6203 Website

Application

Glazing, including doors, windows and panels. For use as partitions, ventilation, access and even to control the level of water in a swimming pool (guillotine model).

Description

Available in a range of designs, this is a range of glazing products which features completely uninterrupted glass, as the frame is sandwiched between the panes themselves.

Features and benefits:

The framework is contained within the glass itself, like a window within a window.
Available as a sliding or pivot door, and even a window within a window.
Offers seamless luxury to any home.
Once the framework is set within the triple glazed pane, a subtle and stylish ceramic band is painted around the panel, concealing the frame.

General information

Color	Clear Other Guidance for specification option: Any RAL (printed perimeter bands).
Finish	Smooth
Material	Aluminium Glass
Shape	Rectangle Square Other
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Five year

Uniclass	Pr_25_71_57_60 Partition panelsPrimary Pr_30_59_24_02 Aluminium doorsets Pr_30_59_98_02 Aluminium window units
CAWS	L10/560 Glazed screen systems L10/330 Aluminium windows L20/480 Doorsets L10/25 Aluminium windows L20/55 Doorsets

Specification data - Partition panels

Classification data
Unit size	-
Thickness	Manufacturer's standard.
Partition height (nominal)	Guidance for specification option: Consult manufacturer for options and insert requirements.
Width (nominal)	Guidance for specification option: Consult manufacturer for options and insert requirements.
Framing, fixing points and joints	Thermally broken 48 mm aluminium framing profile, 38 mm high, RAL 9005 Black. Thermally broken 48 mm aluminium framing profile, 51 mm high, RAL 9005 Black. Manufacturer guidance Aluminium profiles bonded into a recess created within the outer and inner panes. PVC clip-ons are also black as standard.
Glazed panels	-
Type	-
Door arrangement	-
Type	Doorset system. Guidance for specification option: Please contact Cantifix for details.
Other features	57 mm printed perimeter bands, colour. Guidance for specification option: Insert colour requirements. 75 mm printed perimeter bands, colour. Guidance for specification option: Insert colour requirements.
Options	None. Low iron glass on non-coated panes. Solar control (Guardian SN 70) coating. Laminate pane for safety and/or security. Protective aluminium angles to all glass edges. PAS 24 type tested (with SGP laminate outer pane).
Frame colour/ finish	Guidance for specification option: Powder coated; insert colour requirements.
Air permeability	Manufacturer's standard. Guidance for specification option: Consult manufacturer for details.
Watertightness	Manufacturer's standard. Guidance for specification option: Consult manufacturer for details.
Thermal performance	Manufacturer's standard. Guidance for specification option: Consult manufacturer for details.
Light Transmittance (Tv)	Manufacturer's standard. Guidance for specification option: Consult manufacturer for details.
Security	Manufacturer's standard. Guidance for specification option: Consult manufacturer for details.
