PURe® Slide Lift & Slide Door

Name: PURe® Slide Lift & Slide Door
Brand: Senior Architectural Systems Ltd
SKU: 6uvCBaTN9Ao4chTAhHdAuu

Verified by manufacturer 17 days ago

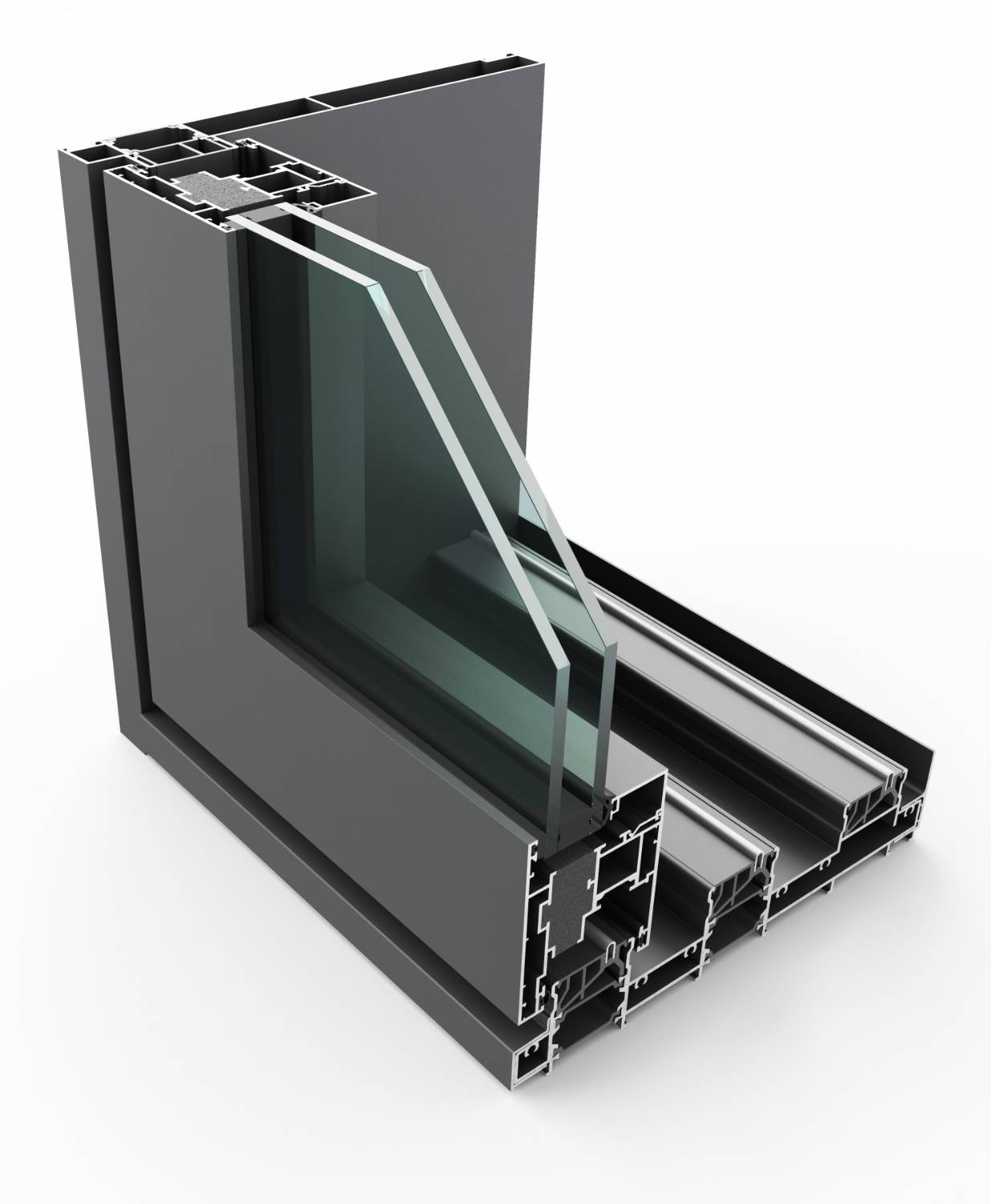

PURe® SLIDE Lift & Slide Door System Double Track - OXX

Senior Architectural Systems Ltd

Robust, enhanced performance lift and slide track door system.

Jump to:

BOS

+44 (0)1709 772600 Website

Description

Lift and slide door system available with a single, double or triple track offering enhanced weathering performance and multiple fixed/ opening combinations.

Features and benefits:

Innovative PUR thermal break.
Precision engineering to glide effortlessly open.
Full flexibility with heights up to 3000 mm.
Easy to fabricate, install and adjust.

Size limitations:

Minimum frame height = 1900 mm.
Maximum frame height = 3000 mm.
Minimum door Sash Height = 1816 mm.
Maximum door Sash Height = 2916 mm.
Minimum door Sash width = 800 mm.
Maximum door Sash width = 3005 mm.
Maximum door Sash weight = 200 Kg.
Width to height ratio 1:2.5 Maximum.

General information

Finish	Powder-coated Anodized
Material	Aluminium
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Pr_30_59_24_80 Sliding door and partition setsPrimary
CAWS	H11/135 Doors L20/520 Sliding doors L20/60 Doors

Product range	PURe® SLIDE

Specification data - Sliding door and partition sets

Performance	External.
Arrangement	Multi-leaf bottom rolling.
Track system	Double track.
Door leaves	-
Finish and colour	Anodized. Guidance for specification option: Insert colour requirements, 25 µm (minimum), satin or polished finish available. Polyester powder coated. Guidance for specification option: Insert colour requirements, 40 µm standard and 60 µm available for marine environments.
Operation	Manual.

Air permeability	600 Pa.
Wind load resistance	1200 Pa.
Watertightness	600 Pa.
Thickness	28–52 mm.
Glazing unit	Double. Triple.
SecurityRating	To PAS24: 2012; Q-Mark fully certified.
