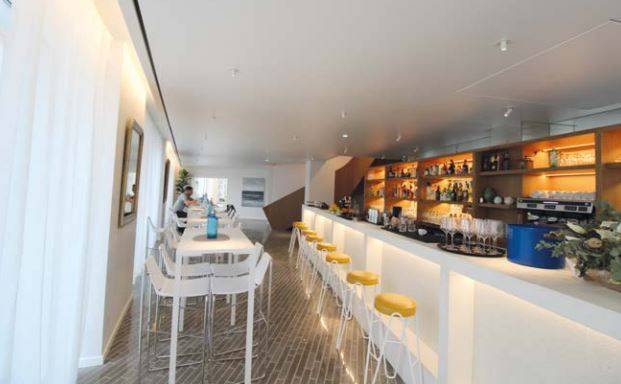

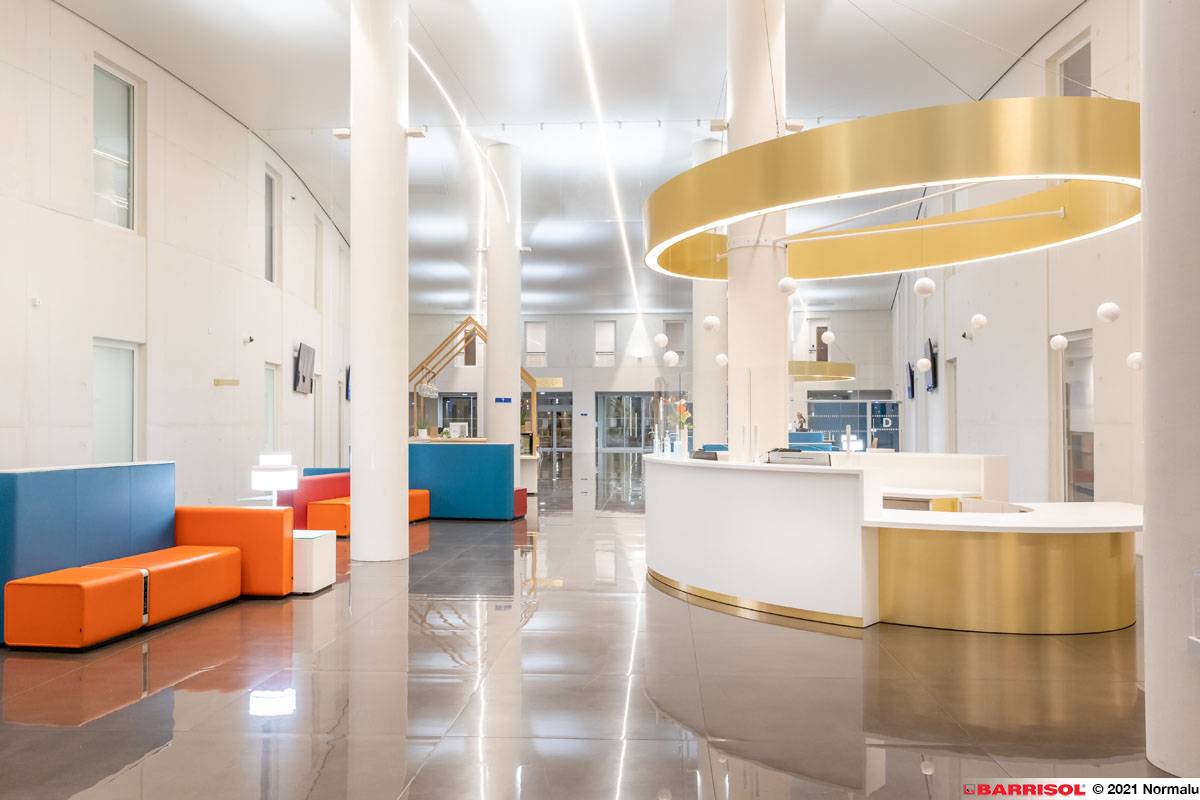

Pure Clim (UVC Air Purification) - Stretch ceiling UVC air-conditioning

Verified by manufacturer 3 months ago

Barrisol

Heating, air conditioning, ventilation and air purification solutions using Barrisol Biosourced® sheet.

Jump to:
+33 3 89 83 20 20 Website

Application

Stretch ceilings for all surfaces.

Description

Heating, air conditioning, ventilation and air purification solutions using Barrisol Biosourced® sheet. Developed within the framework of a partnership between Carrier and Barrisol, the Clim® and Pure Clim® systems combine the best of air handling and stretch ceiling techniques


100% recyclable, the Barrisol® stretch ceiling is a durable product (longevity of more than 20 years). It is also safe, guaranteed without lead or cadmium, classified B-s1, d0 for its fire resistance and awarded with a class A+ rating for emissions (VOC) in the interior air.


The patented Clim® profile makes it possible to generate several peripheral slot widths from 12–30 mm. Its admissible power, almost

unlimited, of 600 W/m² in heating and 550 W/m² in cooling allows it to cover the needs for heating and air-conditioning under all the latitudes of the globe


Features and benefits:

  • Supply via terminal unit or air handling unit
  • Hybrid thermal diffusion by radiation and convection
  • Ventilation of rooms
  • Acoustic and/or light sheet
  • Possibility of sound diffusion
  • Possible incorporation of any technical equipment
  • No unsightly technical elements visible
  • Frees up walls and spaces in living areas
  • Optimizes plenum heights
  • Avoids dead zones and point source airflow which can favour the transport and proliferation of of viruses and bacteria
  • Classified A+ (no emission of volatile toxic substances) volatile toxic substances) and B-s1, d0 (fire rating)
  • Sound Absorption
  • Very small temperature difference at any point of the room
  • Fast and responsive system to achieve the desired temperature
  • No draughts
  • Thermal comfort Class A cold and Class A warm according to ISO 7730
  • Indoor air disinfection by UVC radiation
  • Eco-responsible (less energy, less material)
  • Saves on fan consumption due to low air pressure drop.

General information

Color

Black

White

Other

Beige

Blue

Show more

Finish

Anti-microbial

Other

Bespoke.

Material

Vinyl

Biosourced Vinyl.

Shape

Circle

Oval

Triangle

Square

Rectangle

Show more

Length

Bespoke

Width

Bespoke

Height

Bespoke

WarrantyDescription

Ten year

Uniclass

Ss_30_25_22_30 Fabric membrane ceiling systemsPrimary

CAWS

H90/140 Internal single layer fabric system

Specification data - Fabric membrane ceiling systems

Ceiling support

BXSCLIM LED.

LED separator for ceiling

BXSCLIM312P.

Aluminum perforated profile, gap 12 mm

BXSCLIM424P.

Aluminum perforated profile, gap 24 mm

BXSCLIM532P.

Aluminum perforated profile, gap 32 mm


BXSCLIM825.

BXSCLIM825.

LED separator for ceiling

MC1XMS.

Non-perforated aluminum profile, gap 20, 25 or 30 mm (insert requirements)

MC1XMSP.

Perforated aluminum profile, gap 20, 25 or 30 mm (insert requirements)

MC2XMS.

Aluminum profile, gap 20, 25 or 30 mm (insert requirements)

MP12.

Aluminum flap shutter, 12 mm

MP24.

Aluminum flap shutter, 24 mm

MP32.

Aluminum flap shutter, 32 mm

Ceiling fabric

Stretch fabric membranes

System accessories

Carrier 42-NH.

  • Very low noise level
  • Modular horizontal mounting
  • Static pressure up to 100 Pa
  • Low energy consumption
  • Power from 1.0 kW to 17.0 kW


Carrier 42-BJ.

  • Low energy consumption
  • Static pressure up to 250 Pa
  • Power from 3.6 kW to 6.8 kW

Carrier 42-EP.

  • Thinnest terminal unit on the market (150 mm)
  • Static pressure up to 100 Pa
  • Low energy consumption
  • Power from 0.5 kW to 5 kW

Carrier 42-GR.

  • Installation in a cupboard or technical room
  • Low energy consumption
  • Static pressure up to 400Pa
  • Power from 2.8 kW to 4.1 kW

Carrier 42-NL.

  • Very low noise level
  • Modular horizontal mounting
  • Static pressure up to 100 Pa
  • Low energy consumption
  • Power from 1.0 kW to 17.0 kW

Integrated suspension.

Light Lines® integration.

Light.

luminaire integration.

Colour

Other colour/ print available upon request.

BEB 01 Concrete effect.

BEK 01 Brick effect.

BER 02 Marble effect.

BEW 09 Wood effect.

BOL 01 White lacquer.

Show more

Materials

Biosourced vinyl.

Sustainability data

Contains Red List materials

No

Country of material origin

France

Country of product manufacture

France

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

1.82 kg CO₂ eq/kg

Recyclability

100%

Recycled content

80 %

BIM objects

Platform Compatible Version
Revit
-

1
