Pull Handles - Arched Back Style Pull Handle - Pull Handle

Name: Pull Handles - Arched Back Style Pull Handle - Pull Handle
Brand: Consort Architectural Hardware
SKU: nZL6c7tvXHUTtRB6bgyAmo

Verified by manufacturer 10 days ago

Product certifications:

Premium collection arched back pull handles in back-to-back, bolt through and secret fix options.

Jump to:

Application

Suitable for timber, steel, aluminium and glass door applications.

Premium collection arched back pull handles.

Features and benefits:

Back-to-back, bolt through and secret fix configurations available.
Choice of finishes.
Suitable for timber, steel, aluminium and glass door applications.
Lock tight grub screw to ensure products stays firmly fixed once installed on the door.
PVD finishes are coated with an anti-fingerprint coating to ensure your finish continues to look great even in use.

Color	Silver Black Gold Bronze Other
Finish	Satin Polished
Material	Stainless steel
Shape	Other
Length	750 mm
Width	25 mm
Height	750 mm Guidance for specification option: Between centres: 600 mm.
Warranty description	25 year

Uniclass	Pr_30_36_59_64 Pull handlesPrimary
CAWS	P21/42 Pull handles P21/641 Pull handles

SKU Code	CHEP75.BB, CHEP75.BT, CHEP75.SF

Product range	Premium Range Door Handles and Levers

Classification data

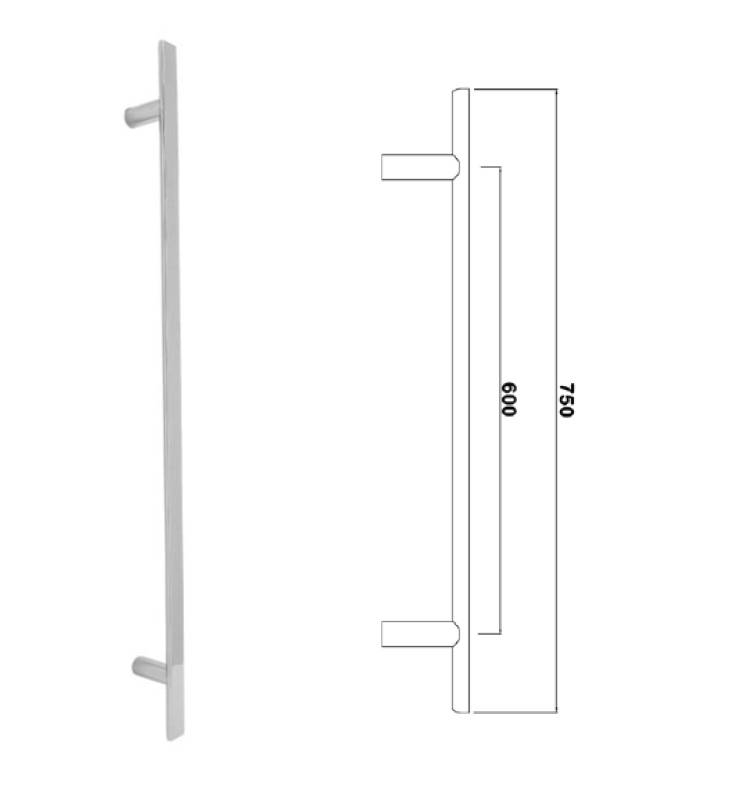

Form	Straight bar with stand-off spacers.
Distance between centres	600 mm.
Material and finish	SSS - grade 316 satin stainless steel. PSS - grade 316 polished stainless steel. DUO - grade 316 satin/ polished stainless steel. SVB - grade 304 satin PVD, black. Guidance for specification option: Coated with an anti-fingerprint coating to ensure the finish continues to look great even in use. SVG - grade 304 satin PVD, gold. Guidance for specification option: Coated with an anti-fingerprint coating to ensure the finish continues to look great even in use. SVZ - grade 304 satin PVD, bronze. Guidance for specification option: Coated with an anti-fingerprint coating to ensure the finish continues to look great even in use. Other. Guidance for specification option: On request. Consult manufacturer for options and insert requirements.
Colour	As finish.

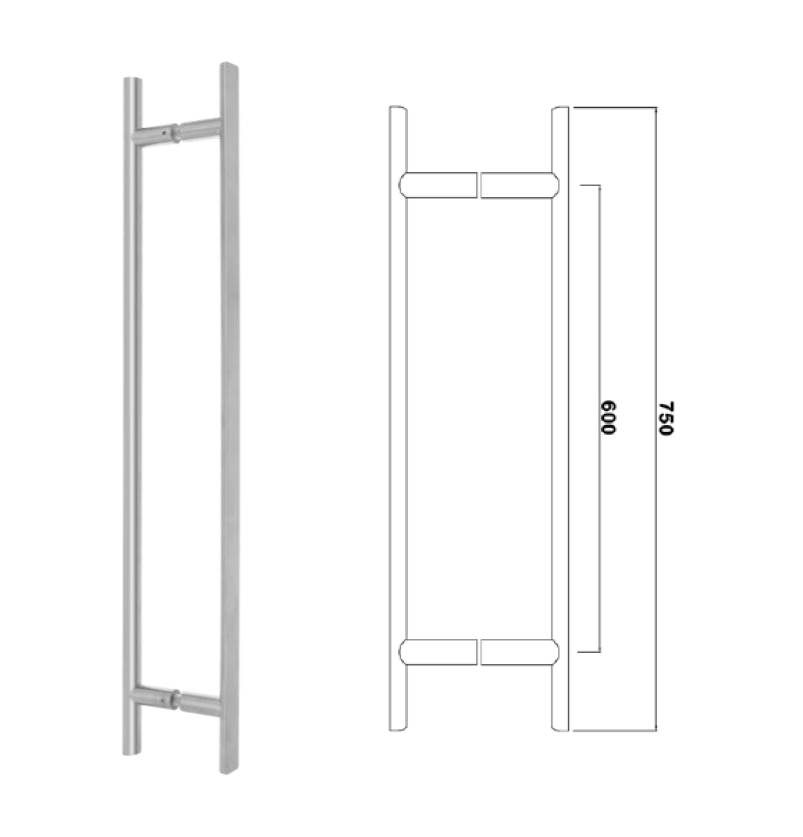

Mounting	Back-to-back fixing (BB). Bolt through (BT). Secret fix (SF).
Overall height	750 mm.

Contains Red List materials	No
Material	Stainless steel
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Certified
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/kg) Stage:A1–A3 ('Production stage') Normalised unit : 0 (kg CO₂ eq/kg) Declared unit : 0 Lower emissions
Recyclability	95%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
