Pull Handle Cranked Guardsman ASH120/ ASH520/ ASH620 - Pull Handle
Verified by manufacturer 5 months ago

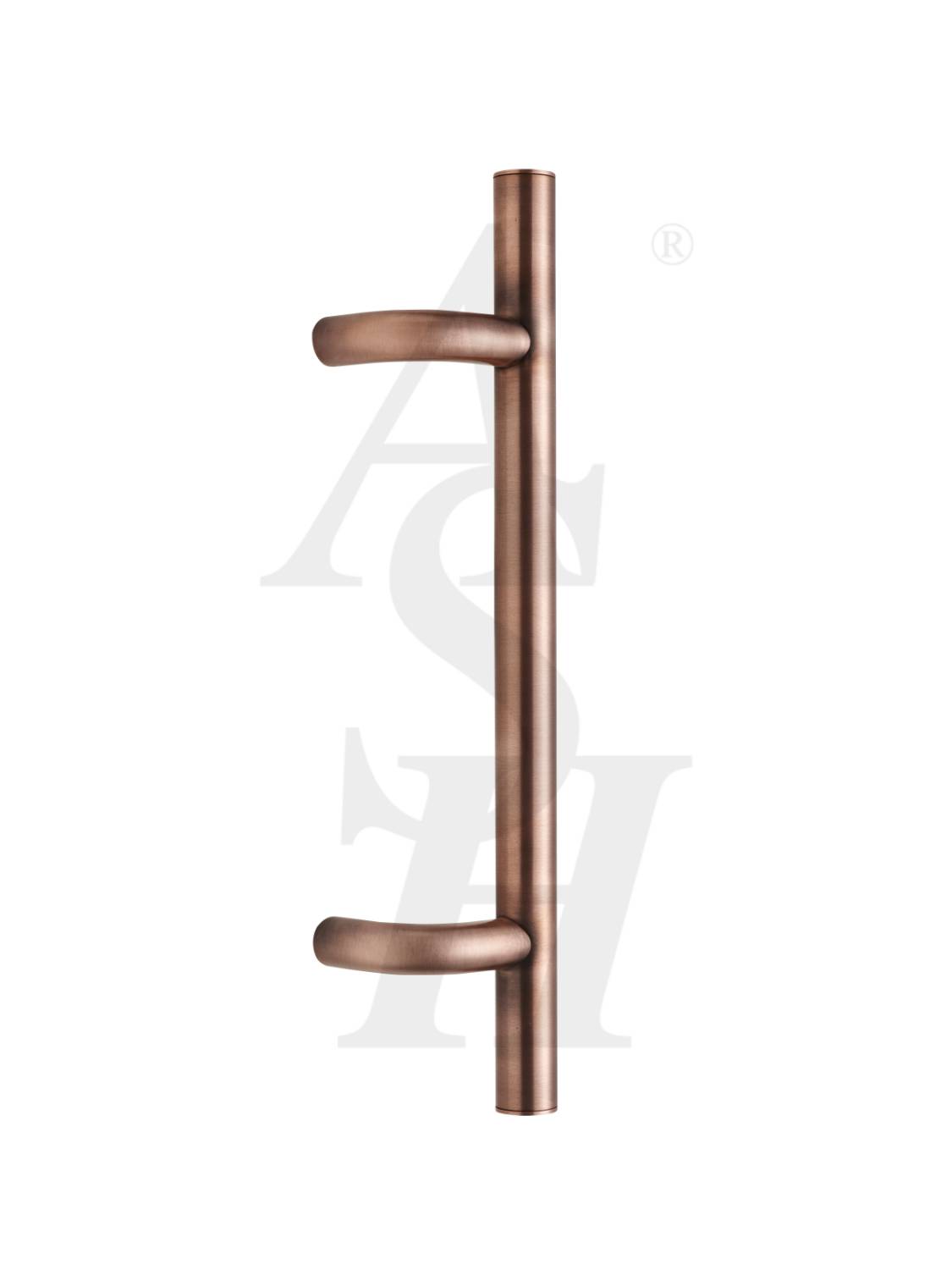

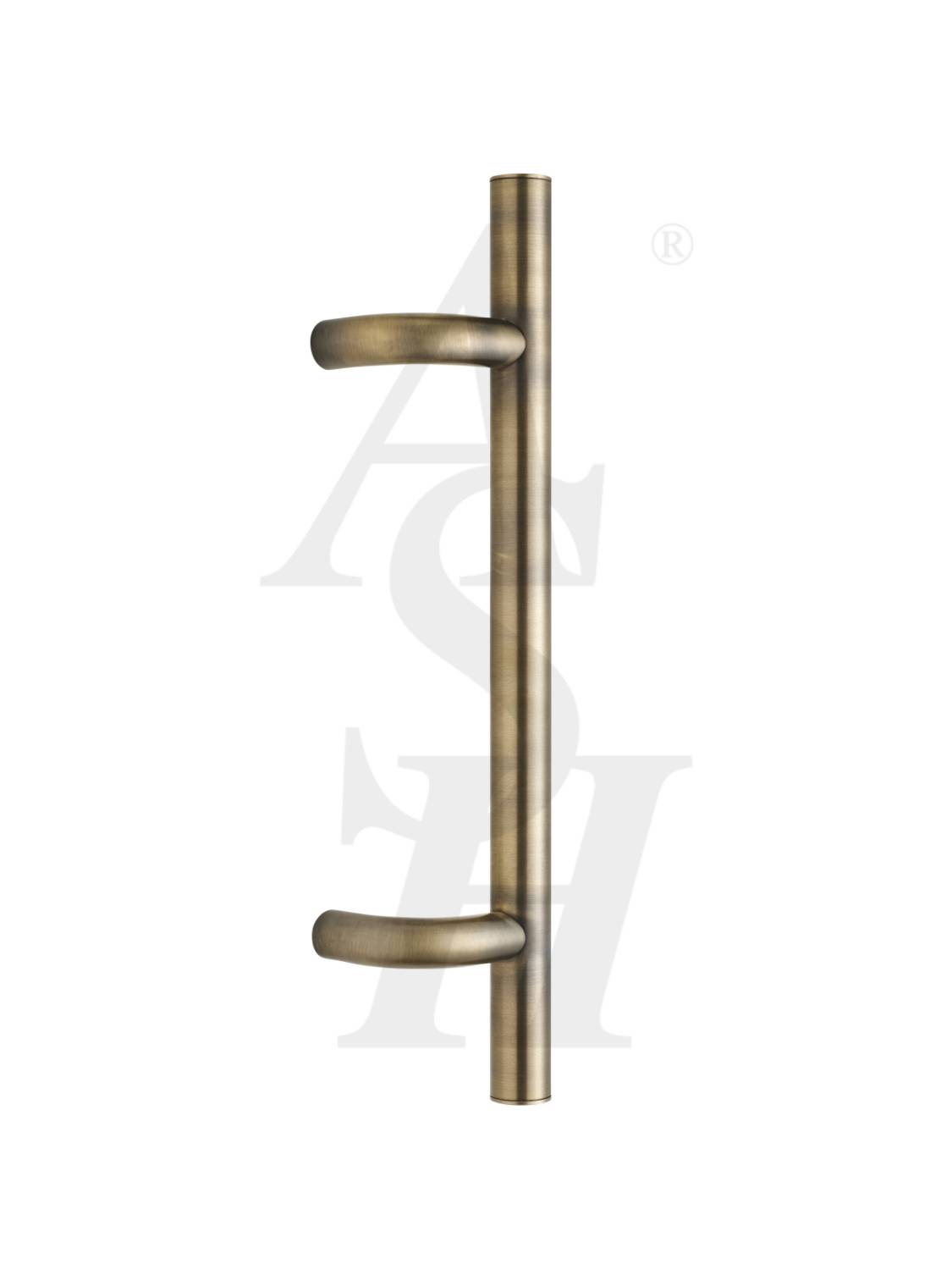

ASH120 Door Pull Handle
ASH120 Door Pull Handle
Straight tubular pole door pull handle with 90° return to door mountings available with a timber grip or leather insert
Application
- Aluminium doors.
- Timber doors.
- Glass doors.
- Commercial doors.
Description
Straight tubular pole door pull handle with 90° return to door mountings available with a timber grip or leather insert.
The handle is available in a number of diameters, door fixing centres and finishes and comes complete with appropriate fixings to suit the door thickness.
These door pull handles can be manufactured to any specified centres and the over-run at the ends can be made to suit requirements.
General information
Color | Brown Bronze Black Gold Silver |
Finish | Oil rubbed Powder-coated Satin Polished |
Material | Timber Metal Brass Bronze Copper |
Shape | Circle |
Length | Bespoke |
Width | 19 mm 25 mm 32 mm 38 mm 45 mm |
Height | Bespoke |
Warranty description | 20 year |
Uniclass | |
CAWS | P21/42 Pull handles P21/641 Pull handles |
Specification data - Pull handles
Form | Straight tubular pole. |
Diameter | 19 mm.25 mm.32 mm.38 mm.45 mm.50 mm.Bespoke.Manufacturer guidanceGrip size. |
Distance between centres | Manufacturer guidanceAvailable 250–2500 mm dependent on grip size. 85 mm overrun. Overrun can be adjusted if required. Extra fixing points may be required on some sizes. Contact manufacturer's technical department for assistance. |
Material and finish | Bronze anodised 1 (BA1).Guidance for specification option: Anodised. Bronze anodised 3 BA3).Guidance for specification option: Anodised. Bronze anodised 5 (BA5).Guidance for specification option: Anodised. Bronze anodised 7 (BA7).Guidance for specification option: Anodised. Bronze anodised 9 (BA9).Guidance for specification option: Anodised. Satin anodised (SAA).Guidance for specification option: Anodised. Satin brass (SB).Guidance for specification option: Brass. Polished brass (PB).Guidance for specification option: Brass. Peened brass (PEB).Guidance for specification option: Brass. Antique brass (AB).Guidance for specification option: Brass. Bronze patina (BP).Guidance for specification option: Brass. Weathered brass (WB).Guidance for specification option: Brass. Hammered satin brass (HSB).Guidance for specification option: Brass. Hammered polished brass (HPB).Guidance for specification option: Brass. Hammered antique brass (HAB).Guidance for specification option: Brass. Hammered bronze patina (HBP).Guidance for specification option: Brass. Hammered weathered brass (HWB).Guidance for specification option: Brass. Bronze powder coated 1 (BPC1).Guidance for specification option: Bronze powder coat. Bronze powder coated 3 (BPC3).Guidance for specification option: Bronze powder coat. Bronze powder coated 5 (BPC5).Guidance for specification option: Bronze powder coat. Bronze powder coated 7 (BPC7).Guidance for specification option: Bronze powder coat. Bronze powder coated 9 (BPC9).Guidance for specification option: Bronze powder coat. Satin copper (SCP).Guidance for specification option: Copper. Polished copper (PCP).Guidance for specification option: Copper. Peened copper (PECP).Guidance for specification option: Copper. Antique copper (ACP).Guidance for specification option: Copper. Weathered copper (WCP).Guidance for specification option: Copper. Hammered satin copper (HCP).Guidance for specification option: Copper. Hammered polished copper (HPCP).Guidance for specification option: Copper. Hammered antique copper (HACP).Guidance for specification option: Copper. Hammered weathered copper (HWCP).Guidance for specification option: Copper. Satin black PVD (PVD.SBLK).Guidance for specification option: PVD. Polished black PVD (PVD.PBLK).Guidance for specification option: PVD. Satin brass PVD (PVD.SB).Guidance for specification option: PVD. Polished brass PVD (PVD.PB).Guidance for specification option: PVD. Satin copper PVD (PVD.SC).Guidance for specification option: PVD. Polished copper PVD (PVD.PC).Guidance for specification option: PVD. Satin gold PVD (PVD.SG).Guidance for specification option: PVD. Polished gold PVD (PVD.PG).Guidance for specification option: PVD. Satin stainless (SS).Guidance for specification option: Stainless. Polished stainless (PS).Guidance for specification option: Stainless. Peened stainless (PES).Guidance for specification option: Stainless. |
Colour | As material and finish. |
Mounting | Fixing configuration dependent on customers’ requirements. Consult manufacturer for details. |
Projection | 65–95 mm (dependent on grip size). Guidance for specification option: 89–138 mm throw. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature
ASH120 Product Data Sheet
ASH620 Product Data Sheet
ASH520 Product Data Sheet
