Application

The product provides protection from water vapour ingress and radon gas.

Description

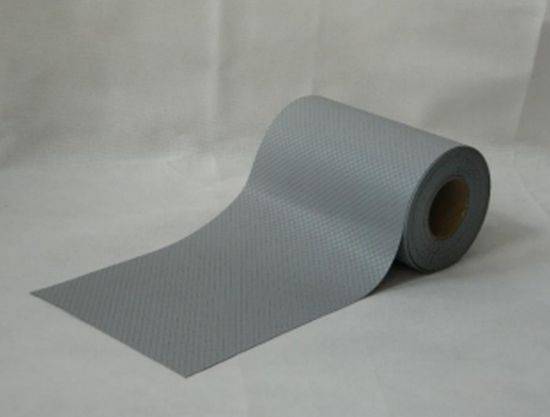

A high-performance, try-polymer damp-proof course (dpc).

Features and benefits:

  • British Board of Agrément (BBA)-approved.
  • Taped or heat-welded system.
  • Complies with BS EN 14909.
  • Highly puncture and tear-resistant.
  • Superior mortar adhesion, due to the prominent embossing.
  • Inert and will not react to any acid or alkaline environment that it is laid on.
  • Weathering will not occur when product is installed.

Applications:

The product provides protection from water vapour ingress and radon gas.

General information
Uniclass 2015
Pr_25_57_21_35 Gas-resistant damp-proof coursesPrimary
Specification data - Gas-resistant damp-proof courses
Product Reference

PUDLO DPC

Accessories

PUDLO GB Lap Tape

PUDLO GB Tape

Welding gun and accessories (if heat-welding the dpc)

Standard product features

Size (l x w):

20 000 x 100–1200 mm.

Thickness:

0.6 mm.

Technical characteristics:

  • Mass per unit area: 520 g/m².
  • Resistance to tearing: 725 N.
  • Watertightness (2 kPa): Pass.
  • Durability (artificial ageing): Pass.
  • Durability (alkali resistance): Pass.
  • Resistance to low temperature: -20°C.
  • Shear strength: 0.14, 0.34 or 0.52 N/mm²; consult literature for details.

Third party certifications
  • British Board of Agrément (BBA) - certficate
