PSH Mobility Scooter Storage and Charging Hub

Name: PSH Mobility Scooter Storage and Charging Hub
Brand: bvfC45fWv1jEwseecK4Fqh
SKU: hxZZF39ZLzV9rdTPCBtCd7

metroSTOR® (a brand of Streetspace)

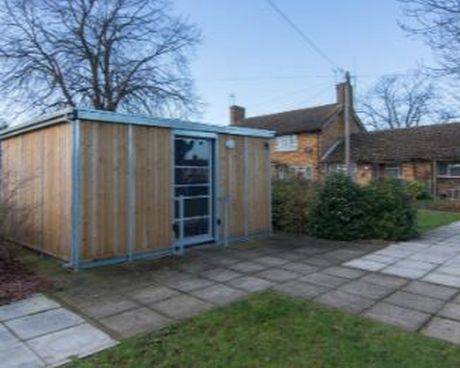

Scooter storage and charging hub for up to 16 scooters.

Jump to:

+448450750760 www.metrostor.net

Application

For the storage and charging of mobility scooters in a single accessible location.

Description

Scooter storage and charging hub for up to 16 scooters.

Features and benefits:

Durable construction, with a fully welded steel frame manufactured in accordance with BS EN 1090, and galvanized to BS EN 1461.

Provides a scooter storage and charging hub solution for 2–16 scooters.

Door panel module allows for multiple configurations within the unit.

Range of manual locking, mechanical or powered keypad and powered door control options.

Supplied pre-wired with integrated charging point and interior lighting.

Limited fire risk due to the availability of fire-resistant cladding options to provide Euroclass A1 fire resistance. Panels are also manufactured from materials of limited combustibility to provide 30 minutes fire resistance in accordance with BS 476.

A range of cladding and finish options are available to suit project requirements.

Fire performance:

Fire retardant options for tongue and groove v-jointed (TGV) and sheet type cladding have a fireboard MgO internal liner with either treated timber or coated steel panel outer to provide Euro-class A1, UK class 0 reaction to fire. The panels are manufactured from materials of limited combustibility throughout to provide 30 minutes' fire resistance to BS 476.

Where fire retardant properties are required for an open-spaced cladding type, SE timber plank can be specified with a treatment process providing a Euro-class B, UK class 0 Reaction to Fire classification.

Applications:

For the storage and charging of mobility scooters in a single accessible location.

General information

Uniclass 2015	Pr_20_65_78_15 Composite panelled sheltersPrimary
CAWS	B91/395 Storage unit

Specification data - Composite panelled shelters

Product Reference	PSH Mobility Scooter Storage and Charging Hub
Type	PSH30.26 Fits two mobility scooters. Width: 2550 mm. PSH30.38 Fits three mobility scooters. Width: 3750 mm. PSH30.50 Fits four mobility scooters. Width: 4950 mm. PSH30.62 Fits five mobility scooters. Width: 6150 mm. PSH30.74 Fits six mobility scooters. Width: 7350 mm. PSH30.86 Fits seven mobility scooters. Width: 8550 mm. PSH30.98 Fits eight mobility scooters. Width: 9750 mm. PSH48.26 Fits four mobility scooters. Width: 2550 mm. PSH48.38 Fits six mobility scooters. Width: 3750 mm. PSH48.50 Fits eight mobility scooters. Width: 4950 mm. PSH48.62 Fits ten mobility scooters. Width: 6150 mm. PSH48.74 Fits 12 mobility scooters. Width: 7350 mm. PSH48.86 Fits 14 mobility scooters. Width: 8550 mm. PSH48.98 Fits 16 mobility scooters. Width: 9750 mm.
Cladding/ Finish	See 'Options' below and insert requirements.
Door configuration	Left hand hung Right hand hung
Locking	Latch and code secure lock Mechanical code lock with code secured entrance. Latch and eurocylinder lock Self-latching daybolt. Eurocylinder key-operated self-latching bolt lock.
Accessories/ Other requirements	Not required Automated entry and opening Consult manufacturer for details and insert requirements.

Standard product features

Height:

2260 mm.

Depth:

PSH30: 3050 mm.

PSH48: 4850 mm.

Product Options

Cladding/ Finish:

- Timber (ForestPanel™):

ForestPanel™ TG: FSC European redwood with light green finish and 125 mm TGV planks.

ForestPanel™ TG Colour: FSC European redwood in a choice of coloured woodstains (Classic selection), and 125 mm TGV planks. Consult manufacturer and insert colour requirements.

ForestPanel™ TG FR: FSC European redwood with a light green external finish and 125 mm TGV planks. Includes fireboard MgO core internal liner.

- SSAB steel panels (Firenze™):

Firenze™ Anthracite: Plastisol P200® coating, finished in anthracite grey.

Firenze™ Anthracite FR: Plastisol P200® coating, finished in anthracite grey. Includes fireboard MgO core internal liner.

Firenze™ Black: Plastisol P200® coating, finished in black.

Firenze™ Black FR: Plastisol P200® coating, finished in black. Includes fireboard MgO core internal liner.

Firenze™ Blue FR: Plastisol P200® coating, finished in cornflower blue. Includes fireboard MgO core internal liner.

Firenze™ Green FR: Plastisol P200® coating, finished in juniper green. Includes fireboard MgO core internal liner.

Firenze™ Grey: Plastisol P200® coating, finished in goosewing grey.

Firenze™ Grey FR: Plastisol P200® coating, finished in goosewing grey. Includes fireboard MgO core internal liner.

Firenze™ Mushroom FR: Plastisol P200® coating, finished in mushroom. Includes fireboard MgO core internal liner.

- Galvanized steel panels (Firenze™):

Firenze™ Design Wrap: SAV graphic design finish. Custom design. Consult manufacturer and insert requirements.

Firenze™ Design Wrap FR: SAV graphic design finish. Custom design. Includes fireboard MgO core internal liner. Consult manufacturer and insert requirements.

- High density polyethylene (HDPE - Tuffplas™):
