PSH 48 Mobility Scooter Charging Hub
Compare variants

PSH 48 Mobility Scooter Charging Hub

Verified by manufacturer 3 months ago

PSH 48.26

metroSTOR® (a brand of Streetspace Group) Variant:
Third party certifications:
  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • ISO 14001:2015

    ISO 14001:2015

    Certificate type

  • ISO 9001:2015

    ISO 9001:2015

    Certificate type

  • smas WORKSAFE

    smas WORKSAFE

    Certificate type

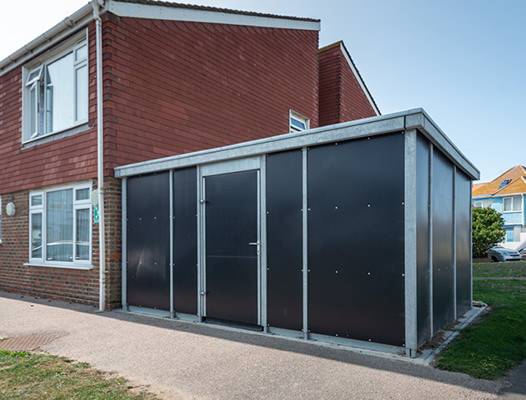

metroSTOR PSH Mobility Scooter Hub Buildings provide safe storage and charging for multiple mobility scooters.

Jump to:
01227 200404 https://streetspacegroup.co.uk/metrostor/

Application

For the storage and charging of mobility scooters in a single accessible location.

Description

The PSH 48 mobility scooter charging hub accommodates two rows of mobility scooters either side of a central aisle, with each space having a designated charging point.


Features and benefits:

  • metroSTOR PSH Hub Building packages include the steel structure, external cladding, rainwater systems, internal battery charging, lighting and access control.
  • Two structure widths and fourteen pre-engineered configurations are designed to provide safe storage and charging for the optimum number of mobility scooters within the available site footprint.
  • Bespoke Hub Building formats can be accommodated.
  • metroSTOR PSH structures are designed and manufactured in the UK by Streetspace under BS EN 9001:2015, BS EN 9001:2015 and BS EN 1090 accredited processes.


General information

Color

Black

Brown

Green

Grey

Finish

Powder-coated

Galvanized

Material

Steel

Timber

Shape

Rectangle

Length

5129 mm

Width

2711 mm

3910 mm

5108 mm

6311 mm

7512 mm

Show more

Height

2332 mm

WarrantyDescription

Five year

Each metroSTOR® product comes with a five year replacement parts warranty.

Uniclass

Pr_20_65_78_15 Composite panelled sheltersPrimary
Ss_20_10_70_84 Storage shelter systems

CAWS

Q50/216 Scooter racks

B91/395 Storage unit

Product range

Mobility Scooter Storage

Specification data - Composite panelled shelters

Shelter description

Scooter storage and charging hub.

Dimensions

-

Plan size

(Width x depth):

2711 x 5129 mm.

Height

2332 mm.

Cladding

ForestPanel TGV FR.

  • Sustainably sourced European redwood TGV plank.
  • Pressure-treated preservative (green).
  • Non-combustible fire protection board liner.

ForestPanel SW TGV.

  • Sustainably sourced European redwood TGV plank.
  • Pressure-treated preservative (green).

Firenze Anthracite Grey.

  • Pre-coated steel.
  • SSAB Greencoat Pural BT Finish.

Firenze Anthracite Grey FR.

  • Non-combustible fire protection board liner.

Firenze Nordic Night Black.

  • Pre-coated steel.
  • SSAB Greencoat Pural BT Finish.

Firenze Nordic Night Black FR.

  • Non-combustible fire protection board liner.

Firenze Leaf Green.

  • Pre-coated steel.
  • SSAB Greencoat Pural BT Finish.

Firenze Leaf Green FR

  • Non-combustible fire protection board liner.

Firenze Walnut Brown.

  • Pre-coated steel.
  • SSAB Greencoat Pural BT Finish.

Firenze Walnut Brown FR.

  • Non-combustible fire protection board liner.

Openings

-

Doors

Left hand hung.

Right hand hung.

Integral services

Electrical panels containing IP rated sockets for chargers and PIR activated LED interior lighting.

Accessories

Not required.

Automated entry and opening.

Consult manufacturer for details and insert requirements.

Charger shelf.

External lighting.

Locking

metroSTOR products are available with a range of robust locking options to suit the specific operational requirements. Manufactured in stainless steel with aluminium external handles and options for internal release.

Latch and code secure lock.

Mechanical code lock with code secured entrance.

Latch and euro-cylinder lock.

Self-latching daybolt. Euro-cylinder key-operated self-latching bolt lock.

Latch+RFID lock.

Storage

Four mobility scooters.

Environmental information

Country of product manufacture

United Kingdom

Recyclability

All non-production steel is 100% recycled and separated at source from fabrication and sheet metal processes. All timber cladding products are sustainably sourced and certified with non-production material separated at source for 100% recycling.

Digital objects

Platform Compatible Version Certified to
Revit
-

1

2.1
Download now from NBS National BIM Library

Literature

PSH 48.26 Data Sheets

PSH 48.26 Data Sheets

PSH 48.38 Data Sheets

PSH 48.38 Data Sheets

PSH 48.50 Data Sheets

PSH 48.50 Data Sheets

PSH 48.62 Data Sheets

PSH 48.62 Data Sheets

PSH 48.74 Data Sheets

PSH 48.74 Data Sheets

PSH 48.86 Data Sheets

PSH 48.86 Data Sheets

PSH 48.98 Data Sheets

PSH 48.98 Data Sheets

Third party certifications

Alcumus SafeContractor

Alcumus SafeContractor

Alcumus SafeContractor

CHAS

CHAS

CHAS Advanced

Constructionline

Constructionline

Constructline Gold Member

ISO 14001:2015

ISO 14001:2015

ISO 14001:2015 Environmental Management System

ISO 9001:2015

ISO 9001:2015

ISO 9001:2015 Quality Management System

smas WORKSAFE

smas WORKSAFE

smas WORKSAFE
