PSA MOB PF2 PS/SPU - Non finished Edge Banded Panel
Description

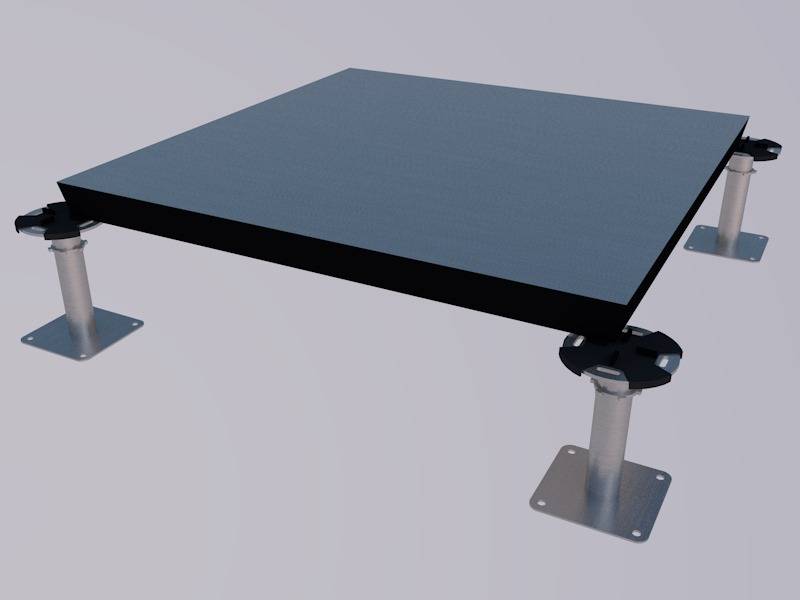

BE systems feature loose lay flooring panels that are fully tested to the requirements  of PSA MOB PS2/SPU.

BE loose lay panel systems are manufactured with a high performance particle board core.

Top and bottom surfaces are laminated with galvanised steel sheets before a surface finish of either Wood, Ceramic, HPL or Vinyl is bonded to the top and trimmed to fit flush with the panel sides.

Panels are skilfully engineered with a full depth edge band to protect the surface finish.

The system provides full electrical continuity and static dispersion where required and can also offer an oversized panel 900 x 600mm in both Medium and Heavy Grade.

BEM: MEDIUM GRADE, 8 kN/m2 UDL and BEH/BEX: HEAVY GRADE, 12 kN/m2 UDL. are both ideal for General office, computer, comms and printer rooms.

PSA MOB PF2 PS/SPU - Non finished Edge Banded Panel
- PSA BEM600 Medium Grade Edge Banded Panel
- PSA BEH600 Heavy Grade Edge Banded Panel
- PSA BEX600 Extra Heavy Grade Edge Banded Panel
- PSA BEM69 Medium Grade Oversize Edge Banded Panel
- PSA BEH69 Heavy Grade Oversize Edge Banded Panel

General information

Color

Natural

Features

FSC® certified, designed to be loose laid with complete electrical continuity, high resistance to damage

Material

High density particle board core with steel top and bottom sheet

Shape

Rectangular

Square

Size

600 x 900 x 31 mm

600 x 900 x 39 mm

600 x 600 x 46 mm

Uniclass 2015

Pr_25_71_42_70 Raised access floor panelsPrimary
Specification data - Raised access floor panels
Digital objects
Platform Compatible Version Certified to
Revit
-

2

2.1
IFC
-

2

2.1
Download now from NBS National BIM Library
