This product is no longer available

PSA MOB PF2 PS/SPU- Heavy Grade Vinyl Edge Banded Panel
Description

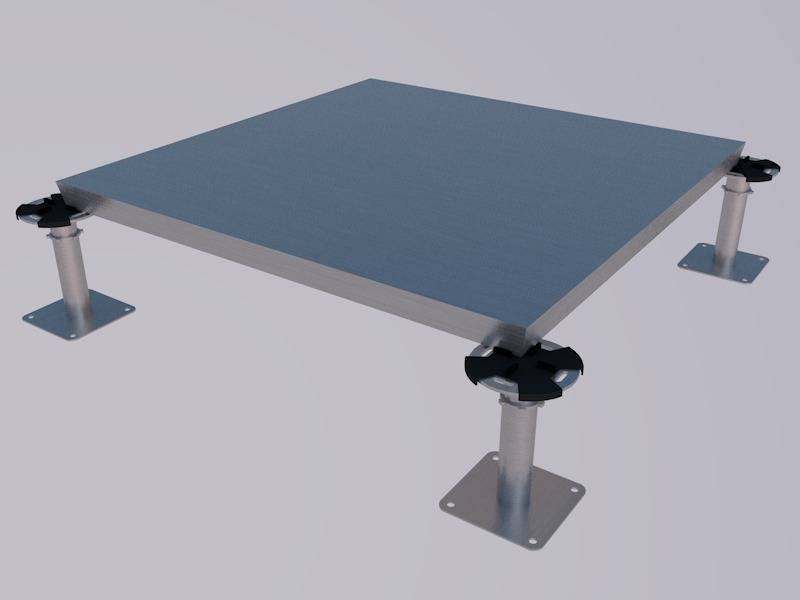

The fully encapsulated galvanised steel case which is bonded to the particle board to create a 600mm2 gravity lay floor panel.

General information
Color

Natural

Features

FSC® certified, designed to be loose laid with complete electrical continuity, high resistance to damage

Material

High density particle board core with steel top and bottom sheet and vinyl covering

High density particle board core with steel top and bottom sheet

Shape

Square

Rectangular

Size

600 x 600 x 42 mm

600 x 900 x 39 mm

600 x 900 x 42 mm

Uniclass 2015
Pr_25_71_42_71 Raised access floor panels with finishPrimary
Specification data - Raised access floor panels with finish
ProductInformation

https://www.bathgateflooring.co.uk/wp-content/uploads/2019/06/BEH600V.pdf

https://www.bathgateflooring.co.uk/wp-content/uploads/2019/06/BEH69.pdf

https://www.bathgateflooring.co.uk/wp-content/uploads/2019/06/BEH69V.pdf

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
- 1 2.1
Download now from NBS National BIM Library
