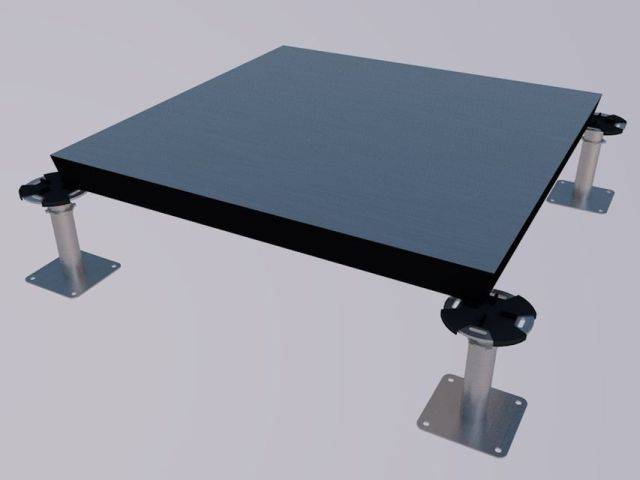

PSA Extra Heavy Grade Edge Banded Panel - Raised Access Floor Panel
NBS BIM object standard Verified by manufacturer 5 days ago
QA Certificate
Certificate type
Access Flooring, Extra Heavy Grade, gravity-laid, steel-encapsulated panel, with vinyl covering and edge banding.
Application
Internal, Commercial, Office raised access floor panel.
Description
Raised Access Flooring, Extra Heavy Grade, gravity-laid panel, consisting of a high-grade, FSC® certified, 44 mm thick, high-density particle board core in a sandwich construction, with a steel top and bottom sheet. A full-depth acrylonitrile butadiene styrene (ABS) edge band is then applied, creating a fully encapsulated 600 mm² panel.
The panel is fully tested by an independent, UKAS-accredited laboratory to the PSA MOB PF2 PS/SPU March 1992 Extra Heavy Grade specification, and is certified as being fully compliant.
Features and benefits:
- FSC® certified.
- Designed to be loose-laid with complete electrical continuity.
- High resistance to damage.
- Can be perforated for airflow.
- Manufactured in the UK.
General information
ColorColour is dependent on the bonded vinyl finish chosen. | - |
Finish | Galvanized |
Material | Steel Top lid and bottom tray. Acrylonitrile butadiene styrene (ABS) Particleboard Vinyl |
Shape | Square |
Length | 600 mm |
Width | 600 mm |
Height | 46 mm |
WarrantyDescription | 25 year |
Uniclass | |
CAWS | K41/130 Raised access floor K41/130 Raised access floor K41/315 Floor panels K41/315 Floor panels |
Specification data - Raised access floor panels
Casing | - |
Material | Steel. |
Factory finishes | Galvanized. |
Core | HD particleboard. |
Edging | Full-depth acrylonitrile butadiene styrene (ABS) edge band. |
Panel sizeWidth x length x height. | 600 x 600 x 46 mm. |
Dimensional deviations | To MOB PF2 PS/SPU.Extra heavy grade. |
Weight (maximum) | 55 kg/m². |
Panel fixing | Gravity laid. |
Perforations | Not required. Required. Insert requirements. |
Colour | Natural. |
Loading | Load over: 11 kN (300 x 300 mm); Point load: 4.5 kN (25 x 25 mm); Working load safety factor: 3x; Uniform distributed load: >12 kN/m². |
SurfaceSpreadOfFlame | Class 0. |
Environmental information
Country of product manufacture | United Kingdom |
Recyclability | 100 |
Digital objects
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 Revit | - | 1 | 2.1 |
 IFC | - | 1 | 2.1 |
Third party certifications
QA Certificate
FSC®: Certified
