ProTherm RockFace A2 SL Soffit Insulation

Verified by manufacturer 3 months ago

Radmat Building Products Ltd Third party certifications:
  • BM Trada

    Certificate type

Non-combustible soffit insulation board.

Jump to:
+44 (0)1858 410372 Website

Application

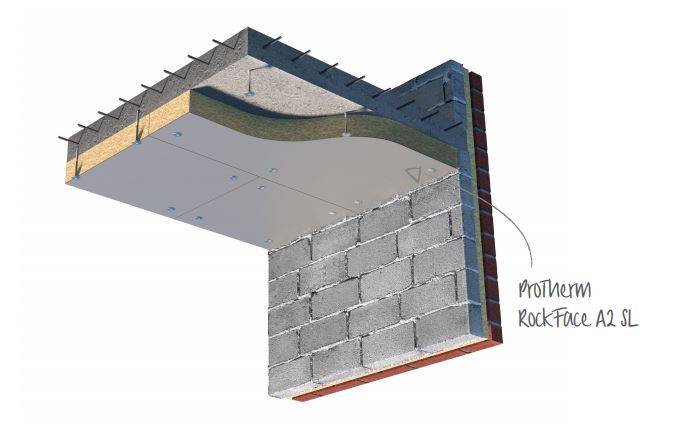

RockFace A2 SL can be mechanically fastened to:

  • The underside of a profiled steel, flat steel or concrete soffit on buildings over 18 m providing the structure meets the performance requirements of BS 9991:2015, Approved Documents B and BS 8759:2020.
  • Timber battens on buildings under 18 m providing the structure meets the performance requirements of BS9991:2015, Approved Documents B and BS 8759:2020.

Description

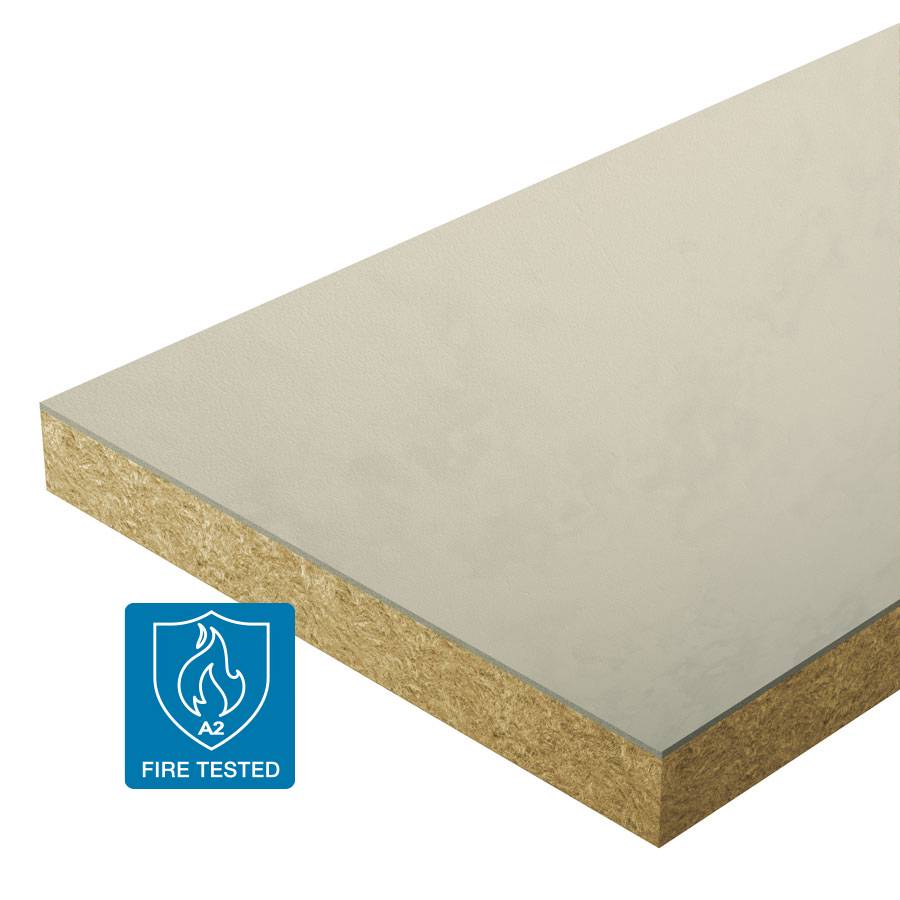

ProTherm RockFace A2 SL is a non-combustible soffit insulation board designed to insulate semi exposed concrete soffits.


Features and benefits:

  • Classified Euroclass A2-s1,d0 to BS EN 13501-1:2018 by WarringtonFire under classification report no. 19808F dated 10/10/2019.
  • Manufactured with non-combustible stone wool it will not develop smoke or promote flame spread, even when directly exposed to fire.
  • The stonewool is factory laminated to a 6 mm thick weather resistant high impact facing board.
  • As an example of thermal performance 0.025 W/m² K can be achieved if a 136 mm (O/A) panel is fixed to a 150 mm dense concrete slab in a semi-exposed application.
  • Available in a range of thicknesses.
  • Available in a range of thicknesses, see declared performance table for available thickness.
  • ProTherm RockFace A2 SL has a Zero Ozone Depletion Potential (ODP), a Global Warming Potential (GWP).
  • Certificates: ISO 9001@2008 Quality Management System, ISO 14001 :2004 Environmental Management System, EPD as per ISO 14025 and EN 15804.

For a comprehensive NBS J31 specification contact Radmat Building Products.


General information

Color

Grey

Finish

Unfinished

Material

Stonewool

Shape

Rectangle

Length

2000 mm

Width

600 mm

Height

56 mm

116 mm

136 mm

Uniclass

Pr_25_57_06_50 Mineral fibre slab insulationPrimary

CAWS

P10/185 Soffit insulation

Specification data - Mineral fibre slab insulation

Standard

Test standard to EN ISO 1716: 2010 and 13823: 2010+A1:2014. Classified to BS EN 13501-1:2018.

Thermal conductivity (maximum)

0.038 W/m·K.

Guidance for specification option:

Facing = 0.30 W/m·K.

Manufacturer guidance

Stone wool insulation:

Thickness (minimum)

56 mm.

Guidance for specification option:

50 mm.

116 mm.

Guidance for specification option:

110 mm.

136 mm.

Guidance for specification option:

130 mm.

Manufacturer guidance

Overall thickness specified for main value, Stone wool insulation thickness alone in respective guidance (allows 6 mm for the facing board).

Density

1320 kg/m³.

Facing

High performance, heavy duty, exterior grade fibre-cement sheet with grey skin.

Edges

Square.

Fire performance

A2-s1, d0.

Guidance for specification option:

Classified Euroclass A2-s1,d0 to BS EN13501-1:2108 by WarringtonFire under classification report no. 19808F dated 10 10 2019.

  • A2 = limited combustibility.
  • s1 (smoke) quantity/speed of emission = absent or weak.
  • d0 = no dripping.

Manufacturer guidance

Component ratings = A1.

Ozone depletion potential

Zero.

Global warming potential

<5.

Green guide rating

A.

Length x width

2000 x 600 mm.

Guidance for specification option:

Smaller boards 1000 x 600 mm are available for thicknesses above 100 mm.

Weight

18/26.5/29.5 kg.

Manufacturer guidance

(board/ m2 ) RF56/ RF116/ RF136:

Flexural strength

18 MPa.

Manufacturer guidance

(average Parallel and Transverse)

Compressive Strength (at 10% deformation)

30 kPa.

Manufacturer guidance

BS EN 826

Nominal density

110 kg/m³.

Manufacturer guidance

Stone wool only - BS EN 1602:

Water absorption

<2%.

Manufacturer guidance

by Immersion (BS 2972):

Delamination

13 kPa.

Installation

Manufacturer's standard.

Guidance for specification option:

RockFace A2 SL should be attached with non-combustible fasteners and washers appropriate to the type of substrate being fastened into. Fixing washers should be a minimum 45 mm diameter. Fasteners and washers should be installed so as to prevent RockFace A2 SL panels becoming dislodged by wind or maintenance work. Consult your chosen fixing supplier for recommendations.


When fixing directly to a steel or concrete soffit RockFace A2 SL boards fasteners should be positioned a minimum of 50 mm in from the edges of the board, at 450 mm centres across the width and at 500 mm centres along the length (achieving 8 fasteners per board).


The minimum penetration of the fasteners into the substrate must comply with the fastener manufacturer recommendations. A space of 0.5 to 2 mm should be left between each board to allow for thermal expansion.


Where an uneven surface exists or there are services, and subject to the balconies not being on a building over 18 m in height, timber battens may be used. Minimum 50 x 25 mm treated timber battens should installed 75mm in from all boards edges with additional cross battens positioned to allow the for central zone fixings at 450 mm centres across the width and at 500 mm centres along the

length (achieving 8 fasteners per board). A space of 0.5 to 2 mm should be left between each board to allow for thermal expansion.


At perimeters the RockFace A2 SL must either abut a vertical surface (a space of 0.5 to 2 mm should be left between each board to allow for thermal expansion) or be closed off with a suitable cover flashing.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

5 kg CO₂ eq/unit

Self declared

Manufacturer guidance

k.g.CO2e=

Recyclability

50

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

60 %

Third party certifications

BM Trada

BM Trada

Short Form Classification Report No. 19808F
