ProTherm FOAMGLAS® T3+ Tapered (Slab) Roof Insulation
Verified by manufacturer 4 months ago
EPD
Certificate type

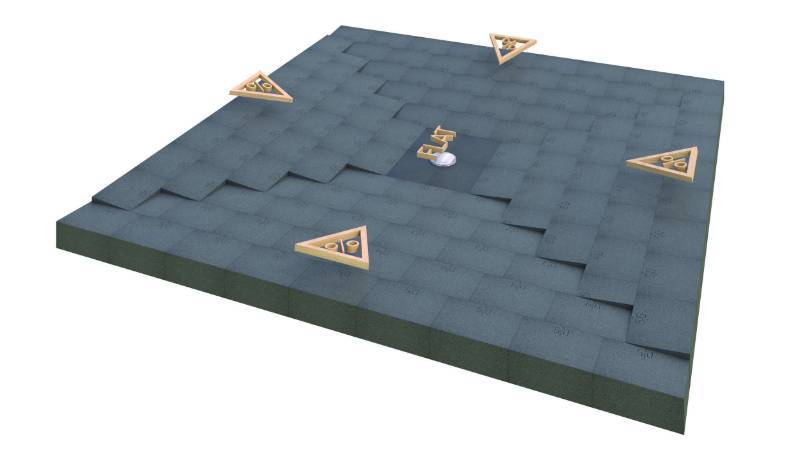

ProTherm FOAMGLAS® T3+ Tapered (Slab) insulation is a non-combustible cellular glass foam insulation board manufactured to create falls on a flat roof area and facilitate positive drainage.
Application
- Built-up warm roof applications
- Radmat "Hybrid" applications
- Terraces
- Podia
- Balconies
Should be fully-bonded in either:
- EshaPur 95/25 Oxidised Bitumen
- PC®58 Cold-Applied Bitumen Adhesive
These applications do not require the use of a carrier membrane or Vapour Control Layer.
For non foot-trafficked applications the product can also be bonded with Insta-Stik Roofing Adhesive. A suitable carrier or joint strip will be required for these applications.
Boards are not weather resistant and must not be exposed to water. Product must be used in a system which completely encapsulates the insulation to prevent it from damage from freeze-thaw events, which will otherwise result in product failure.
Euroclass A1 makes the product truly non-combustible and suitable for use on all types of Specified Attachments where the Approved Document B ban on combustible materials was introduced in 2018.
Faced boards, such as READY, G1 or ROOF boards are Euroclass E and not suitable for application on Specified Attachments within Relevant Buildings such as balconies, canopies or terraces with an overhanging feature.
Description

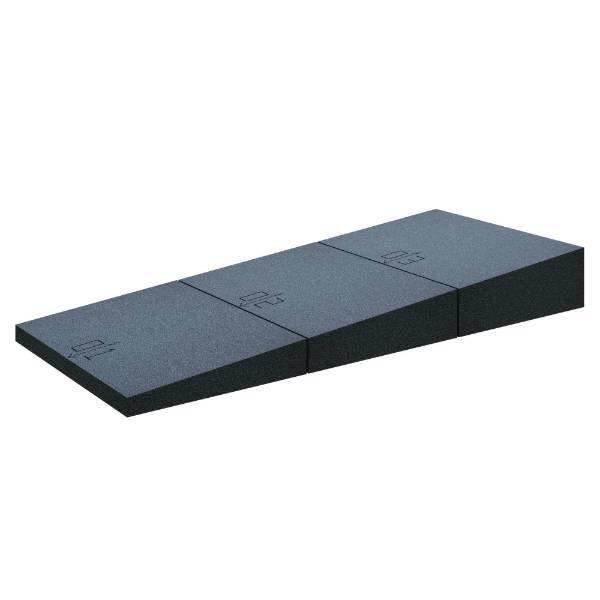

600 x 450 mm boards with a taper indicated by a factory applied stamp in the top surface. Boards are un-faced and therefore certified as non-combustible.
Features and benefits:
- Euroclass A1 non-combustible in accordance with BS-EN13501-1:2007.
- High compressive strength >500 kPa.
- Thermal Conductivity: λD ≤ 0.036W/(m·K)
- Manufactured from recycled materials (>60%).
- Impervious to water vapour.
General information
Color | Black |
Finish | Unfinished |
Material | Cellular glass |
Shape | Square |
Length | 600 mm |
Width | 450 mm |
Height | 50 mm 60 mm 70 mm 80 mm 90 mm |
Uniclass | |
CAWS | J42/430 Warm deck roof insulation J41/430 Warm deck roof insulation J41/26 Thermal insulation J31/26 Thermal insulation J42/27 Thermal insulation J31/337 Cellular glass insulation |
Specification data - Cellular glass insulation boards
Reaction to fire | Euroclass A1 non-combustible in accordance with BS-EN13501-1:2007. |
Third-party product certification | Environmental Product Declaration (ISO 14025 and EN 15804): EPD-PCE-20150042-IBA1-DE. BRE Green Guide Rating A+. |
Thermal conductivity (maximum) | λD ≤ 0.036W/(m·K). |
Thickness | 50 mm.60 mm.70 mm.80 mm.90 mm.100 mm.110 mm.120 mm.130 mm.140 mm.150 mm.160 mm.170 mm.180 mm.190 mm.200 mm. |
Compressive strength (minimum) | >500 kPa. |
Density | 100 kg/m³. |
Recycled content | >60%. |
Facing | None. |
Edges | Tapered. |
Size: | 600 x 450 mm |
Sustainability data
Country of material origin | Europe |
Country of product manufacture | Europe |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 60 % |
Third party certifications
Third party certifications
EPD
FOAMGLAS T3+ Environmental Product Declaration
Literature

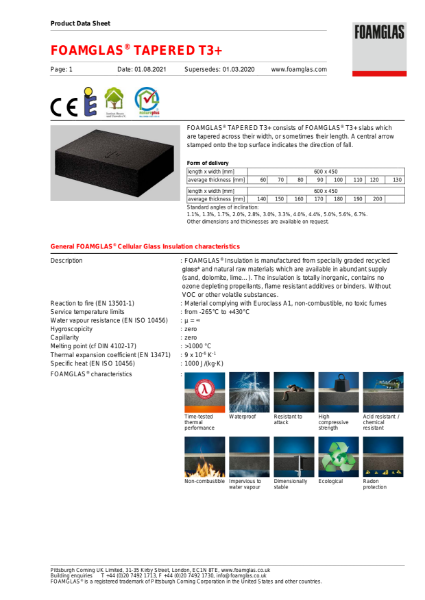

FOAMGLAS® T3+ Tapered Product Data Sheet
