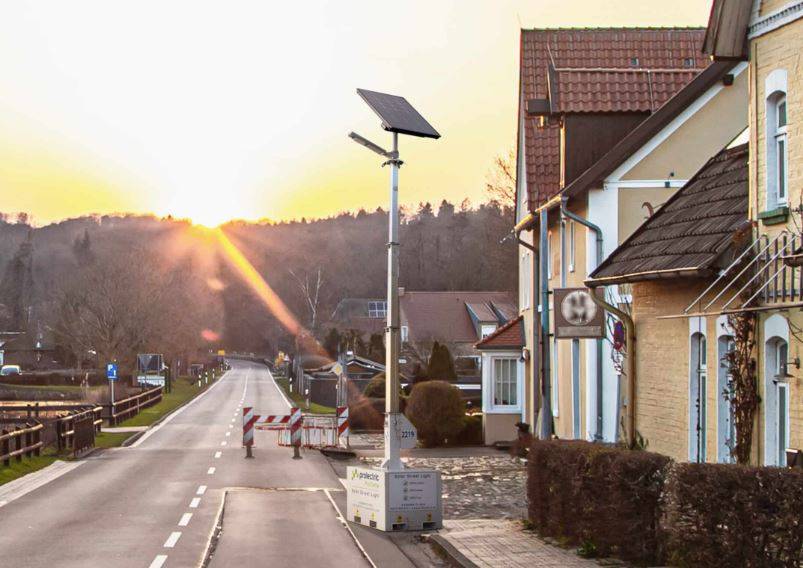

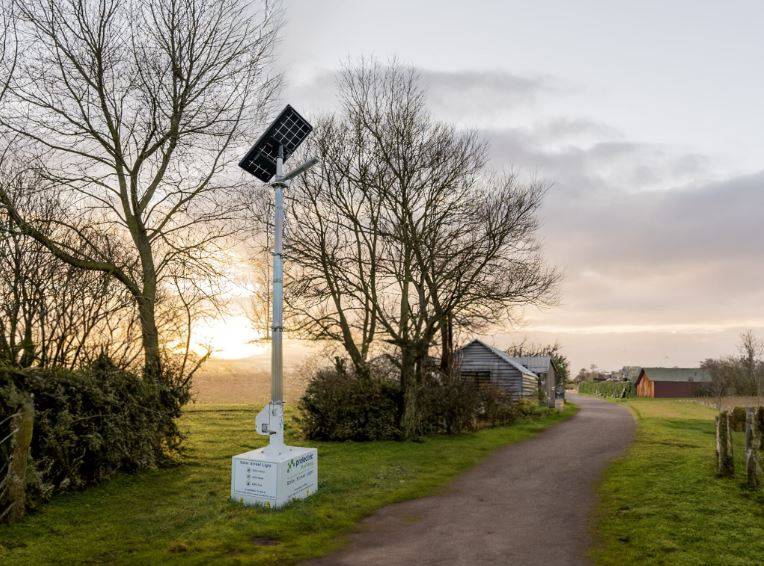

A powerful, solar powered light mounted on a steel-encased concrete base with a 5.4 m telescopic mast.

Jump to:
+44 01275 400 570 Website

Application

With a 150 W solar panel and a 20 W LED lamp, the ProTemp is designed for busy areas with higher traffic, including walkways, car parks, work sites and roads.

Description

A powerful, solar powered light mounted on a 1189 kg steel-encased concrete base with a 5.4 m telescopic mast. As a standalone unit, it can be easily transported to site and moved into position with a forklift.


Prolectric’s solar lights offer a flexible alternative to fuel generator lighting, with clean, silent, low-carbon operation that requires minimal maintenance. Can be used as a reliable alternative to mains-power lighting.


Every ProTemp is fitted with a smart PIR to optimize power usage in the unit. The motion detection system automatically regulates the light source from full bright to dim mode when the area is entered by a vehicle or person to increase battery autonomy and minimize light pollution.


Features and benefits:

  • Integrated charging unit constantly monitors the state of the batteries.
  • 3-PIR Sensors offering detection for a wider range of motion.
  • Low maintenance.
  • Quick installation.
  • Up to 2000 battery recharge cycles.
  • No fumes or greenhouse gas emissions.
  • No fuel costs, spills or refueling labour costs.
  • Telescopic 5.4 m wind-up arm for easy setup of telescopic mast.

General information

Color

Silver

Material

Steel

Concrete

Shape

Other

Length

1000 mm

Width

750 mm

Height

5400 mm

Warranty description

Five year

Uniclass

Pr_80_77_48_70 Renewable powered lighting columnsPrimary
Pr_80_77_48_80 Steel lighting columns

CAWS

V90/575 Lighting columns

Specification data - Renewable powered lighting columns

Description

Solar powered light mounted on a steel-encased concrete base.

Manufacturer

Prolectric.

Format

Steel encased concrete base, with telescopic arm.

Height (nominal)

5.4 m.

Guidance for specification option:

2 m stowed height for when the product is being transported to site.

Base

-

Type

Steel-encased concrete.

Corrosion protection

-

Area A

Silver coated.

Light source

-

Wattage

20 W.

Guidance for specification option:

Light range:

  • 20 lux to 32 m².
  • 10 lux to 106 m².
  • 5 lux to 194 m².
  • 1 lux to 468 m².
  • 0.4 lux to 687 m².

Charge controller

-

User interface

-

Type

LED indicators.

Battery

-

Type

Lithium.

Guidance for specification option:

  • LiFePO4 lithium battery.
  • 2x LiFePO4.

Capacity

64 Ah.

Guidance for specification option:

(820 Wh).

Accessories

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Solar panels

150 W PV peak.

Dimensions

1000 x 750 mm.

Manufacturer guidance

H x L x W.

Net weight

1189 kg.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Manufacturing plant location

Material

Steel
Concrete

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

50 %

Expected Life

25 year

Product certifications

Certificate of Compliance

Certificate of Compliance

Safe Contractor

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

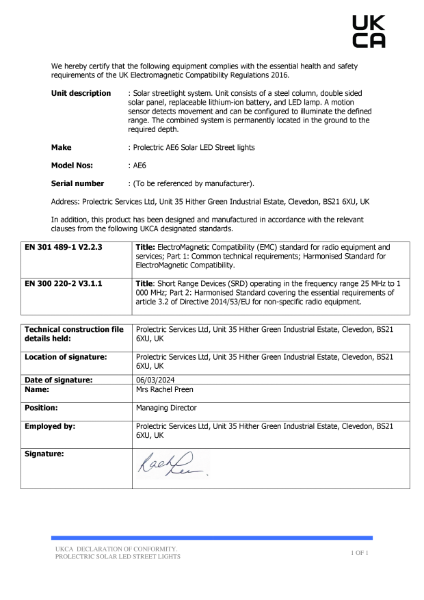

UKCA Declaration of Conformity - AE6

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

UKCA Declaration of Conformity - AE3

Literature

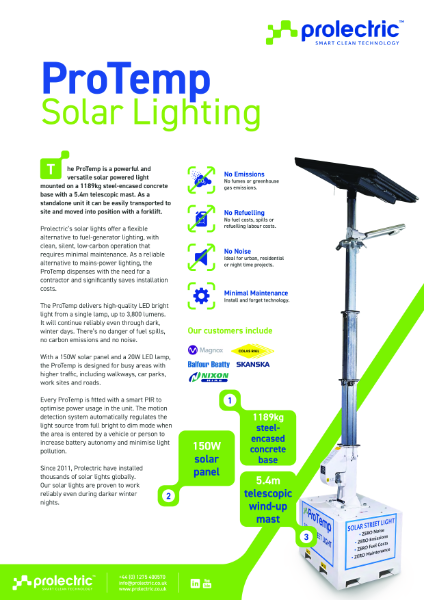

ProTemp Solar Lighting Data Sheet
